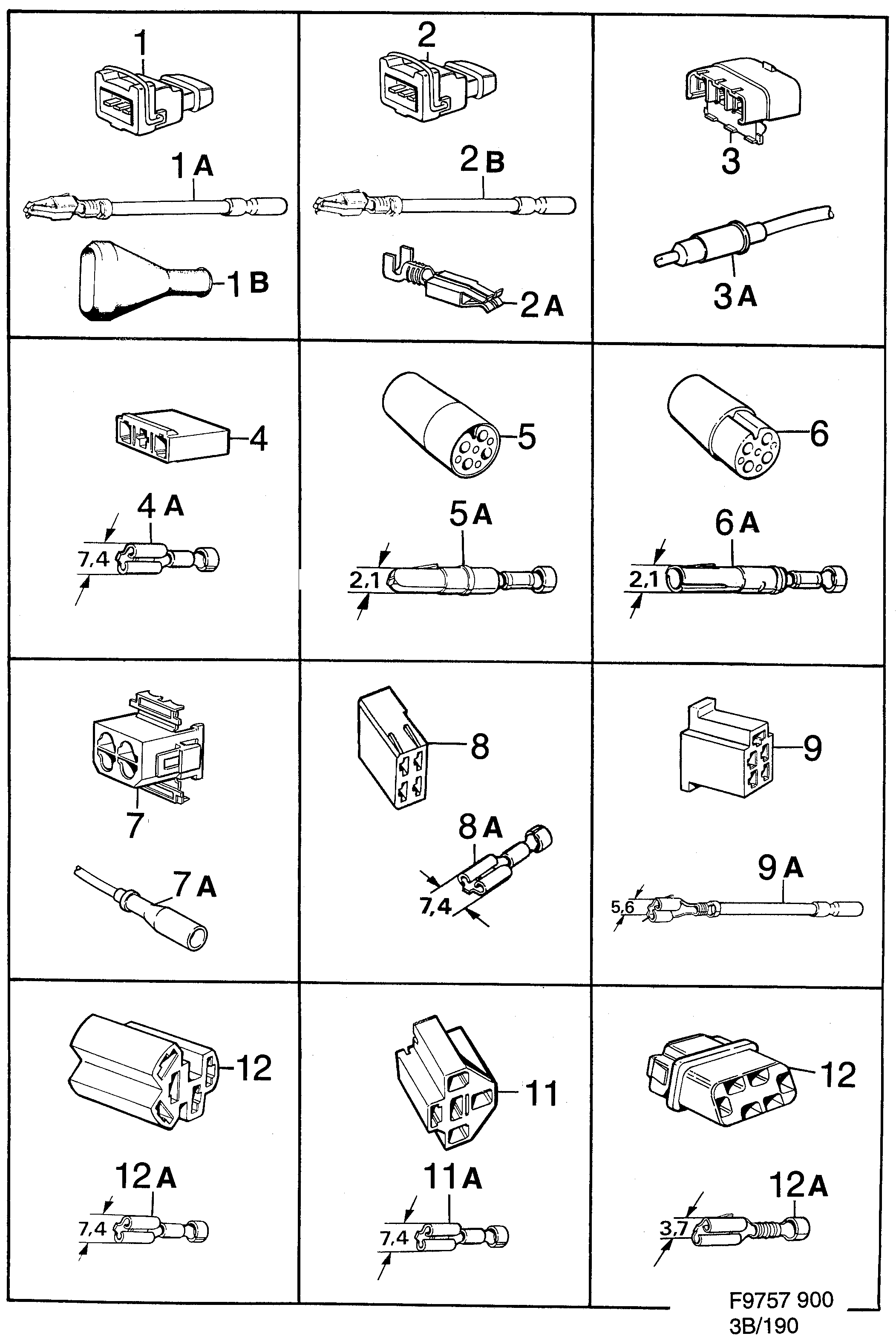

190: Electrical, connector - Wiring and fuses - Contact housing etc

(1986) | For 900 (1986)

Pos.	Part No.	Description	Usage	Qty
1	8593907 Contact housing 3-pin, female \| THROTTLE ANGLE SENSOR THROTTLE SWITCH	Contact housing	3-pin, female THROTTLE ANGLE SENSOR THROTTLE SWITCH	X
1A	9120668 12789796 Cable terminal AREA,0,75-1,5 MM2	Cable terminal	AREA,0,75-1,5 MM2	X
1B	8522617 Cable terminal AREA,1,5 MM2	Cable terminal	AREA,1,5 MM2	X
1C	8571382 Protection	Protection		X
2	8593923 Contact housing 3-pin, female \| IDLE COMPENSATOR	Contact housing	3-pin, female IDLE COMPENSATOR	X
2A	8522617 Cable terminal AREA,1,5 MM2	Cable terminal	AREA,1,5 MM2	X
2B	8579955 Protection	Protection		X
3	9503327 Contact housing 3-pin, female \| JOINT PIECE	Contact housing	3-pin, female JOINT PIECE	X
3A	7874506 Connection	Connection		X
4	9507658 Contact housing 3-pin, female \| JOINT PIECE	Contact housing	3-pin, female JOINT PIECE	X
4A	8560476 Cable terminal AREA,0,9-2,0 MM2	Cable terminal	AREA,0,9-2,0 MM2	X
5	8530081 Contact housing 4-pin, male \| CENTRAL LOCK	Contact housing	4-pin, male CENTRAL LOCK	X
5A	8503161 Cable terminal AREA,0,5-1,0 MM2	Cable terminal	AREA,0,5-1,0 MM2	X
5A	8516817 Cable terminal AREA,0,5-1,0 MM2	Cable terminal	AREA,0,5-1,0 MM2	X
6	8530099 Contact housing 4-pin, female \| ELECTRIC MIRROR,CENTRAL LOCK REAR	Contact housing	4-pin, female ELECTRIC MIRROR,CENTRAL LOCK REAR	X
6A	8522583 Cable terminal AREA,0,8-3,4 MM2	Cable terminal	AREA,0,8-3,4 MM2	X
6A	8503153 Cable terminal AREA,0,5-1,0 MM2	Cable terminal	AREA,0,5-1,0 MM2	X
7	9503434 Contact housing 4-pin, female \| JOINT PIECE,ELECTRICAL MIRROR	Contact housing	4-pin, female JOINT PIECE,ELECTRICAL MIRROR	X
7A	7874498 Connection	Connection		X
8	8521536 Contact housing 4-pin, female \| JOINT PIECE	Contact housing	4-pin, female JOINT PIECE	X
8A	8582454 Cable terminal AREA,0,5-1,5 MM2	Cable terminal	AREA,0,5-1,5 MM2	X
9	8516890 Contact housing 5-pin, female \| WINDSHIELD WIPER MOTOR	Contact housing	5-pin, female WINDSHIELD WIPER MOTOR	X
9A	8522567 Cable terminal AREA,0,25-1,6 MM2	Cable terminal	AREA,0,25-1,6 MM2	X
10	8544397 Contact housing 5-pin, female \| SWITCH HEATING FAN	Contact housing	5-pin, female SWITCH HEATING FAN	X
10A	7972029 Cable terminal AREA,1,0-2,5 MM2	Cable terminal	AREA,1,0-2,5 MM2	X
11	8533697 Contact housing 5-pin, female \| RELAY COOLING FAN RESISTOR HEATING FAN, SPEED CONTROL,TIME RELAY INTERIOR,RELAY WINDOW REGULATOR,RELAY FLASHER,IGNITION LOCK	Contact housing	5-pin, female RELAY COOLING FAN RESISTOR HEATING FAN, SPEED CONTROL,TIME RELAY INTERIOR,RELAY WINDOW REGULATOR,RELAY FLASHER,IGNITION LOCK	X
11A	7971708 Cable terminal AREA,0,5-1,5 MM2	Cable terminal	AREA,0,5-1,5 MM2	X
11A	8582454 Cable terminal AREA,0,5-1,5 MM2	Cable terminal	AREA,0,5-1,5 MM2	X
11A	8582397 Cable terminal AREA,1,2-2,5 MM2	Cable terminal	AREA,1,2-2,5 MM2	X
11A	7968068 Cable terminal AREA,4,0-6,0 MM2	Cable terminal	AREA,4,0-6,0 MM2	X
12	8540569 Contact housing 6-pin, female \| SWITCH ELECTRIC MIRROR	Contact housing	6-pin, female SWITCH ELECTRIC MIRROR	X
12A	8509846 8522575 Cable terminal AREA,0,5-1,4 MM2	Cable terminal	AREA,0,5-1,4 MM2	X
