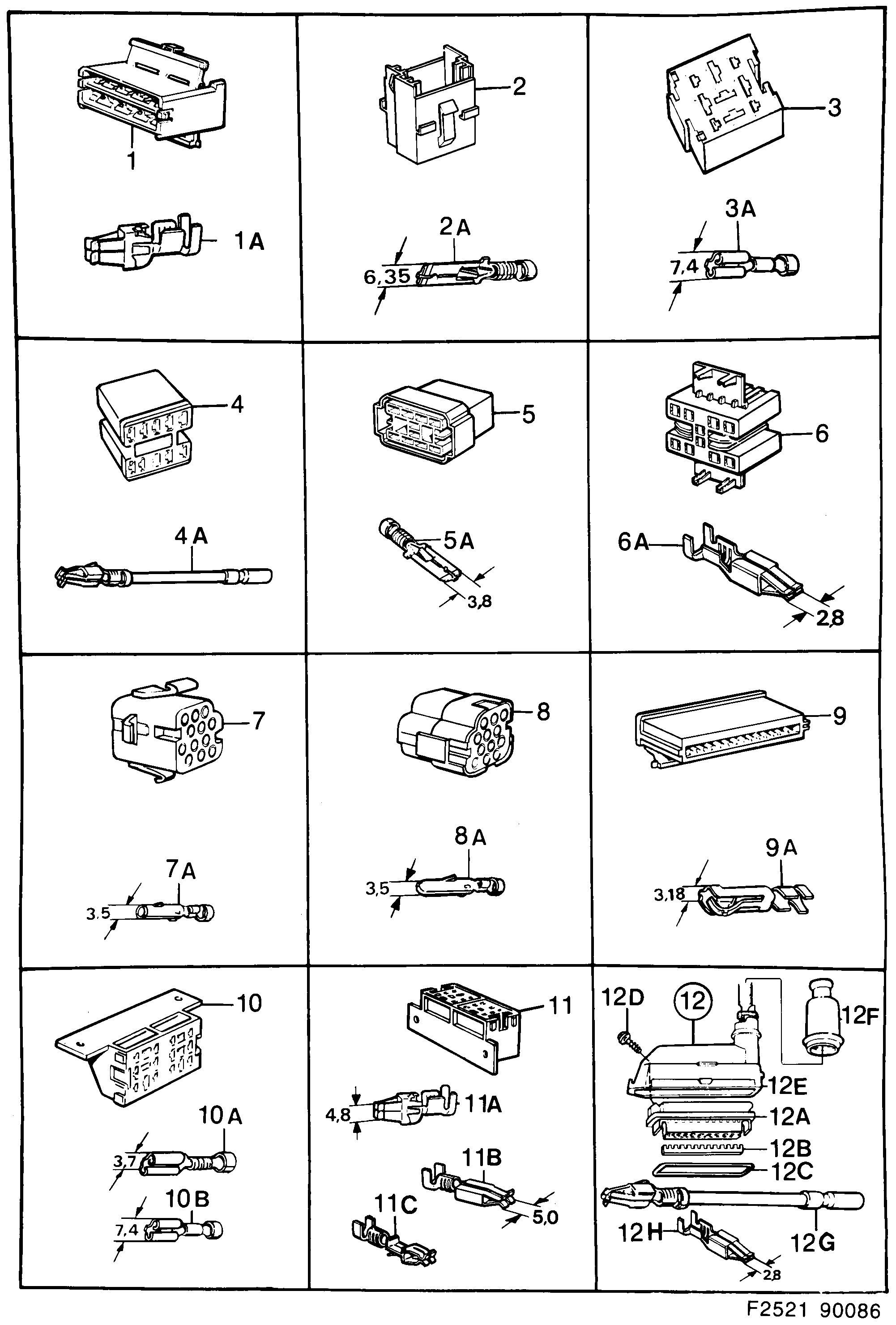

460: Electrical, connector - Wiring and fuses - Contact housing etc
(1987) | For 900 (1987)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8533655 Contact housing 8-pin, female | ELECTRONIC UNIT SPEED CONTROL | X | |
| 1A | 9120783 30520556 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 2 | 9124181 Contact housing 8-pin, male | JOINT PIECE | X | |
| 2A | 8593089 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 3 | 8571390 Bracket 9-pin, female | SPEED RELAY,JOINT PIECE COWL,JOINT PIECE | X | |
| 3A | 7972029 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 4 | 8544371 Connector housing 10-pin, female | JOINT PIECE | X | |
| 4A | 8522617 Cable terminal AREA,1,0-2,6 MM2 | X | |
| 5 | 9122557 Connector housing 10-pin, male | RADIO,JOINT PIECE | X | |
| 5A | 9552126 9552100 Cable terminal AREA,0,50-1,0 MM2 | X | |
| 5A | 9552100 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 6 | 9123399 12764801 Connector housing 10-pin, female | JOINT PIECE,RADIO,REAR DEMIST,SWITCH FLASHER, SWITCH FOG LIGHT | X | |
| 6A | 9508706 12789796 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 6A | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 6A | 9508714 12789796 Cable terminal AREA,0,3-0,6 MM2 | X | |
| 6A | 9508748 12789796 Cable terminal AREA,1,5-2,5 MM2 | X | |
| 7 | 8553497 Connector housing 12-pin, female | COWL | X | |
| 7A | 8544298 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 7A | 8544306 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 8 | 8553505 Contact housing 12-pin, male | COWL | X | |
| 8A | 8544314 8582603 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 8A | 8544322 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 9 | 8544348 Contact housing 14-pin, female | INSTRUMENTS | X | |
| 9A | 8560278 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 10 | 8551665 Contact housing 18-pin, female | FLASHER | X | |
| 10A | 8509846 8522575 Cable terminal AREA,0,5-1,4 MM2 | X | |
| 10B | 7971708 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 10B | 7972029 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 11 | 9124199 Contact housing 18-pin, female | MAIN RELAY,RELAY FUEL PUMP,PASSIVE SEAT BELT, TIME RELAY,FLASHER INTERVAL RELAY,COWL | X | |
| 11A | 9120783 30520556 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 11A | 9120791 30520557 Cable terminal AREA,2,5-4,0 MM2 | X | |
| 11B | 9521972 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 11B | 9120775 30520555 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 11B | 9521980 30520556 Cable terminal AREA,1,5-2,5 MM2 | X | |
| 11C | 9521998 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 11C | 9508706 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 12 | 8586802 Contact housing 25-pin, female | APC | X | |
| 12A | 8587420 Contact housing | 1 | |
| 12B | 8587438 Striker plate Not as separate spare part. | 1 | |
| 12C | 8587453 Seal Not as separate spare part. | 1 | |
| 12D | 8587487 Screw Not as separate spare part. | 1 | |
| 12E | 8587503 Cover Not as separate spare part. | 1 | |
| 12F | 8587511 Rubber protection Not as separate spare part. | 1 | |
| 12G | 8522617 Cable terminal AREA,1,0-2,6 MM2 | X | |
| 12H | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X |
