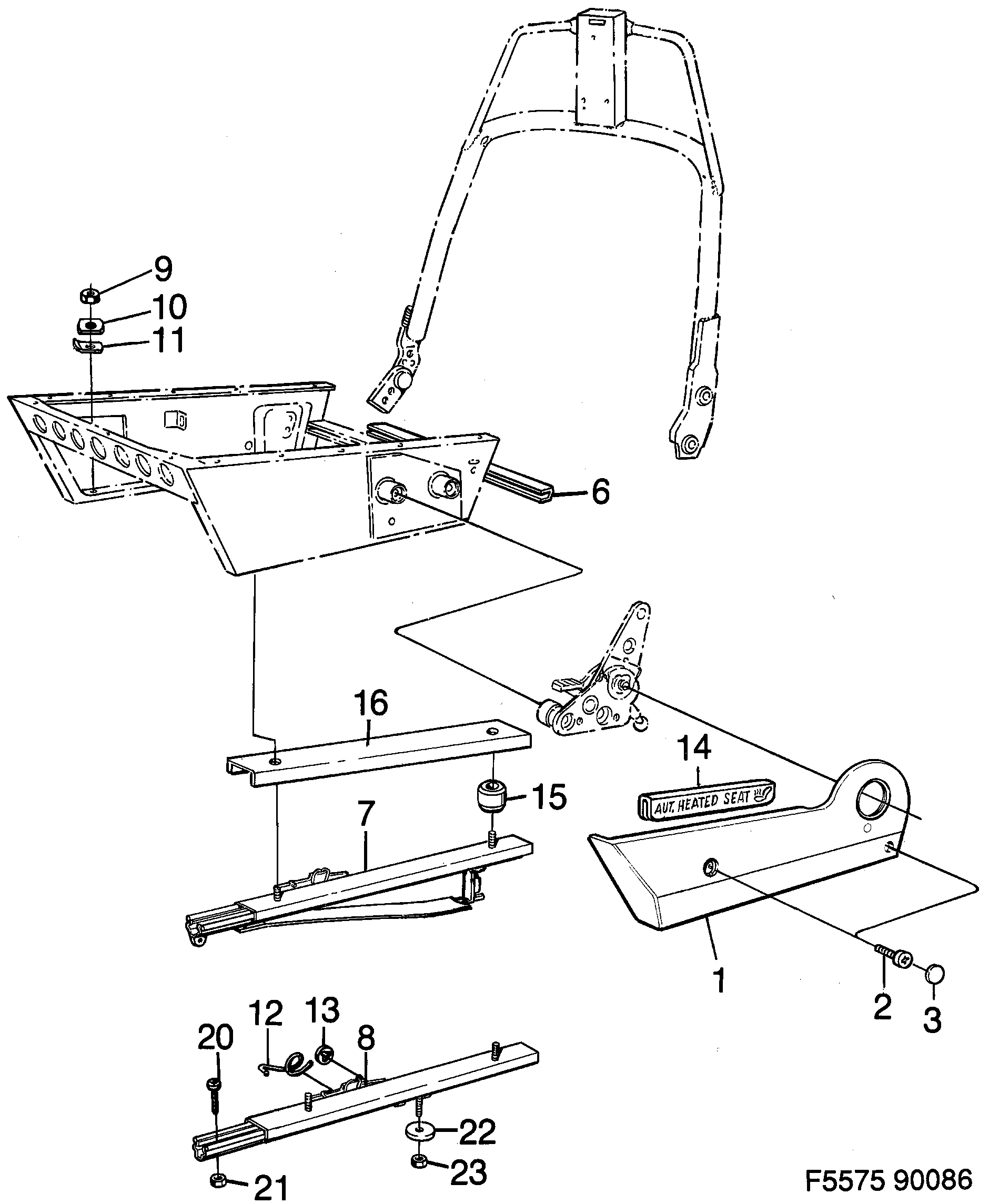

1390: Car body, internal - Other interior equipment - Front seats Part 3
(1986 - 1987) | For 900 (1987)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | |||||
| 1 | 9813296 Cover Yellow | LH | 1 | |||
| 1 | 9813304 Cover Yellow | RH | 1 | |||
| 1 | 9813254 Cover Brown | LH | 1 | |||
| 1 | 9813262 Cover Brown | RH | 1 | |||
| 1 | 9813270 Cover Red | LH | 1 | |||
| 1 | 9813288 Cover Red | RH | 1 | |||
| 1 | 9828161 Cover Blue | LH | 1 | |||
| 1 | 9828179 Cover Blue | RH | 1 | |||
| 1 | 9865775 Cover Black | LH | 1 | |||
| 1 | 9865783 Cover Black | RH | 1 | |||
| 2 | 7970536 92150118 Screw | 2 | |||
| 3 | 9720889 Cover Yellow | 1 | |||
| 3 | 9492471 Cover Brown | 1 | |||
| 3 | 9706466 Cover Red | 1 | |||
| 3 | 9828187 Cover Blue | 1 | |||
| 3 | 9865767 Cover Black | 1 | |||
| 6 | 9404831 Crash pad | 1 | |||
| 7 | 9833476 Seat rail LHD | Driver seat | LH | 1 | |||
| 7 | 9833484 Seat rail LHD | Driver seat | RH | 1 | |||
| 7 | 9833492 Seat rail RHD | Driver seat | LH | 1 | |||
| 7 | 9833500 Seat rail RHD | Driver seat | RH | 1 | |||
| 8 | 9718479 Seat rail Passenger seat | LH | 1 | |||
| 8 | 9718487 Seat rail Passenger seat | RH | 1 | |||
| 9 | 8074106 Nut | 4 | |||
| 10 | 9489758 Washer rear | 2 | |||
| 11 | 9489766 Washer front | 2 | |||
| 12 | 9476169 Spring LH | 1 | |||
| 12 | 9476177 Spring RH | 1 | |||
| 13 | 9476185 Lock washer | 1 | |||
| 14 | 9829409 Sign ''AUTO HEATED SEAT'' | 2 | |||
| 15 | 9473364 Spacer | 4 | |||
| 16 | 9473364 Spacer | 2 | |||
| 20 | 9718131 Hexagonal socket screw Passenger seat | 2 | |||
| 21 | 9849795 Nut Passenger seat | 2 | |||
| 22 | 8939449 Washer Passenger seat | 2 | |||
| 23 | 8074288 11900440 Nut Passenger seat | 2 | |||
