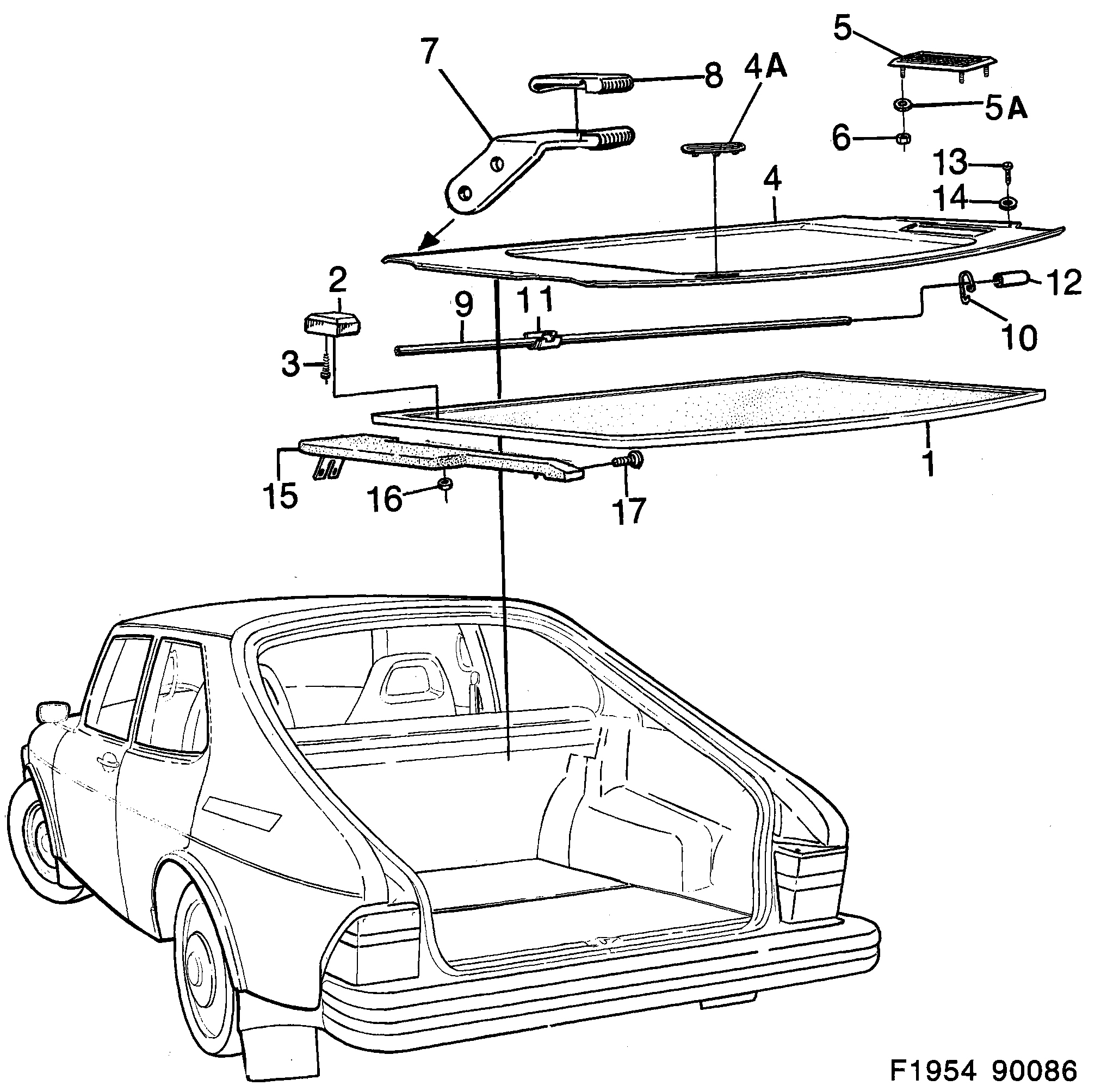

1870: Car body, internal - Other interior equipment - Parcel shelf
(1986 - 1989) | For 900 (1987)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9741802 Rear shelf 1986-1988 | Yellow | 1 | |
| 1 | 9866120 Rear shelf Brown | 1 | |
| 1 | 9741794 Rear shelf 1986-1987 | Red | 1 | |
| 1 | 9849100 Rear shelf 1986-1987 | Blue | 1 | |
| 1 | 9866138 Rear shelf Grey | 1 | |
| 2 | 9741976 Stop Yellow | 2 | |
| 2 | 9741950 Stop Brown | 2 | |
| 2 | 9741968 Stop Red | 2 | |
| 2 | 9742008 Stop 1986-1987 | Blue | 2 | |
| 2 | 9459850 Stop Black | 2 | |
| 3 | 8410961 Screw | 4 | |
| 4 | 9809278 Rear shelf -1987 | Yellow | 1 | |
| 4 | 9618547 Rear shelf 1987-1988 | Yellow With outlet for air vent. | 1 | |
| 4 | 9879701 Rear shelf -1987 | Yellow With loudspeaker | 1 | |
| 4 | 9618380 Rear shelf 1987-1988 | Yellow With loudspeaker With outlet for air vent. | 1 | |
| 4 | 9879651 Rear shelf -1987 | Brown | 1 | |
| 4 | 9618521 Rear shelf 1987- | Brown With outlet for air vent. | 1 | |
| 4 | 9879669 Rear shelf -1987 | Brown With loudspeaker | 1 | |
| 4 | 9618406 Rear shelf 1987- | Brown With loudspeaker With outlet for air vent. | 1 | |
| 4 | 9809260 Rear shelf -1987 | Red | 1 | |
| 4 | 9618539 Rear shelf 1987-1987 | Red With outlet for air vent. | 1 | |
| 4 | 9879685 Rear shelf -1987 | Red With loudspeaker | 1 | |
| 4 | 9618372 Rear shelf 1987-1987 | Red With loudspeaker With outlet for air vent. | 1 | |
| 4 | 9809286 Rear shelf -1987 | Blue | 1 | |
| 4 | 9618554 Rear shelf 1987-1987 | Blue With outlet for air vent. | 1 | |
| 4 | 9879719 Rear shelf -1987 | Blue With loudspeaker | 1 | |
| 4 | 9618398 Rear shelf 1987-1987 | Blue With loudspeaker With outlet for air vent. | 1 | |
| 4 | 9879735 Rear shelf -1987 | Grey | 1 | |
| 4 | 9618562 Rear shelf 1987- | Grey With outlet for air vent. | 1 | |
| 4 | 9879743 Rear shelf -1987 | Grey With loudspeaker | 1 | |
| 4 | 9618414 Rear shelf 1987- | Grey With loudspeaker With outlet for air vent. | 1 | |
| 4 | 9735028 Rear shelf 1986-1988 | Yellow | 1 | |
| 4 | 9851858 Rear shelf 1986-1988 | Yellow With loudspeaker | 1 | |
| 4 | 9866161 Rear shelf Brown | 1 | |
| 4 | 9866203 Rear shelf Brown With loudspeaker | 1 | |
| 4 | 9735010 Rear shelf 1986-1987 | Red | 1 | |
| 4 | 9851841 Rear shelf 1986-1987 | Red With loudspeaker | 1 | |
| 4 | 9849092 Rear shelf 1986-1987 | Blue | 1 | |
| 4 | 9851866 Rear shelf 1986-1987 | Blue With loudspeaker | 1 | |
| 4 | 9866179 Rear shelf Grey | 1 | |
| 4 | 9866211 Rear shelf Grey With loudspeaker | 1 | |
| 4A | 9618596 Grille 1987-1988 | Yellow With outlet for air vent. | 4 | |
| 4A | 9618570 Grille 1987- | Brown With outlet for air vent. | 4 | |
| 4A | 9618588 Grille 1987- | Red With outlet for air vent. | 4 | |
| 4A | 9618604 Grille 1987-1987 | Blue With outlet for air vent. | 4 | |
| 4A | 9618612 Grille 1987- | Grey With outlet for air vent. | 4 | |
| 5 | 9857525 Grille, loudspeaker -1987 | Yellow | 2 | |
| 5 | 9863432 Grille, loudspeaker 1987-1988 | Yellow | 2 | |
| 5 | 9857509 Grille, loudspeaker -1987 | Brown | 2 | |
| 5 | 9863416 Grille, loudspeaker 1987-1988 | Brown | 2 | |
| 5 | 9857517 Grille, loudspeaker -1987 | Red | 2 | |
| 5 | 9863424 Grille, loudspeaker 1987-1988 | Red | 2 | |
| 5 | 9857533 Grille, loudspeaker -1987 | Blue | 2 | |
| 5 | 9863440 Grille, loudspeaker 1987-1987 | Blue | 2 | |
| 5 | 9866237 Grille, loudspeaker -1987 | Grey | 2 | |
| 5 | 9863598 Grille, loudspeaker 1987-1988 | Grey | 2 | |
| 5A | 8413429 Washer 1987-1988 | 8 | |
| 6 | 9857590 Nut -1987 | 8 | |
| 6 | 7977903 30509324 Nut 1987- | 8 | |
| 7 | 9733569 Stop lug LH | 1 | |
| 7 | 9733577 Stop lug RH | 1 | |
| 8 | 9741919 Cover 1986-1988 | Yellow | LH | 1 | |
| 8 | 9741927 Cover 1986-1988 | Yellow | RH | 1 | |
| 8 | 9741877 Cover Brown | LH | 1 | |
| 8 | 9741885 Cover Brown | RH | 1 | |
| 8 | 9741893 Cover Red | LH | 1 | |
| 8 | 9741901 Cover Red | RH | 1 | |
| 8 | 9741984 Cover 1986-1987 | Blue | LH | 1 | |
| 8 | 9741992 Cover 1986-1987 | Blue | RH | 1 | |
| 8 | 9877606 Cover Black | LH | 1 | |
| 8 | 9877614 Cover Black | RH | 1 | |
| 9 | 9848169 Tube | 1 | |
| 10 | 9848177 Spring | 2 | |
| 11 | 9485897 Clamp | 3 | |
| 12 | 9848185 Sleeve | 2 | |
| 13 | 7972508 Screw | 4 | |
| 14 | 7045776 Washer | 4 | |
| 15 | 8467870 Support LH | 1 | |
| 15 | 8467888 Support RH | 1 | |
| 16 | 7965775 11900435 Nut | 4 | |
| 17 | 9877457 Clip | 4 |
