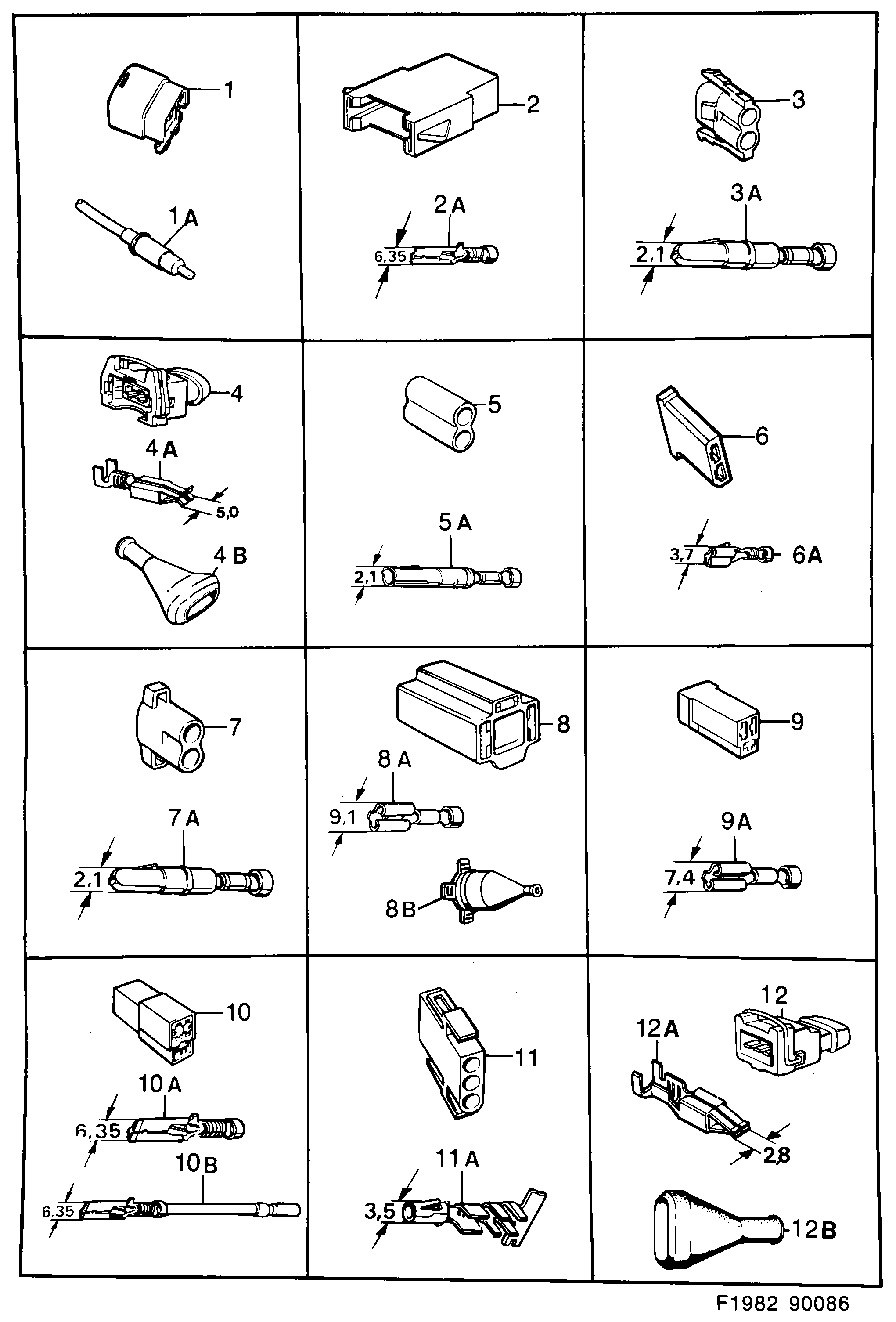

580: Electrical, connector - Wiring and fuses - Contact housing etc
(1988) | For 900 (1988)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9501685 Contact housing 2-pin, male | JOINT PIECE | X | |
| 1A | 7874506 Connection | X | |
| 2 | 9502998 Contact housing 2-pin, male | IGNITION PULS,CHECK ENGINE,JOINT PIECE, FUSE BOX | X | |
| 2A | 7155062 Cable terminal AREA,0,8-2,5 MM2 | X | |
| 2A | 8516957 Cable terminal AREA,4,0-6,0 MM2 | X | |
| 3 | 8504771 Contact housing 2-pin, female | BRAKE PEDAL SPEED CONTROL,CLUTCH PEDAL SPEED CONTROL | X | |
| 3A | 8522583 Cable terminal AREA,0,8-3,4 MM2 | X | |
| 4 | 8597064 Contact housing 2-pin, female | KNOCK SENSOR | X | |
| 4A | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 4B | 8571382 Protection | X | |
| 5 | 8553869 Contact housing 2-pin, female | SENSOR SPEED CONTROL | X | |
| 5A | 8522583 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 6 | 8378630 Contact housing 2-pin, female | PEDALS SPEED CONTROL | X | |
| 6A | 8509846 8522575 Cable terminal AREA,0,5-1,4 MM2 | X | |
| 7 | 8504789 Contact housing 2-pin, male | PEDALS SPEED CONTROL | X | |
| 7A | 8516817 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 8 | 7155021 Contact housing 3-pin, female | HEADLIGHT | X | |
| 8A | 8582413 Cable terminal AREA,1,3-3,4 MM2 | X | |
| 8B | 8552721 Cable protection | X | |
| 9 | 7342892 Connector housing 3-pin, female | LIMP-HOME,JOINT PIECE | X | |
| 9A | 7972029 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 10 | 7342900 Connector housing 3-pin, male | WINDOW REGULATOR REAR INTERIOR LIGHT | X | |
| 10A | 8516957 Cable terminal AREA,4,0-6,0 MM2 | X | |
| 10B | 8522542 Cable terminal AREA,1,5 MM2 | X | |
| 11 | 8564916 Contact housing 3-pin, female | REAR DEMIST | X | |
| 11A | 8544298 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 12 | 8593907 Contact housing 3-pin, female | DISTRIBUTOR,JOINT PIECE THROTTLE SWITCH | X | |
| 12A | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 12B | 8579955 Protection | X |
