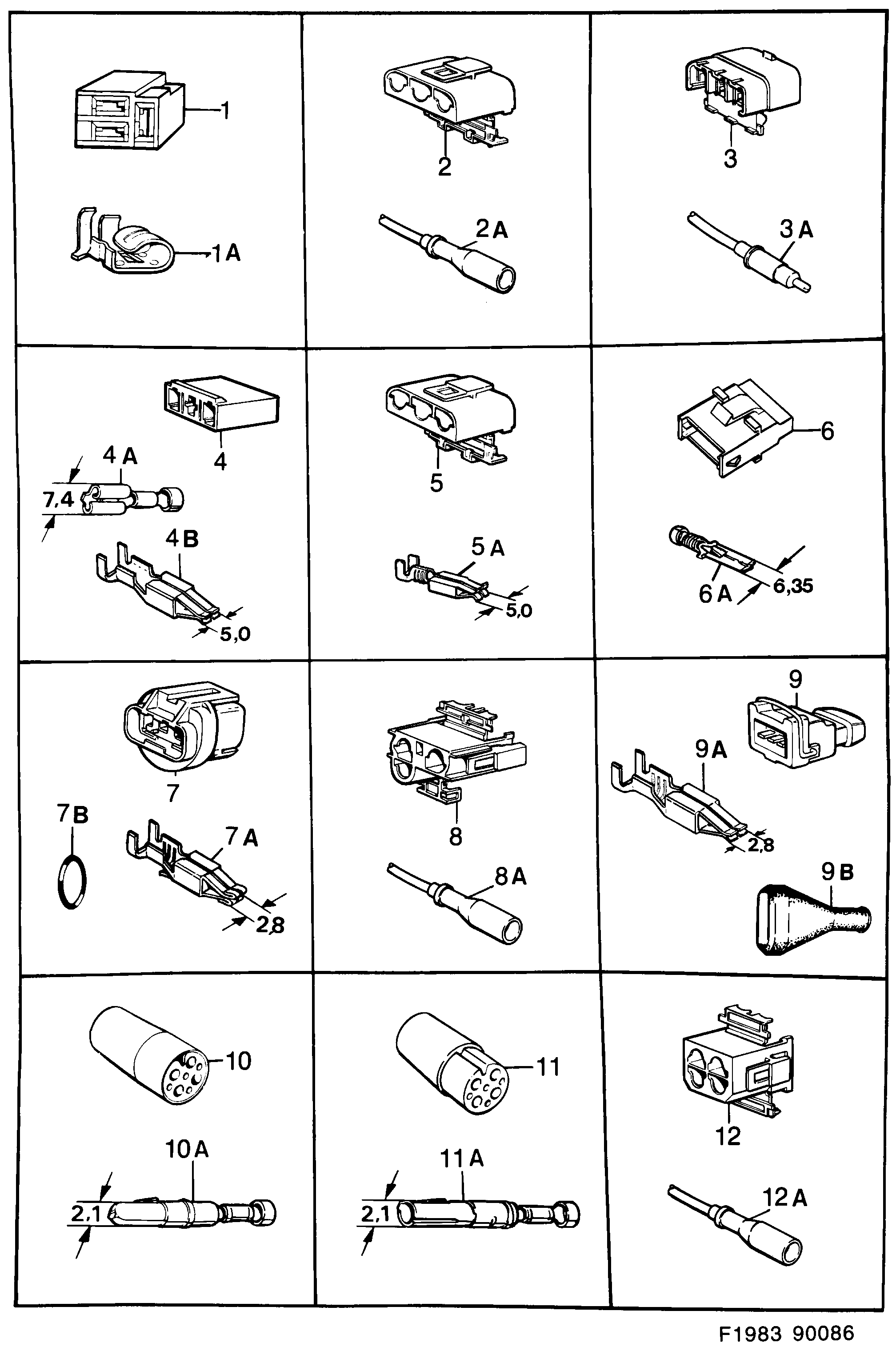

610: Electrical, connector - Wiring and fuses - Contact housing etc

(1988) | For 900 (1988)

Pos.	Part No.	Description	Usage	Qty
1	8582116 Contact housing 3-pin, female \| FUEL TANK TRANSMITTER	Contact housing	3-pin, female FUEL TANK TRANSMITTER	X
1A	8582090 Cable terminal AREA,0,5-1,5 MM2	Cable terminal	AREA,0,5-1,5 MM2	X
2	9503277 Contact housing 3-pin, female \| SPEED CONTROL,HEADLIGHT WIPERS,CENTRAL LOCK FRONT	Contact housing	3-pin, female SPEED CONTROL,HEADLIGHT WIPERS,CENTRAL LOCK FRONT	X
2A	7874498 Connection	Connection		X
3	9503327 Contact housing 3-pin, female \| JOINT PIECE	Contact housing	3-pin, female JOINT PIECE	X
3A	7874506 Connection	Connection		X
4	9507658 Contact housing 3-pin, female \| JOINT PIECE	Contact housing	3-pin, female JOINT PIECE	X
4A	8560476 Cable terminal AREA,0,9-2,0 MM2	Cable terminal	AREA,0,9-2,0 MM2	X
4B	9521972 Cable terminal AREA,0,5-1,0 MM2	Cable terminal	AREA,0,5-1,0 MM2	X
4B	9521980 30520556 Cable terminal AREA,1,5-2,5 MM2	Cable terminal	AREA,1,5-2,5 MM2	X
4B	9120791 30520557 Cable terminal AREA,2,5-4,0 MM2	Cable terminal	AREA,2,5-4,0 MM2	X
5	9124165 Contact housing 3-pin, female \| JOINT PIECE	Contact housing	3-pin, female JOINT PIECE	X
5A	9521972 Cable terminal AREA,0,5-1,0 MM2	Cable terminal	AREA,0,5-1,0 MM2	X
5A	9120791 30520557 Cable terminal AREA,2,5-4,0 MM2	Cable terminal	AREA,2,5-4,0 MM2	X
6	9503012 Contact housing 3-pin, male \| JOINT PIECE,EL-PAD	Contact housing	3-pin, male JOINT PIECE,EL-PAD	X
6A	7155062 Cable terminal AREA,0,5-1,0 MM2	Cable terminal	AREA,0,5-1,0 MM2	X
6A	7155062 Cable terminal AREA,0,8-2,5 MM2	Cable terminal	AREA,0,8-2,5 MM2	X
7	9514803 Contact housing LHD \| 3-pin, female \| HEAD LIGHT	Contact housing	LHD 3-pin, female HEAD LIGHT	X
7A	9120668 12789796 Cable terminal AREA,0,75-1,5 MM2	Cable terminal	AREA,0,75-1,5 MM2	X
7B	9514811 Protection	Protection		X
8	9519679 Contact housing 3-pin, female \| PARKING LIGHT,DIRECTION LIGHT,SIDE BACK-UP LIGHT	Contact housing	3-pin, female PARKING LIGHT,DIRECTION LIGHT,SIDE BACK-UP LIGHT	X
8A	7874498 Connection	Connection		X
9	8593923 Contact housing 3-pin, female \| JOINT PIECE IDLE COMPEN- SATION	Contact housing	3-pin, female JOINT PIECE IDLE COMPEN- SATION	X
9A	9120668 12789796 Cable terminal AREA,0,75-1,5 MM2	Cable terminal	AREA,0,75-1,5 MM2	X
9B	8579955 Protection	Protection		X
10	8530081 Contact housing 4-pin, male \| CENTRAL LOCK,JOINT PIECE	Contact housing	4-pin, male CENTRAL LOCK,JOINT PIECE	X
10A	8503161 Cable terminal AREA,0,5-1,0 MM2	Cable terminal	AREA,0,5-1,0 MM2	X
10A	8516817 Cable terminal AREA,0,5-1,0 MM2	Cable terminal	AREA,0,5-1,0 MM2	X
11	8530099 Contact housing 4-pin, female \| ELECTRIC MIRROR,CENTRAL LOCK REAR	Contact housing	4-pin, female ELECTRIC MIRROR,CENTRAL LOCK REAR	X
11A	8522583 Cable terminal AREA,0,8-3,4 MM2	Cable terminal	AREA,0,8-3,4 MM2	X
11A	8503153 Cable terminal AREA,0,5-1,0 MM2	Cable terminal	AREA,0,5-1,0 MM2	X
12	9503434 Contact housing 4-pin, female \| JOINT PIECE,ELECTRICAL MIRROR	Contact housing	4-pin, female JOINT PIECE,ELECTRICAL MIRROR	X
12A	7874498 Connection	Connection		X
