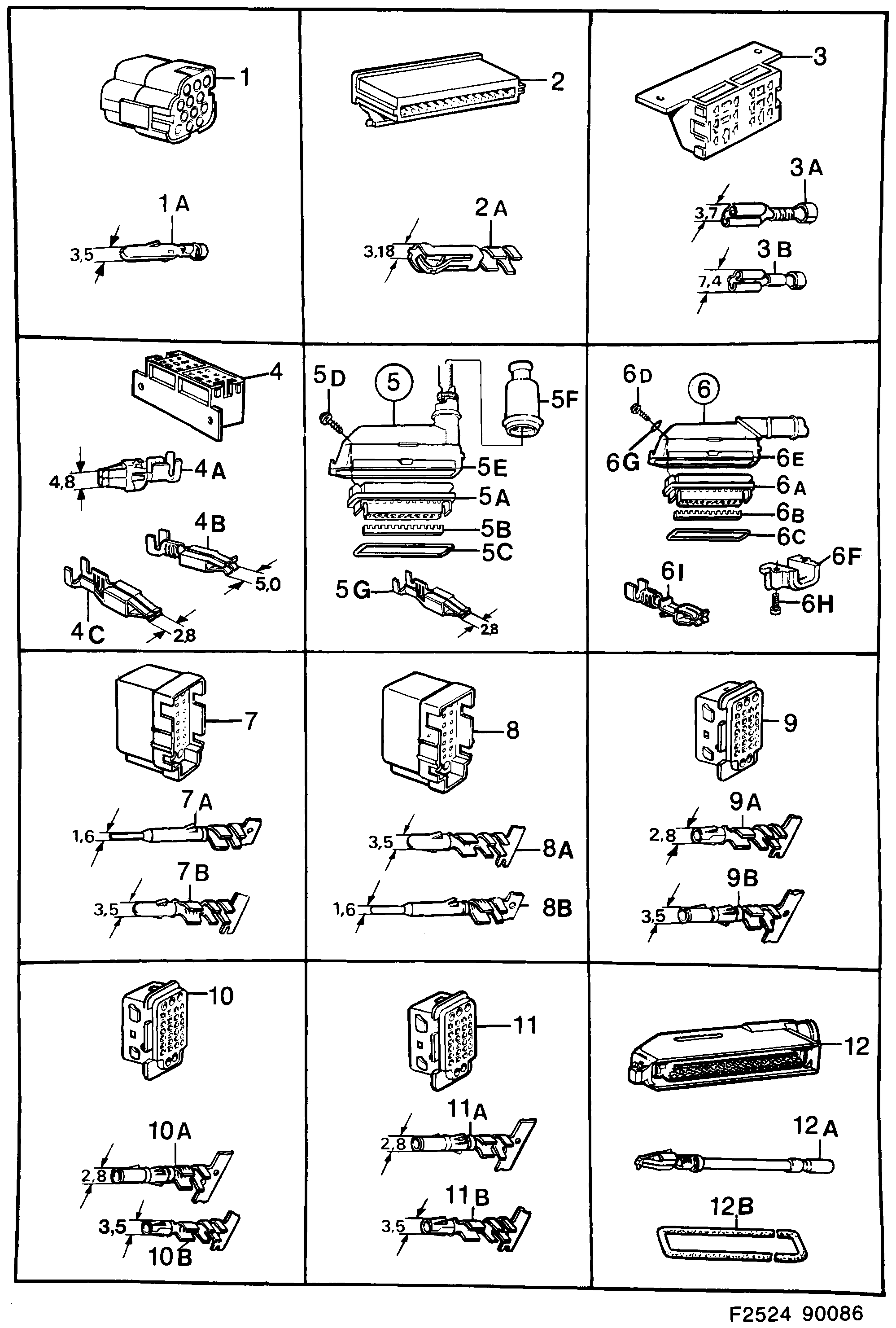

700: Electrical, connector - Wiring and fuses - Contact housing etc
(1988) | For 900 (1988)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8553505 Contact housing 12-pin, male | COWL | X | |
| 1A | 8544314 8582603 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 2 | 8544348 Contact housing 14-pin, female | INSTRUMENTS | X | |
| 2A | 8560278 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 3 | 8551665 Contact housing 18-pin, female | FLASHER | X | |
| 3A | 8509846 8522575 Cable terminal AREA,0,5-1,4 MM2 | X | |
| 3B | 7971708 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 3C | 7972029 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 4 | 9124199 Contact housing 18-pin, female | MAIN RELAY,RELAY FUEL PUMP,TIME RELAY,COWL, FLASHER,INTERVAL RELAY | X | |
| 4A | 9120783 30520556 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 4B | 9521972 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 4C | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 5 | 8586802 Contact housing 25-pin, female | APC,EZK | X | |
| 5A | 8587420 Contact housing | 1 | |
| 5B | 8587438 Striker plate Not as separate spare part. | 1 | |
| 5C | 8587453 Seal Not as separate spare part. | 1 | |
| 5D | 8587487 Screw Not as separate spare part. | 1 | |
| 5E | 8587503 Cover Not as separate spare part. | 1 | |
| 5F | 8587511 Rubber protection Not as separate spare part. | 1 | |
| 5G | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 6 | 9563081 Contact housing 25-pin, female | ELECTRONIC UNIT PASSIVE SEAT BELT | X | |
| 6A | 8587420 Contact housing | 1 | |
| 6B | 8587438 Striker plate Not as separate spare part. | 1 | |
| 6C | 8587453 Seal Not as separate spare part. | 1 | |
| 6D | 8587487 Screw Not as separate spare part. | 1 | |
| 6E | 8587412 Cover Not as separate spare part. | 1 | |
| 6F | 8587495 Bracket Not as separate spare part. | 1 | |
| 6G | 8587461 Seal Not as separate spare part. | 1 | |
| 6H | 7971351 Screw | 2 | |
| 6I | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 7 | 8544215 Contact housing 29-pin, male | COWL,WHITE | X | |
| 7A | 8593964 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 7A | 8544314 8582603 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 7B | 8544322 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 8 | 8544231 Contact housing 29-pin, male | COWL,RED | X | |
| 8A | 8544322 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 8B | 8593956 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 8B | 8593964 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 9 | 8544249 Contact housing 29-pin, female | INSTRUMENTS | X | |
| 9A | 8521726 8567075 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 9B | 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 10 | 8544207 Contact housing 29-pin, female | FUSE BOX | X | |
| 10A | 8587560 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 10B | 8587552 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 10B | 8544306 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 11 | 8544223 Contact housing 29-pin, female | FUSE BOX | X | |
| 11A | 8587560 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 11B | 8544298 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 11B | 8544306 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 12 | 8539363 Contact housing 35-pin, female | ELECTRONIC UNIT LAMBDA | X | |
| 12A | 8522617 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 12B | 9564204 Seal | X |
