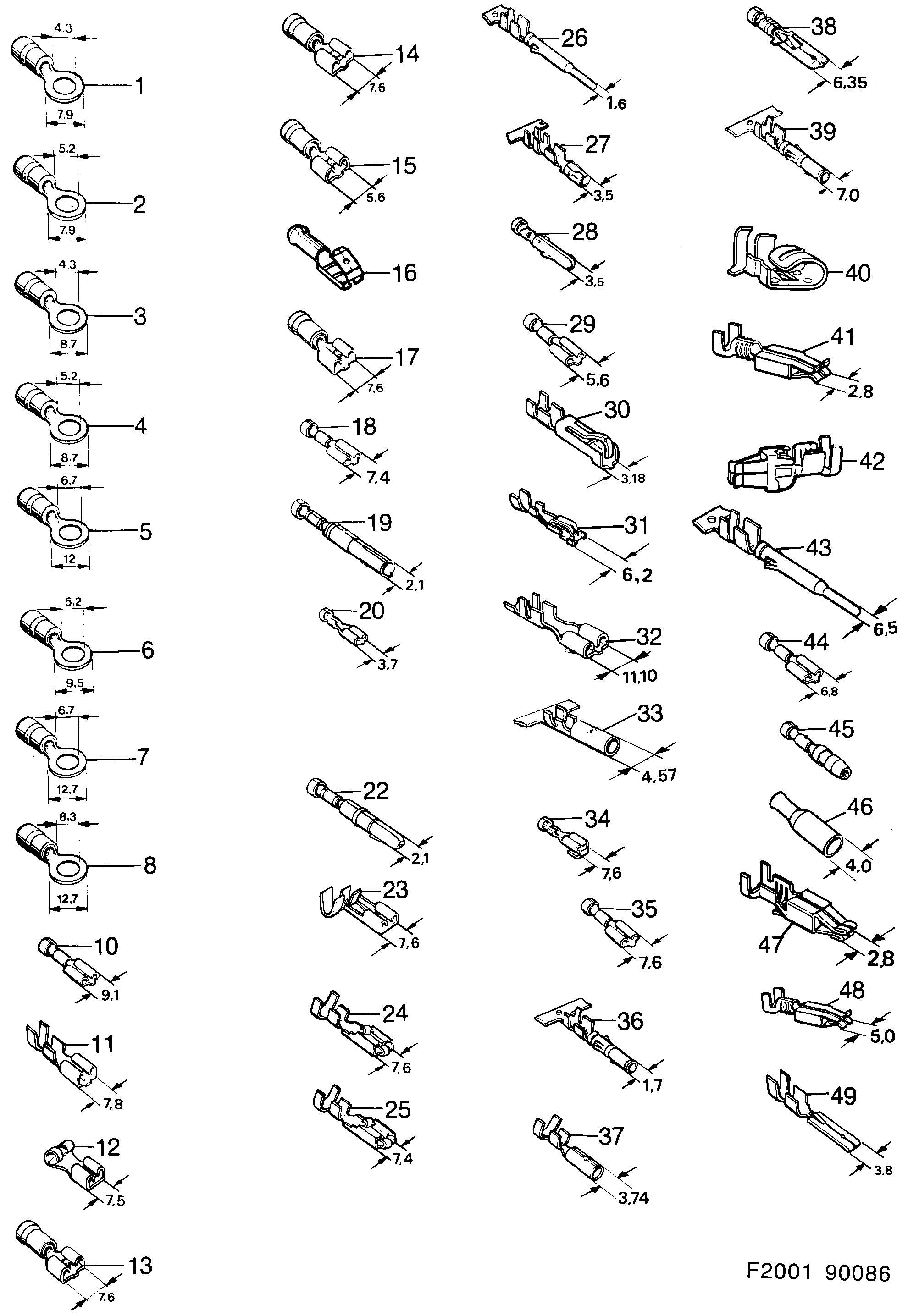

1180: Electrical, connector - Wiring and fuses - Cable terminal

40/253 152 003

40/253 153 001

40/253 172 001

40/253 173 009

40/253 174 007

40/253 210 009

40/253 211 007

40/253 212 005

FOR CONTACT HOUSING 7155021

FOR THERMO SWITCH DOME LIGHT,FUSE BOX, LIGHT CONTROLS,LAMP LAMP SAFETY BELT WARNING SWITCH EGR,BRAKE LIGHT EL-MIRROR,VALVE RECIR- KULATION AC,FOR CONTACT HOUSING,8516916,8572083

FOR THERMO SWITCH DOOR SWITCH

40/253 168 009

40/253 195 002

40/253 197 008,FOR HEADLIGHT

40/253 226 005

FOR EL-CENTRAL FOR CONTACT HOUSING, 8533705,8544397,8558538

IN FUSE BOX,FUEL PUMP,GROUND TRUNK LID, RELAY HORN,RELAY REAR DEMIST,RELAY LIGHT RELAY IGNITION LOCK RELAY FUEL PUMP,TAIL LIGHT,IN CONTACT HOUSING 7155096,8533697,8533705 8544397,8552200

FOR APC,FUSE BOX FOR CONTACT HOUSING, 7155120,8533697

FOR CONTACT HOUSING 8541229

FOR LIGHT CONTROLS FUSE BOX,FOR CONTACT HOUSING 8516916

FOR CONTACT HOUSING 7155096,7342892 8521536,8533697

FOR CONTACT HOUSING 7342892

TAIL LAIGHT,FOR CONTACT HOUSING,7155096 7155112,7342892,8521536 8533697,8552200

FOR CONTACT HOUSING 7155112

FOR CONTACT HOUSING 8504771,8516932,8553869 8590192

097,FOR CONTACT HOUSING 8530115

FOR CONTACT HOUSING 8378630,8540569,8571390

FOR CONTACT HOUSING 8530081

FOR CONTACT HOUSING 8516940,8530081

FOR JOINT PIECE TRUNK LID

FOR JOINT PIECE IDLE COMPENSATOR,THERMO SWITCH AC,JOINT PIECE TRUNK LID,VALVE AC RE- CIRCULATION,FOR CONTACT

FOR CONTACT HOUSING 8521692

RESISTOR DIM-DIP

FOR JOINT PIECE DOOR,FOR CONTACT HOUSING 8521692

FOR GLOVE BOX LIGHT EARTH,THERMOSTAT AC, LOW PRESSURE SWITCH MICRO SWITCH,TAIL LIGHT NUMBER PLATE LIGHT JOINT PIECE INTERIOR LIGHT,TRUNK LID,FOR CONTACT HOUSING,8541229 8544363

FOR FUSE BOX,FAN UNIT,JOINT PIECE, MICRO SWITCH,THERMOSTAT AC,FOR CONTACT HOUSING 8541229,8574949

JOINT PIECE,LIGHT GLOVE BOX,LIGHT NUMBER PLATE,FOR CONTACT HOUSING,8541229,8544363 8574949,9507658

FOR FUSE BOX FOR CONTACT HOUSING, 8544223,853497,8561631 8564916

FOR CONTACT HOUSING 8544231

FOR EL-CENTRAL,FOR CONTACT HOUSING 8544207, 8544223,8553497,8564916

FOR FUSE BOX THEFT ALARM,HORN,FOR CONTACT HOUSING,8544249

FOR FUSE BOX JOINT PIECE TRUNK LID, JOINT PIECE INSTRUMENT AC,FOR CONTACT HOUSING 8544215,8544231,8544256 8553505,8561623

FOR CONTACT HOUSING 8544215,8544231

DOOR SWITCH,FOR CONTACT HOUSING,8516916 8572083

TURBO | FOR PRESSURE SWITCH SENSOR PRESSURE, FOR CONTACT HOUSING 8533184

Red colour code (area 0.3-1.5 MM2). | FOR STARTER,FOR CONTACT HOUSING,8516890

FOR CONTACT HOUSING 8533184

FOR CONTACT HOUSING 8544348

FOR CONTACT HOUSING 8568735

FUSE BOX

RELAY IGNITION LOCK

COMPRESSOR

FUSE BOX

FOR CONTACT HOUSING 8516916,8521544

FOR CONTACT HOUSING,8516916,8521544 8572083

FUSE BOX

FOR CONTACT HOUSING 8544207,8544223

FUSE BOX,RELAY FUEL PUMP,RELAY REAR DEMIST,RELAY HORN RELAY IGNITION LOCK RELAY FOG LIGHT EXTRA RELAY COMPRESSOR AC RELAY GEAR INDICATOR RELAY AC COOLER,RELAY LIGHT,FOR CONTACT

FOR CONTACT HOUSING 8558546

FOR JOINT PIECE CABLE NETWORK SEAT, JOINT PIECE SWITCH SEAT CONTACT HOUSING,9502758 9502758,9503012,9503998

FOR EL-PAD,FOR CONTACT HOUSING,9503012

FOR TEST CONNECTION FOR CONTACT HOUSING, 8544207,8544223,8544249

FOR SWITCH WINDOW REGULATOR,JOINT PIECE, REGULATOR,FOR CONTACT HOUSING,8582116

FOR CONTACT HOUSING 8533655,8544249

FOR CONTACT HOUSING 8533655,9124199

FOR FUSE BOX,JOINT PIECE CABLE NETWORK AC, VACUUM PUMP SPEED CONT- ROL,FOR CONTACT HOUSING 8544215,8544231,8544256

FORFUSE,RELAY LIGHT,RELAY REAR FOG LIGHT,FOR CONTACT HOUSING,9124157,9124165 9124191,9507658

FOR FUSE BOX FOR CONTACT HOUSING, 9124090

FOR THEFT ALARM

HORN

FOR FUSE BOX,RELAY COMPRESSOR AC,FOR CONTACT HOUSING,8593899 8593907,8593915,8593931 8593949,8597064,9123548 9123555,9124199,9125543 9514803,9561333,9563081

FOR CONTACT HOUSING 9123548

JOINT PIECE COWL FOR CONTACT HOUSING, 9124199,9521972

FOR FUSE BOX

FOR CONTACT HOUSING 9122557,9124199

FOR CONTACT HOUSING 9518713,9518739
