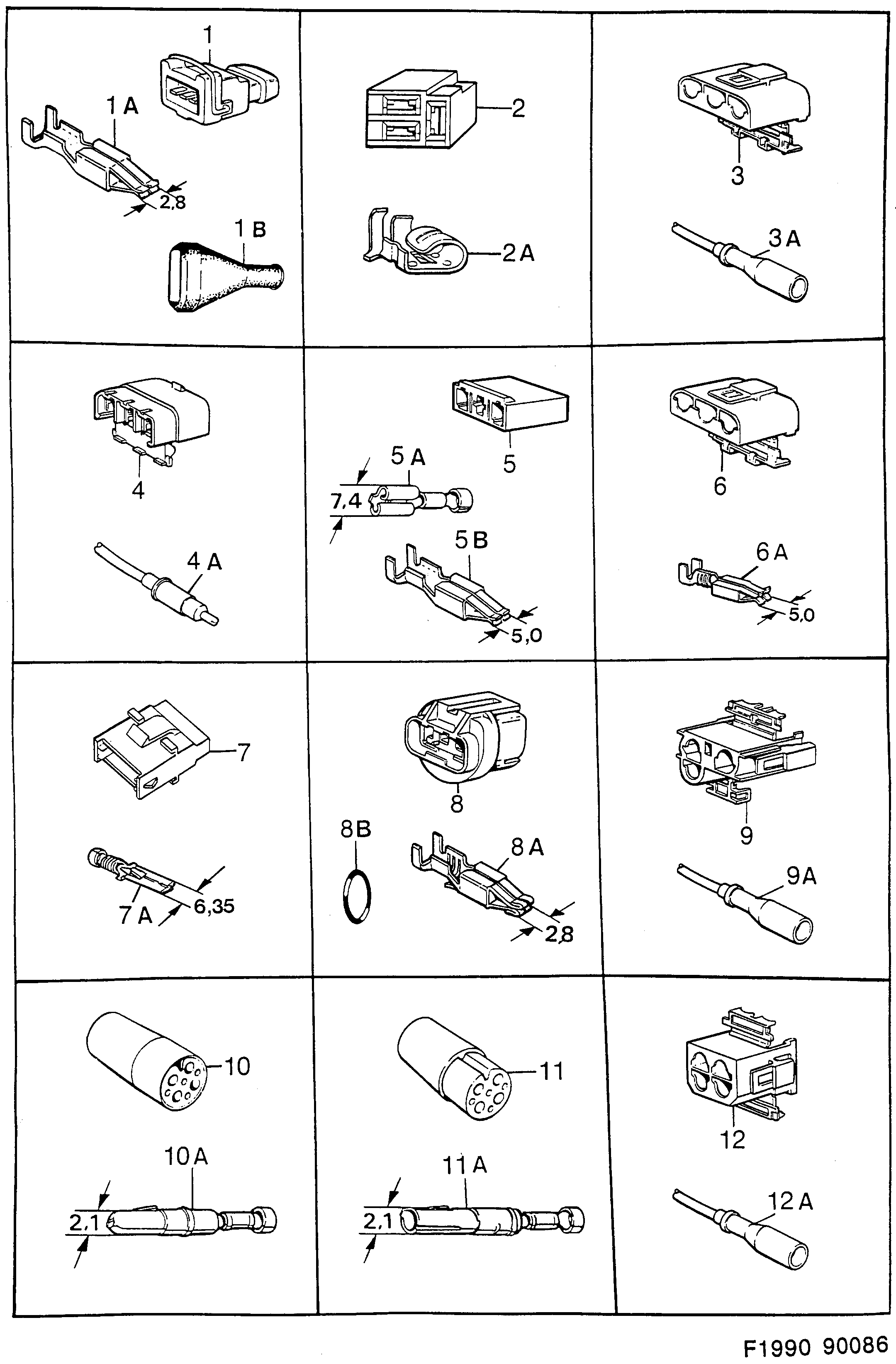

850: Electrical, connector - Wiring and fuses - Contact housing etc
(1989) | For 900 (1989)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8593907 Contact housing 3-pin, female | DISTRIBUTOR,SENSOR THROTTLE ANGEL | X | |
| 1A | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 1B | 8579955 Protection | X | |
| 2 | 8582116 Contact housing 3-pin, female | FUEL TANK TRANSMITTER | X | |
| 2A | 8582090 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 3 | 9503277 Contact housing 3-pin, female | SPEED CONTROL,HEADLIGHT WIPERS,CENTRAL LOCK FRONT,CRANKSHAFT SENSOR ABS,TANK SENSOR,JOINT PIECE CABLE NETWORK MOTOR/FRONT | X | |
| 3A | 7874498 Connection | X | |
| 4 | 9503327 Contact housing 3-pin, female | JOINT PIECE MOTOR/LH+EZK JOINT PIECE CABLE NET- WORK REAR/TANK SENSOR JOINT PIECE MOTOR/AC | X | |
| 4A | 7874506 Connection | X | |
| 5 | 9507658 Contact housing 3-pin, female | INTERIOR LIGHT | X | |
| 5A | 8560476 Cable terminal AREA,0,9-2,0 MM2 | X | |
| 5B | 9521972 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 5B | 9120791 30520557 Cable terminal AREA,2,5-4,0 MM2 | X | |
| 6 | 9124165 Contact housing 3-pin, female | REOSTAT EL-PAD ELECTRONIC UNIT PASSIVE SEAT BELT,COMBINED INSTRUMENT,SENSOR SPEED CONTROL,JOINT PIECE CABLENETWORK FRONT/MOTOR | X | |
| 6A | 9120791 30520557 Cable terminal AREA,2,5-4,0 MM2 | X | |
| 7 | 9503012 Contact housing 3-pin, male | JOINT PIECE PASSIVE SEAT BELT,EL-PAD | X | |
| 7A | 7155062 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 7A | 7155062 Cable terminal AREA,0,8-2,5 MM2 | X | |
| 8 | 9514803 Contact housing LHD | 3-pin, female | HEAD LIGHT | X | |
| 8A | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 8B | 9514811 Protection | X | |
| 9 | 9519679 Contact housing 3-pin, female | PARKING LIGHT,DIRECTION LIGHT,SIDE BACK-UP LIGHT | X | |
| 9A | 7874498 Connection | X | |
| 10 | 8530081 Contact housing 4-pin, male | CENTRAL LOCK,JOINT PIECE CABLE NETWORK DOOR/REAR | X | |
| 10A | 8503161 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 10A | 8516817 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 11 | 8530099 Contact housing 4-pin, female | ELECTRIC MIRROR,CENTRAL LOCK REAR | X | |
| 11A | 8522583 Cable terminal AREA,0,8-3,4 MM2 | X | |
| 11A | 8503153 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 12 | 9503434 Contact housing 4-pin, female | EL-MIRROR,JOINT PIECE CABLE NETWORK ENGINE/ FRONT | X | |
| 12A | 7874498 Connection | X |
