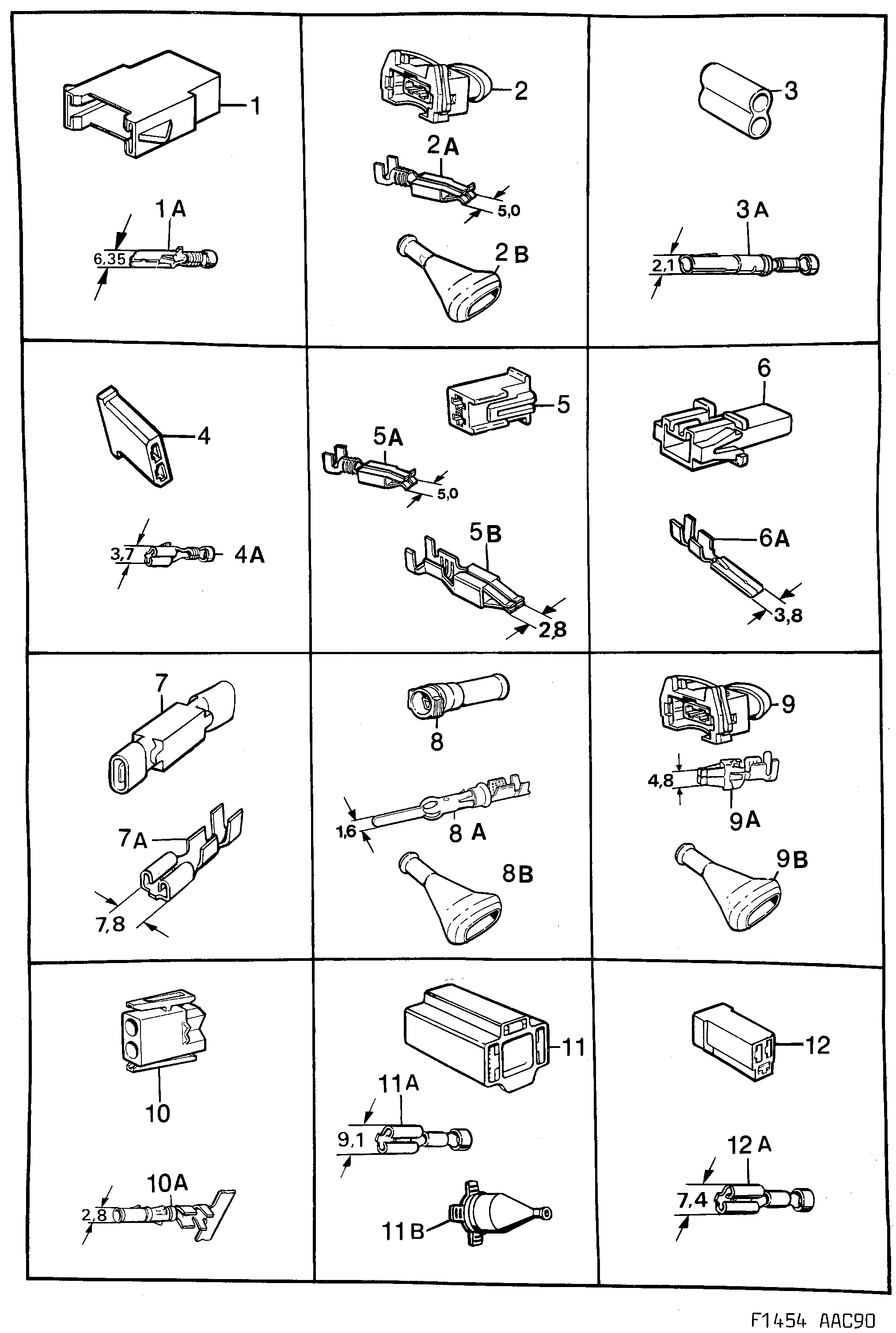

170: Electrical, connector - Wiring and fuses - Contact housing etc
(1990) | For 900 (1990)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4069829 Contact housing 2-pin, male | JOINT PIECE CABLE HARNESS REAR/BRAKE LIGHT | X | |
| 1A | 8522542 Cable terminal AREA,1,0-2,6 MM2 | X | |
| 2 | 8597064 Contact housing 2-pin, female | KNOCK SENSOR,TEMP SENSOR | X | |
| 2A | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 2B | 8571382 Protection | X | |
| 3 | 8553869 Contact housing 2-pin, female | SENSOR SPEED CONTROL | X | |
| 3A | 8522583 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 4 | 8378630 Contact housing 2-pin, female | PEDALS SPEED CONTROL | X | |
| 4A | 8522575 Cable harness AREA,0,5-1,4 MM2 | X | |
| 5 | 9123548 12790106 Contact housing 2-pin, female | SPEED CONTROL,PARKING LIGHT INDICATOR,LIGHT ASH TRAY,STEERING WHEEL JOINT PIECE CABLE HAR- NESS ENGINE/INSTRUMENTS JOINT PIECE CABLE HAR- NESS REAR/ABS,JOINT PIECE CABLE HARNESS REAR/TRUNK DOOR,JOINT | X | |
| 5A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 5B | 9508714 12789796 Cable terminal AREA,0,3-0,6 MM2 | X | |
| 6 | 9518713 Contact housing 2-pin, male | SENSOR SPEED CONTROL JOINT PIECE CABLE HAR- NESS INSTRUMENTS/ENGINE JOINT PIECE CABLE HAR- NESS REAR/TAIL LIGHTS JOINT PIECE CABLE HAR- NESS REAR/ABS,JOINT PIECE CABLE HARNESS TRUNK DOOR/TRUNK DOOR | X | |
| 6A | 9552100 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 7 | 8574881 Diode 2-pin, female | COMPRESSOR AC,CABLE HARNESS AC/RELAY ENGINE | X | |
| 7A | 7155716 Cable terminal AREA,0,4-1,0 MM2 | X | |
| 8 | 9519406 Contact housing 2-pin, male | SENSOR ABS | X | |
| 8A | 9519398 Cable terminal AREA,0,8-1,5 MM2 | X | |
| 8B | 8579955 Protection | X | |
| 9 | 9519422 Contact housing 2-pin, female | PUMP ABS | X | |
| 9A | 9120791 30520557 Cable terminal AREA,2,5-4,0 MM2 | X | |
| 9B | 8579955 Protection | X | |
| 10 | 9525809 Contact housing 2-pin, female | STEERING WHEEL AIR-BAG | X | |
| 10A | 9525817 Cable terminal AREA,0,2-0,56 MM2 | X | |
| 11 | 7155021 Contact housing 3-pin, female | HEADLIGHT | X | |
| 11A | 8582413 Cable terminal AREA,1,3-3,4 MM2 | X | |
| 11B | 8552721 Cable protection | X | |
| 12 | 7342892 Connector housing 3-pin, female | LIMP-HOME,JOINT PIECE CABLE NETWORK DOOR/REAR, TEST CONNECTOR ENGINE | X | |
| 12A | 8522534 Cable terminal AREA,1,0-2,5 MM2 | X |
