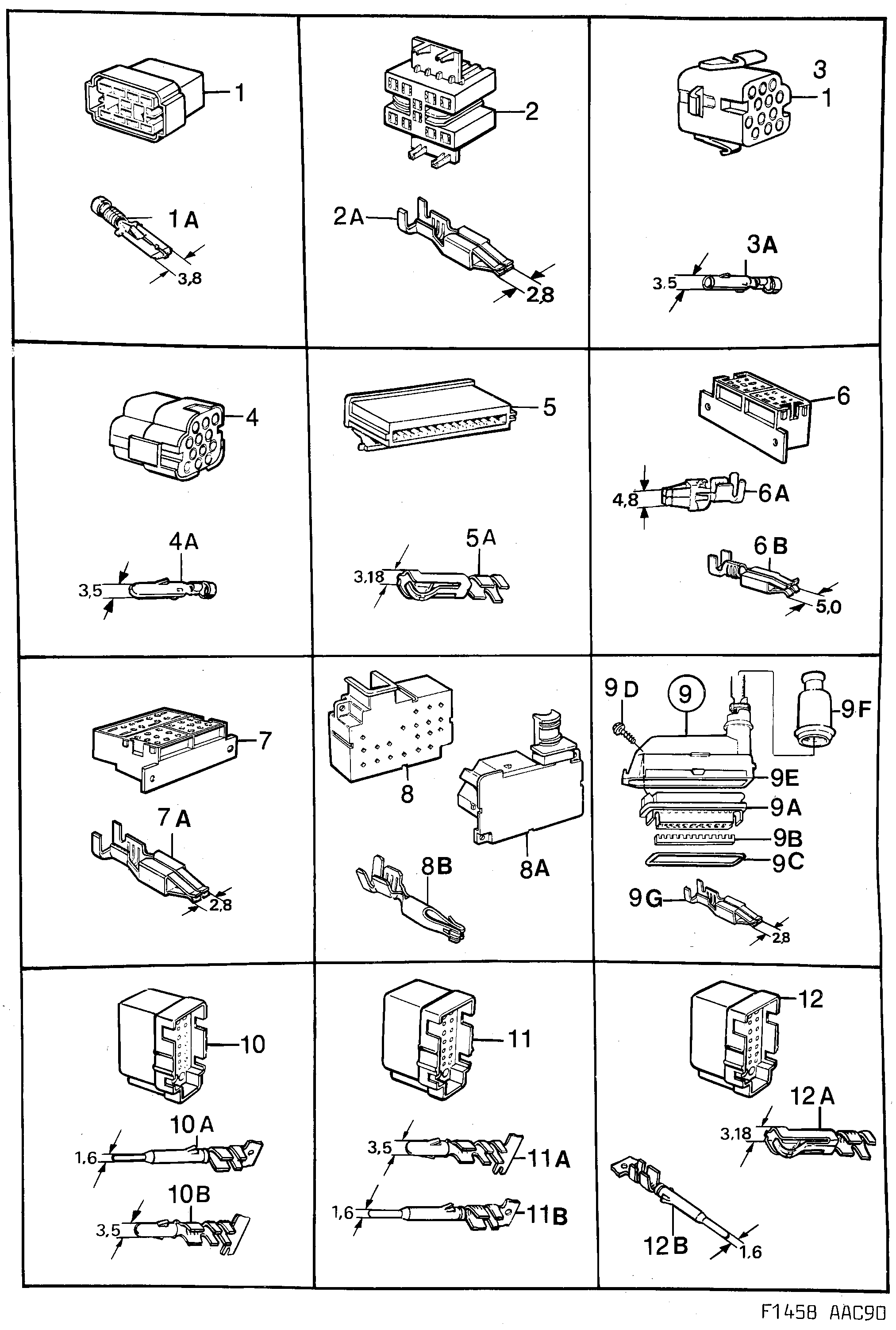

290: Electrical, connector - Wiring and fuses - Contact housing etc
(1990) | For 900 (1990)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9122557 Connector housing 10-pin, male | RADIO,TEST MOTOR ELECT- RONIC,JOINT PIECE CABLE HARNESS REAR/INST- RUMENTS,JOINT PIECE CABLE HARNESS AIR-BAG/ INSTRUMENTS | X | |
| 1A | 9552100 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 2 | 9123399 12764801 Connector housing 10-pin, female | RADIO,EL-PAD DRIVER SWITCH REAR DEMIST, SWITCH FOG LIGHT,SWITCH RECIRCULATION,SWITCH AC SWITCH FLASHER,REOSTAT EL-PAD DRIVER,SWITCH FOG LIGHT FRONT EXTRA JOINT PIECE CABLE HAR- NESS REAR/INSTRUMENT | X | |
| 2A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 2A | 9508714 12789796 Cable terminal AREA,0,3-0,6 MM2 | X | |
| 3 | 8553497 Connector housing 12-pin, female | COWL | X | |
| 3A | 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 3A | 8544306 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 4 | 8553505 Contact housing 12-pin, male | JOINT PIECE CABLE HAR- NESS REAR/INSTRUMENTS | X | |
| 4A | 8582603 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 5 | 8544348 Contact housing 14-pin, female | INSTRUMENTS | X | |
| 5A | 8560278 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 6 | 9124199 Contact housing 18-pin, female | MAIN RELAY,RELAY FUEL PUMP,TIME RELAY,COWL, RELAY INSTRUMENT | X | |
| 6A | 9120783 30520556 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 6B | 9521972 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 7 | 9125543 Contact housing 18-pin, female | ABS,RELAY MAIN/ENGINE | X | |
| 7A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 7A | 9120791 30520557 Cable terminal AREA,2,0-4,5 MM2 | X | |
| 8 | 9527755 Contact housing 20-pin, female | ELECTRONIC UNIT AIR-BAG | X | |
| 8A | 9527763 Contact housing | X | |
| 8B | 9527771 Cable terminal AREA,0,5 MM2 | X | |
| 9 | 8586802 Contact housing 25-pin, female | APC,EZK | X | |
| 9A | 8587420 Contact housing | 1 | |
| 9B | 8587438 Striker plate Not as separate spare part. | 1 | |
| 9C | 8587453 Seal Not as separate spare part. | 1 | |
| 9D | 8587487 Screw Not as separate spare part. | 1 | |
| 9E | 8587503 Cover Not as separate spare part. | 1 | |
| 9F | 8587511 Rubber protection Not as separate spare part. | 1 | |
| 9G | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 10 | 8544215 Contact housing 29-pin, male | WHITE,COWL,JOINT PIECE CABLE HARNESS REAR/EL-DISTRIBUT. UNIT | X | |
| 10A | 8593964 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 10A | 8582603 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 10B | 8544322 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 11 | 8544231 Contact housing 29-pin, male | RED,COWL,JOINT PIECE CABLE HARNESS EL-DISTRI- BUTION UNIT/INSTRUMENTS | X | |
| 11A | 8544322 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 11B | 8593956 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 11B | 8593964 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 12 | 8544256 Contact housing 29-pin, male | BLACK,COWL,JOINT PIECE CABLE HARNESS INSTRUMENTS/FRONT | X | |
| 12A | 8593956 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 12A | 9120791 30520557 Cable terminal AREA,2,5-4,0 MM2 | X | |
| 12B | 8582603 Cable terminal AREA,2,0-4,0 MM2 | X |
