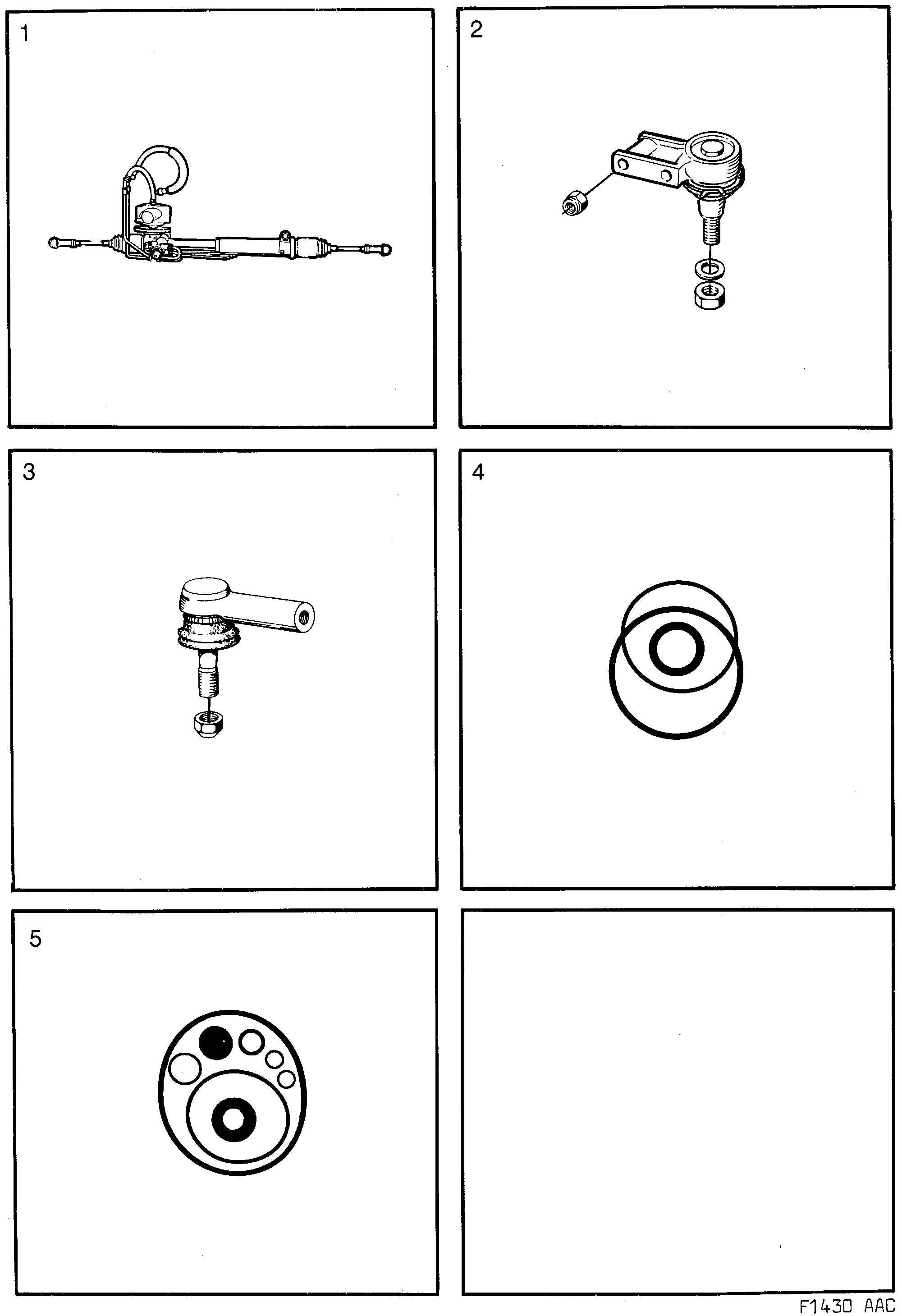

290: Steering - Kits - Front assembly - Steering assembly
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8993552 Steering gear kit LHD | power steering | X | |
9106295 Steering gear | 1 | ||
8934242 Screw | 2 | ||
8934259 Washer | 2 | ||
7971765 92153201 Nut | 2 | ||
7967979 Nut | 2 | ||
9101577 Pump, hydraulic oil | 1 | ||
8986051 Pulley | 1 | ||
7963507 7970049 Hose clamp | 1 | ||
8942575 Hose | 1 | ||
8948333 Hose | 1 | ||
7970130 92153077 Hose clamp | 1 | ||
8944001 Sleeve | 1 | ||
9361791 Belt, v ribbed | 1 | ||
9325705 Bracket | 1 | ||
9325713 Brace | 1 | ||
9324914 Spacer ring | 1 | ||
7967946 Screw | 1 | ||
8083156 8148215 Screw | 1 | ||
9338542 Washer | 1 | ||
9105735 Nut | 2 | ||
8082927 Screw | 1 | ||
8937617 32025040 Oil | X | ||
| 2 | 8993321 End piece | X | |
8985384 8993321 End piece Not as separate spare part. | 1 | ||
8993677 Nut set Not as separate spare part. | 1 | ||
8990012 Screw | 1 | ||
| 3 | 8993560 Drag link end | X | |
8990178 Drag link end Not as separate spare part. | 1 | ||
8151482 Lock nut | 1 | ||
| 4 | 8989857 Gasket kit 1990-1990 | hydraulic pump | X | |
O-ring Not as separate spare part. | 1 | ||
O-ring Not as separate spare part. | 1 | ||
O-ring Not as separate spare part. | 1 | ||
4104709 O-ring Not as separate spare part. | 1 | ||
4104717 O-ring Not as separate spare part. | 1 | ||
4104725 O-ring Not as separate spare part. | 1 | ||
4104733 O-ring Not as separate spare part. | 1 | ||
5336441 Seal Not as separate spare part. | 1 | ||
| 5 | 8989840 Gasket kit B201 | Cars without rear hydraulic engine mounting hydraulic pump | X | |
O-ring Not as separate spare part. | 1 | ||
O-ring Not as separate spare part. | 2 | ||
O-ring Not as separate spare part. | 1 | ||
Sealing ring Not as separate spare part. | 1 | ||
Sealing ring Not as separate spare part. | 1 | ||
Sealing ring Not as separate spare part. | 2 | ||
Sealing ring Not as separate spare part. | 2 | ||
Sealing ring Not as separate spare part. | 1 | ||
Magnet Not as separate spare part. | 1 |
