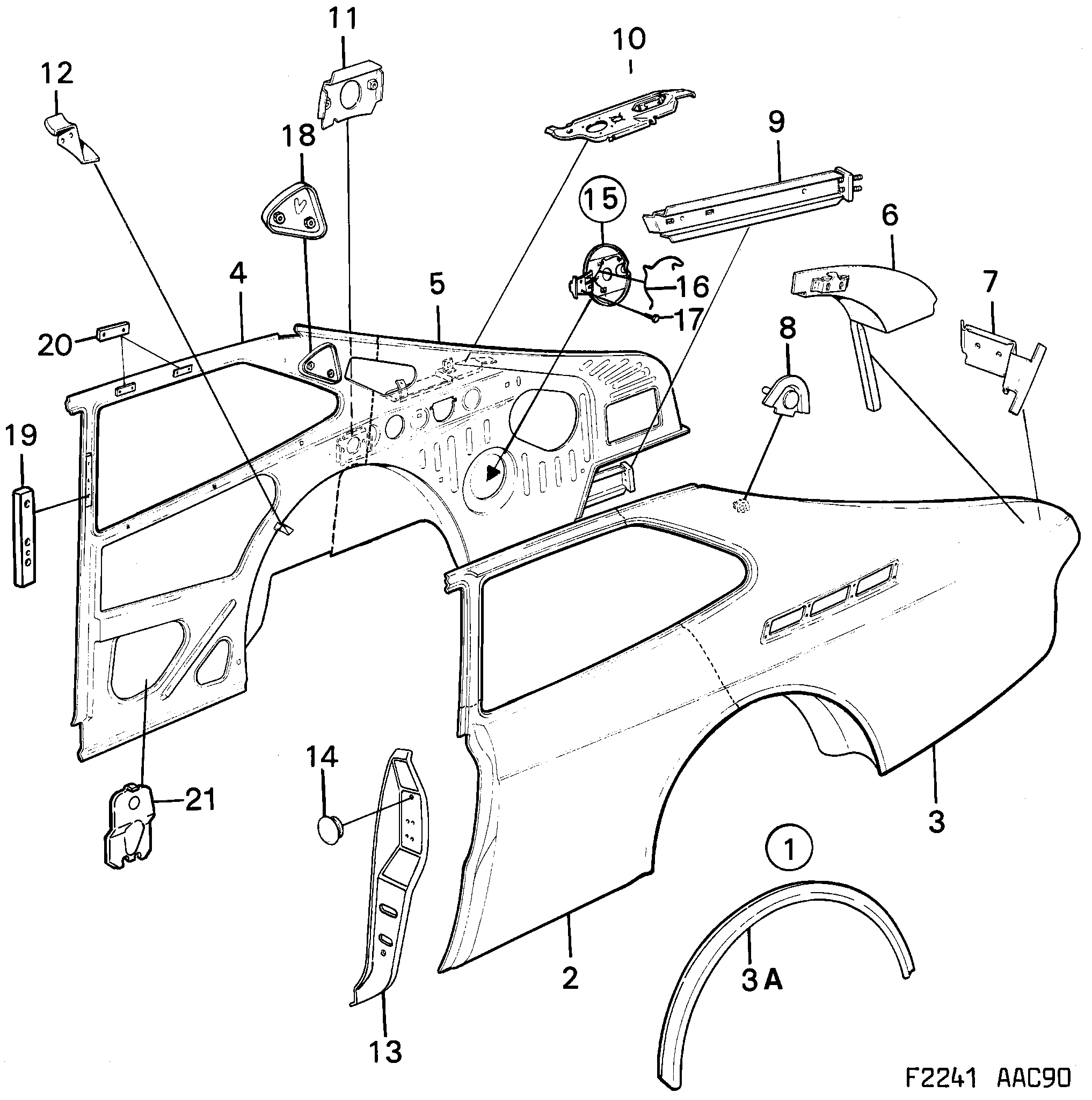

500: Car body, external - Body shell - Side plate
(1990 - 1993 | 5D) | For 900 (1990)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9229717 Side plate LH,ALT 9284035 | 1 | |
| 1 | 9229725 9284043 Side plate RH,ALT 9284043 | 1 | |
| 2 | 9228230 Side plate LH | 1 | |
| 2 | 9228248 Side plate RH | 1 | |
| 3 | 8253155 Side plate LH,ALT 9284050 | 1 | |
| 3 | 8253163 Side plate RH,ALT 9284068 | 1 | |
| 3A | 7874118 Mudguard repair part | 2 | |
| 4 | 4006656 Side plate Front. | LH | 1 | |
| 4 | 4006664 Side plate Front. | RH | 1 | |
| 5 | 9289059 Side plate Rear. | LH | 1 | |
| 5 | 8255242 Plate Rear. | RH | 1 | |
| 6 | 8285462 Plate LH (8250573) | 1 | |
| 6 | 8285470 Plate RH (8250581) | 1 | |
| 7 | 9223777 Bracket LH | 1 | |
| 7 | 9223785 Bracket RH | 1 | |
| 8 | 8283665 Bracket | 2 | |
| 9 | 9221995 Reinforcement LH | 1 | |
| 9 | 9222001 Reinforcement RH | 1 | |
| 10 | 6917116 Support LH | 1 | |
| 10 | 6917124 Support RH | 1 | |
| 11 | 8283921 Bracket LH | 1 | |
| 11 | 8283939 Bracket RH | 1 | |
| 12 | 7601727 Support | 1 | |
| 13 | 7600828 End plate LH | 1 | |
| 13 | 7600836 End plate RH | 1 | |
| 14 | 7038342 Plug | 1 | |
| 15 | 8286304 Cover | 1 | |
| 16 | 8262537 Spring | 1 | |
| 17 | 7972888 Screw | 2 | |
| 18 | 7601552 Reinforcement 1990-1990 | LH | 1 | |
| 18 | 7601560 Reinforcement 1990-1990 | RH | 1 | |
| 19 | 4006409 Washer | 2 | |
| 20 | 8209967 Attaching profile | 4 | |
| 21 | 4007001 Support | 2 |
