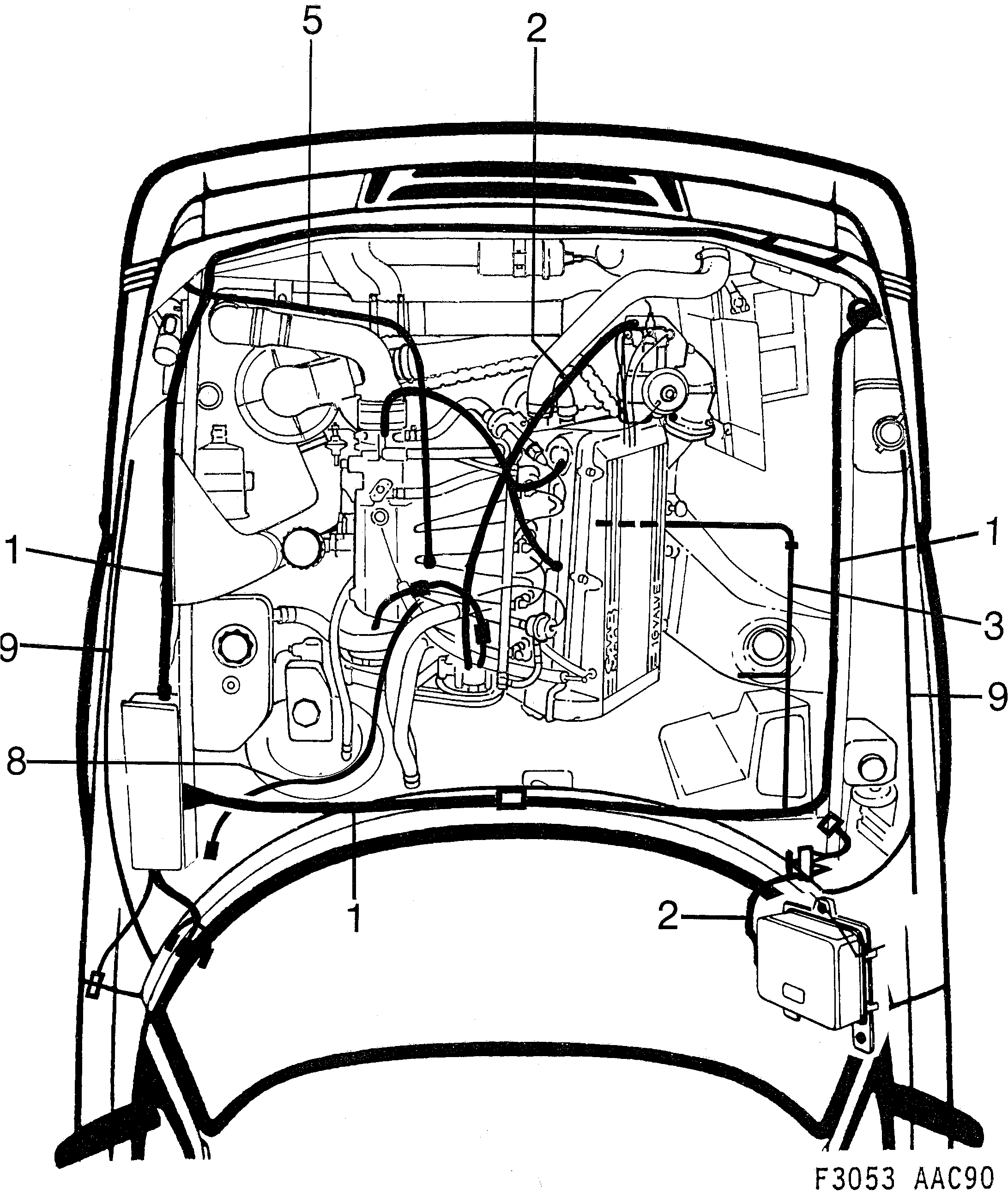

1040: Electrical, general - Wiring and fuses - Front and engine
(1991) | For 900 (1991)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 4173233 Cable harness -1991 | B202I | With catalytic converter. front | 1 | |||
| 1 | 4175022 Cable harness 1991- | B202I | With catalytic converter. With main fuse box. front | 1 | |||
| 1 | 4173266 Cable harness -1991, RHD | B202I | With catalytic converter. front | 1 | |||
| 1 | 4175055 Cable harness 1991-, RHD | B202I | With catalytic converter. With main fuse box. front | 1 | |||
| 1 | 4173241 Cable harness -1991, RHD | B202I | Without catalytic converter. front | 1 | |||
| 1 | 4175030 Cable harness 1991-, RHD | B202I | Without catalytic converter. With main fuse box. front | 1 | |||
| 1 | 4173282 Cable harness -1991 | With catalytic converter. front | 1 | |||
| 1 | 4175071 Cable harness 1991- | With catalytic converter. With main fuse box. front | 1 | |||
| 1 | 4173290 Cable harness -1991, RHD | With catalytic converter. front | 1 | |||
| 1 | 4175089 Cable harness 1991-, RHD | With catalytic converter. With main fuse box. front | 1 | |||
| 1 | 4173258 Cable harness -1991 | B202I | With catalytic converter. front | 1 | |||
| 1 | 4175048 Cable harness 1991- | B202I | With catalytic converter. With main fuse box. front | 1 | |||
| 1 | 4173324 Cable harness -1991 | B202S | front | 1 | |||
| 1 | 4175113 Cable harness 1991- | B202S | With main fuse box. front | 1 | |||
| 1 | 4173332 Cable harness -1991, RHD | B202S | front | 1 | |||
| 1 | 4175121 Cable harness 1991-, RHD | B202S | With main fuse box. front | 1 | |||
| 1 | 4173340 Cable harness -1991 | B202TURBO | front | 1 | |||
| 1 | 4175139 Cable harness 1991- | B202TURBO | With main fuse box. front | 1 | |||
| 1 | 4173357 Cable harness -1991, RHD | B202TURBO | front | 1 | |||
| 1 | 4175147 Cable harness 1991-, RHD | B202TURBO | With main fuse box. front | 1 | |||
| 1 | 4173308 Cable harness -1991, LHD | front | 1 | |||
| 1 | 4175097 Cable harness 1991-, LHD | With main fuse box. front | 1 | |||
| 1 | 4173365 Cable harness -1991, LHD | B202TURBO | front | 1 | |||
| 1 | 4175154 Cable harness 1991-, LHD | B202TURBO | With main fuse box. front | 1 | |||
| 1 | 4173316 Cable harness -1991 | front | 1 | |||
| 1 | 4175105 Cable harness 1991- | With main fuse box. front | 1 | |||
| 1 | 4173373 Cable harness -1991 | B202TURBO | front | 1 | |||
| 1 | 4175162 Cable harness 1991- | B202TURBO | With main fuse box. front | 1 | |||
| 2 | 4110458 Cable harness B202I | With catalytic converter. engine | 1 | |||
| 2 | 9121757 Cable harness B202I | Without catalytic converter. engine | 1 | |||
| 2 | 4110045 Cable harness B212I | With catalytic converter. engine | 1 | |||
| 2 | 4110060 Cable harness B202TURBO | With catalytic converter. engine | 1 | |||
| 2 | 4110078 Cable harness B202TURBO | Without catalytic converter. engine | 1 | |||
| 2 | 4110466 Cable harness LHD | B202TURBO | engine | 1 | |||
| 3 | 8569386 Cable lambda sond | 1 | |||
| 4 | 9555905 Cable B+ | 1 | |||
| 5 | 9561804 Cable harness knock sensor | 1 | |||
| 8 | 7478159 Cable harness Without catalytic converter. Part of choke kit 89 82 423. | LH2.2 | 1 | |||
| 9 | 4663019 Cable harness sensor | AIR-BAG,LH | 1 | |||
| 9 | 4663027 Cable harness sensor | AIR-BAG,RH | 1 | |||
