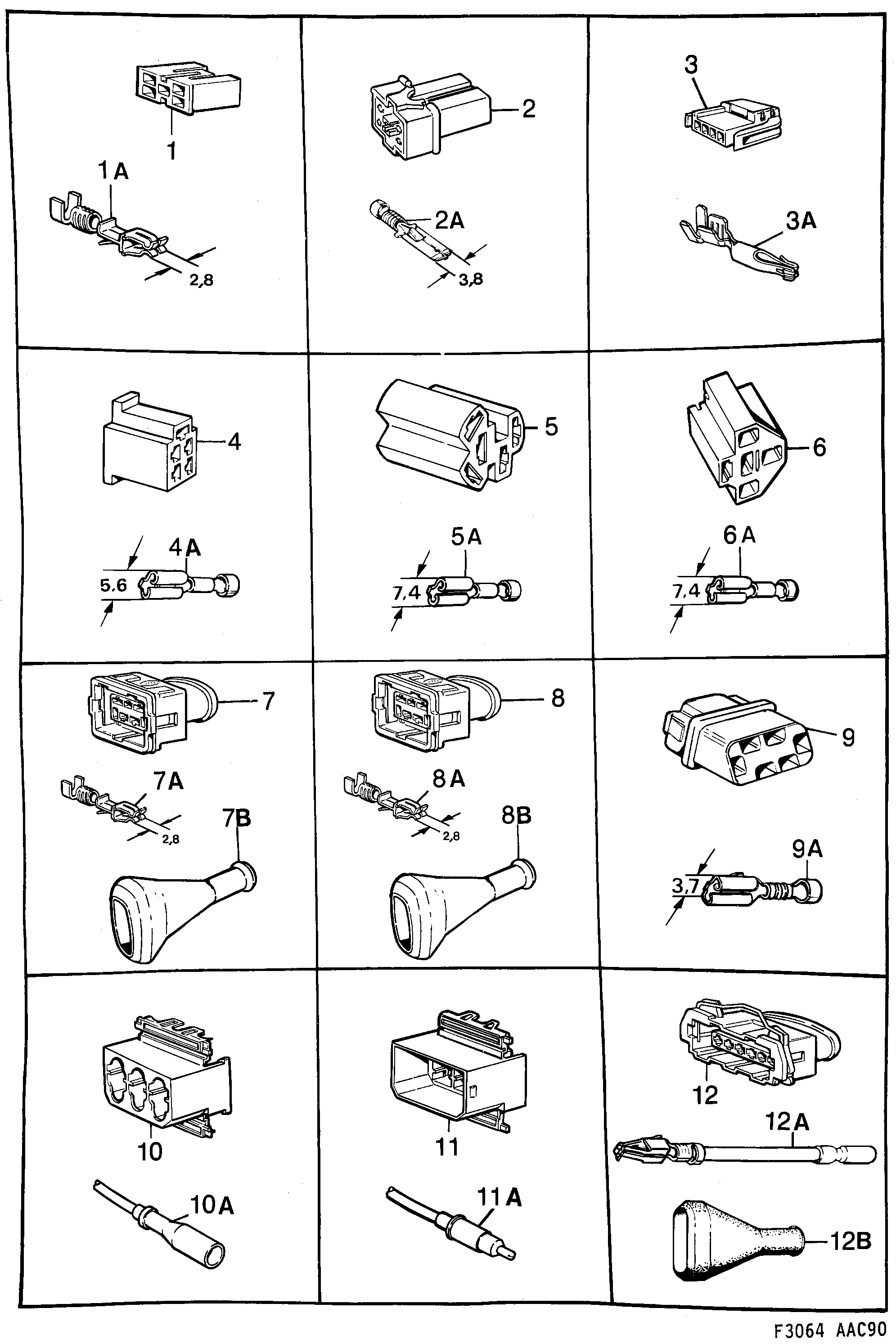

470: Electrical, connector - Wiring and fuses - Contact housing etc
(1991) | For 900 (1991)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9123555 Contact housing 4-pin, female | IGNITION PULS/CHECK ENGINE,CONTROL SPEED CONTROL,JOINT PIECE CABLE HARNESS ENGINE/ INSTRUMENTS,JOINT PIECE CABLE HARNESS SENSOR/ AIR-BAG | X | |
| 1A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 1A | 4063087 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 2 | 9518739 Contact housing 4-pin, male | JOINT PIECE CABLE HAR- NESS ENGINE/INSTRUMENT, JOINT PIECE CABLE HAR- NESS TRUNK DOOR/TRUNK DOOR | X | |
| 2A | 9552100 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 3 | 4061503 Contact housing 4-pin, female | JOINT PIECE CABLE HAR- NESS AIR-BAG/SENSOR | X | |
| 3A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 3A | 4063087 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 4 | 8516890 Contact housing 5-pin, female | WINDSHIELD WIPER MOTOR | X | |
| 4A | 8522567 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 5 | 8544397 Contact housing 5-pin, female | SWITCH HEATING FAN | X | |
| 5A | 8522534 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 5A | 7968068 Cable terminal AREA,4,0-6,0 MM2 | X | |
| 6 | 8533697 Contact housing 5-pin, female | RESISTOR HEATING FAN SPEED CONTROL,ONE TOUCH, RELAY FLASHER,IGNITION LOCK,RELAY CONVERTIBLE TIME RELAY INTERIOR LIGHT DELAY,RELAY ANTI THEFT ALARM | X | |
| 6A | 8522534 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 6A | 7968068 Cable terminal AREA,4,0-6,0 MM2 | X | |
| 7 | 9519455 Contact housing 5-pin, female | LEVEL ABS | X | |
| 7A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 7B | 9519430 Protection | X | |
| 8 | 9519414 Contact housing 5-pin, female | PRESSURE SWITCH | X | |
| 8A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 8B | 9519430 Protection | X | |
| 9 | 8540569 Contact housing 6-pin, female | SWITCH ELECTRIC MIRROR | X | |
| 9A | 8522575 Cable harness AREA,0,5-1,4 MM2 | X | |
| 10 | 9503475 Contact housing 6-pin, female | LH 2.4,JOINT PIECE CABLE NETWORK ENGINE/FRONT | X | |
| 10A | 8547804 Connector AREA 2,5-4,0 MM2 | X | |
| 11 | 9506668 Contact housing 6-pin, male | JOINT PIECE CABLE NET- WORK MOTOR/FRONT | X | |
| 11A | 8547770 Connector AREA 0,2-2,5 MM2 | X | |
| 12 | 8593931 Contact housing 6-pin, female | AIR MASS METER LH | X | |
| 12A | 8522617 Cable terminal AREA,1,0-2,6 MM2 | X | |
| 12B | 8582082 Protection | X |
