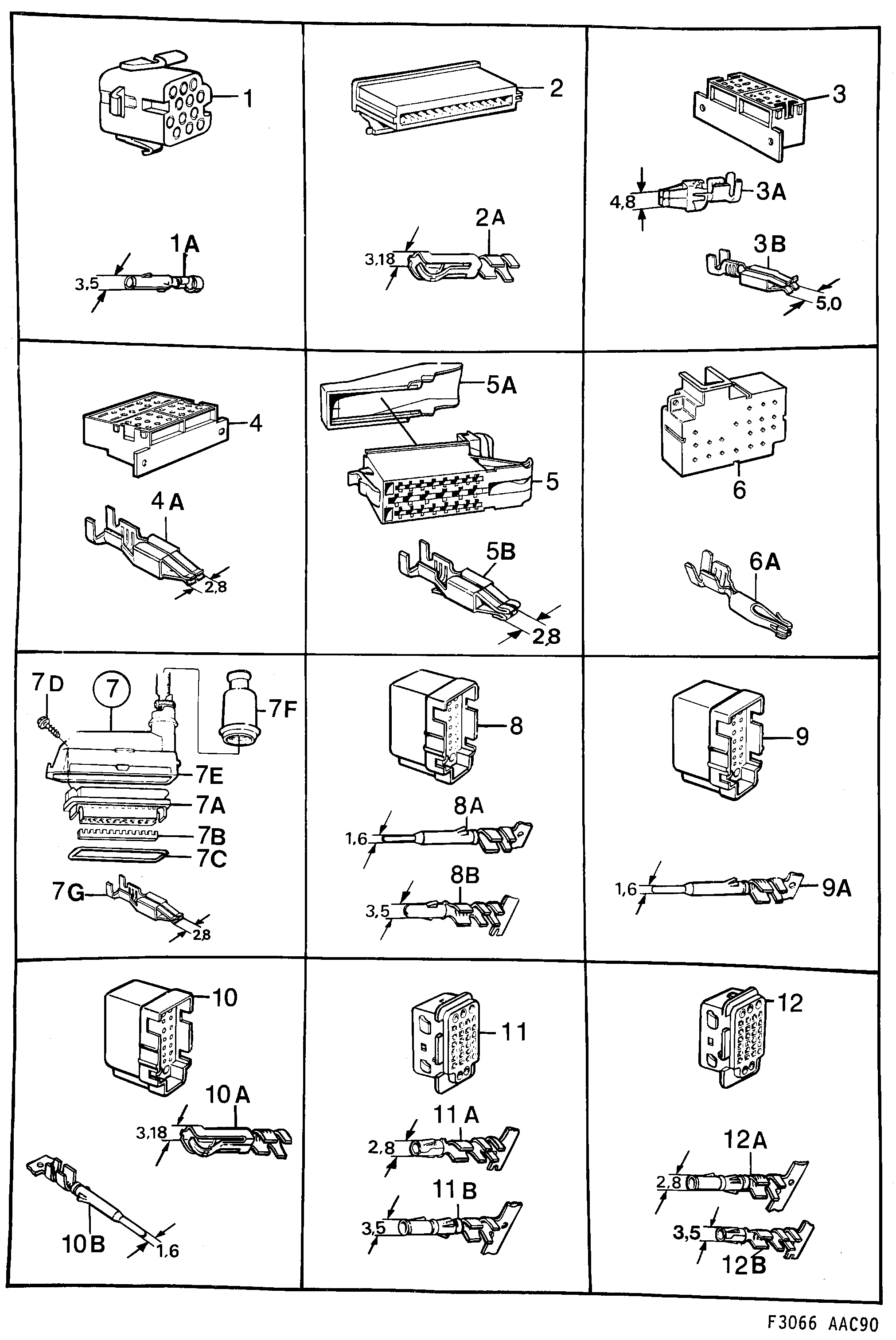

530: Electrical, connector - Wiring and fuses - Contact housing etc
(1991) | For 900 (1991)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8553497 Connector housing 12-pin, female | COWL | X | |
| 1A | 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 1A | 8544306 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 2 | 8544348 Contact housing 14-pin, female | INSTRUMENTS | X | |
| 2A | 8560278 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 3 | 9124199 Contact housing 18-pin, female | MAIN RELAY,RELAY FUEL PUMP,TIME RELAY,COWL, RELAY INSTRUMENT | X | |
| 3A | 9120783 30520556 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 3B | 9521972 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 4 | 9125543 Contact housing 18-pin, female | ABS,RELAY MAIN/ENGINE | X | |
| 4A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 4A | 9120791 30520557 Cable terminal AREA,2,0-4,5 MM2 | X | |
| 5 | 4060893 Contact housing 19-pin, female | SWITCH CENTRE CONSOLE | X | |
| 5A | 4067617 Cover | X | |
| 5B | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 6 | 9527755 Contact housing 20-pin, female | ELECTRONIC UNIT AIR-BAG | X | |
| 6A | 9527771 Cable terminal AREA,0,5 MM2 | X | |
| 7 | 8586802 Contact housing 25-pin, female | APC,EZK | X | |
| 7A | 8587420 Contact housing | 1 | |
| 7B | 8587438 Striker plate Not as separate spare part. | 1 | |
| 7C | 8587453 Seal Not as separate spare part. | 1 | |
| 7D | 8587487 Screw Not as separate spare part. | 1 | |
| 7E | 8587503 Cover Not as separate spare part. | 1 | |
| 7F | 8587511 Rubber protection Not as separate spare part. | 1 | |
| 7G | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 8 | 8544215 Contact housing 29-pin, male | WHITE,COWL,JOINT PIECE CABLE HARNESS REAR/EL-DISTRIBUT. UNIT | X | |
| 8A | 8582603 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 8B | 8544322 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 9 | 8544231 Contact housing 29-pin, male | RED,COWL | X | |
| 9A | 8593956 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 9A | 8593964 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 10 | 8544256 Contact housing 29-pin, male | BLACK,COWL,JOINT PIECE CABLE HARNESS INSTRUMENTS/FRONT | X | |
| 10A | 8593956 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 10B | 8593964 Cable terminal AREA,0,0-1,5 MM2 | X | |
| 10B | 8582603 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 11 | 8544249 Contact housing 29-pin, female | JOINT PIECE CABLE HAR- NESS FRONT/INSTRUMENTS | X | |
| 11A | 8587560 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 11A | 8521726 8567075 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 11B | 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 12 | 8544207 Contact housing 29-pin, female | JOINT PIECE CABLE HAR- NESS EL-DISTRIBUT. UNIT/ REAR | X | |
| 12A | 8587560 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 12B | 8587552 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 12B | 8544306 Cable terminal AREA,2,0-4,0 MM2 | X |
