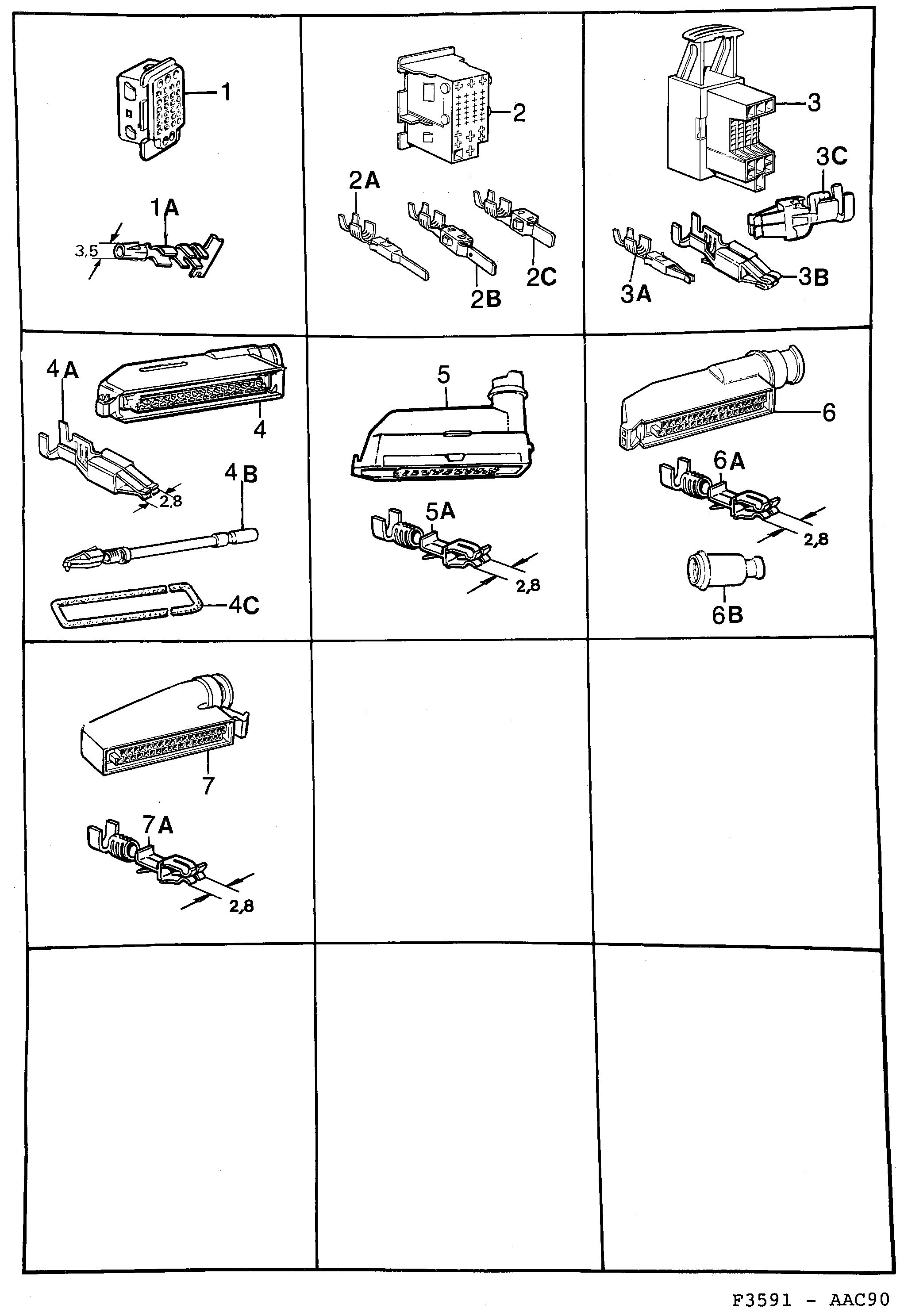

560: Electrical, connector - Wiring and fuses - Contact housing etc
(1991) | For 900 (1991)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8544223 Contact housing 29-pin, female | JOINT PIECE CABLE HAR- NESS REAR/EL-DISTR. UNIT | X | |
| 1A | 8544306 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 2 | 4173803 5241435 Contact housing 33-pin, male | CONNECTOR REAR CABLE HARNESS,CONNECTOR CABLE HARNESS INSTRUMENTS | X | |
| 2A | 4115457 12790614 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 2B | 4115077 12789934 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 2C | 4115580 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 3 | 4173852 12798080 Contact housing 33-pin, female | CONNECTOR REAR CABLE HARNESS,CONNECTOR CABLE HARNESS INSTRUMENTS | X | |
| 3A | 4115499 12790414 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 3B | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 3C | 9120783 30520556 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 4 | 8539363 Contact housing 35-pin, female | ELECTRONIC UNIT LAMBDA | X | |
| 4A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 4B | 8522617 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 4C | 9564204 Seal | X | |
| 5 | 9561093 Contact housing 35-pin, female | ELECTRONIC UNIT LH | X | |
| 5A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 6 | 4068441 Contact housing 35-pin, female | ELECTRONIC UNIT ABS | X | |
| 6A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 6B | 8587511 Rubber protection | X | |
| 7 | 9564618 Contact housing 40-pin, female | ELECTRONIC UNIT LUCAS IGNITION SYSTEM | X | |
| 7A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X |
