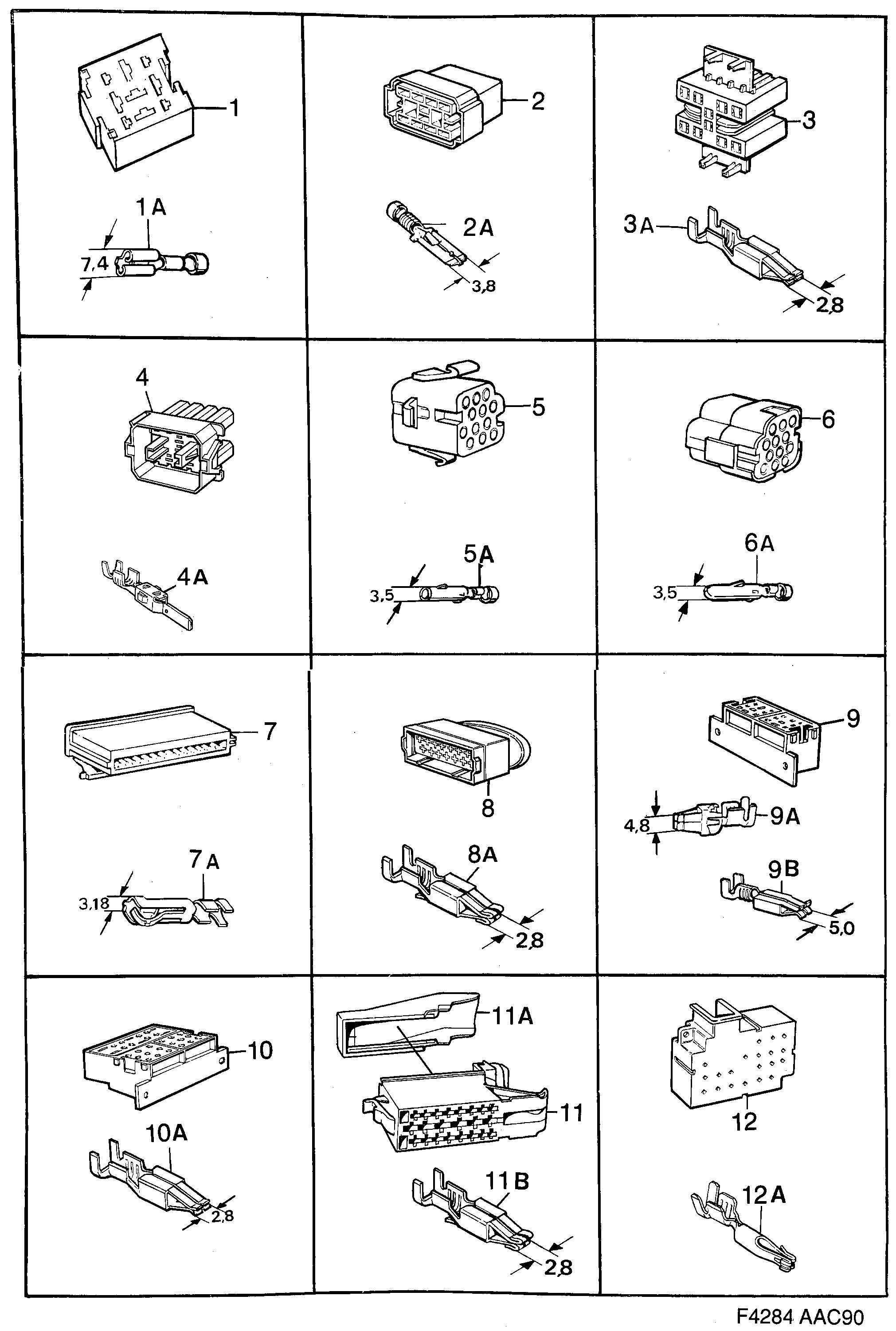

770: Electrical, connector - Wiring and fuses - Contact housing etc
(1992 - 1993) | For 900 (1992)
Also valid for CV 1994
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8571390 Bracket 9-pin, female | JOINT PIECE COWL | X | |
| 1A | 8522534 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 2 | 9122557 Connector housing 10-pin, male | JOINT PIECE CABLE HAR- NESS REAR/INSTRUMENTS, JOINT PIECE CABLE HAR- NESS AIR-BAG/INSTRUMENTS | X | |
| 2A | 9552100 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 3 | 9123399 12764801 Connector housing 10-pin, female | RADIO,EL-PAD DRIVER SWITCH REAR DEMIST, SWITCH FOG LIGHT,SWITCH FLASHER,SWITCH FOG LIGHT FRONT EXTRA,JOINT PIECE CABLE HARNESS REAR/INST- RUMENT,JOINT PIECE CABLEHARNESS INSTRUMENT/ AIR-BAG,SWITCH HEA | X | |
| 3A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 3A | 9508714 12789796 Cable terminal AREA,0,3-0,6 MM2 | X | |
| 4 | 4117461 Connector housing 10-pin, female | RADIO,INSTRUMENTS TEST ENGINE ELCTRONIC, ADJUSTMENT EL-PAD | X | |
| 4A | 4115077 12789934 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 5 | 8553497 Connector housing 12-pin, female | COWL | X | |
| 5A | 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 5A | 8544306 Cable terminal AREA,2,0-4,0 MM2 | X | |
| 6 | 8553505 Contact housing 12-pin, male | INSTRUMENTS | X | |
| 6A | 8582603 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 7 | 8544348 Contact housing 14-pin, female | INSTRUMENTS | X | |
| 7A | 8560278 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 8 | 4109278 Connector housing 15-pin, female | ELECTRONIC UNIT SPEED CONTROL | X | |
| 8A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 9 | 9124199 Contact housing 18-pin, female | MAIN RELAY,RELAY FUEL PUMP,COWL,RELAY INST- RUMENTS | X | |
| 9A | 9120783 30520556 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 9A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 9B | 9521972 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 10 | 9125543 Contact housing 18-pin, female | ABS,RELAY MAIN/ENGINE | X | |
| 10A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 10A | 9120791 30520557 Cable terminal AREA,2,0-4,5 MM2 | X | |
| 11 | 4060893 Contact housing 19-pin, female | SWITCH CENTRE CONSOLE | X | |
| 11A | 4067617 Cover | X | |
| 11B | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 12 | 9527755 Contact housing 20-pin, female | ELECTRONIC UNIT AIR-BAG | X | |
| 12A | 9527771 Cable terminal AREA,0,5 MM2 | X |
