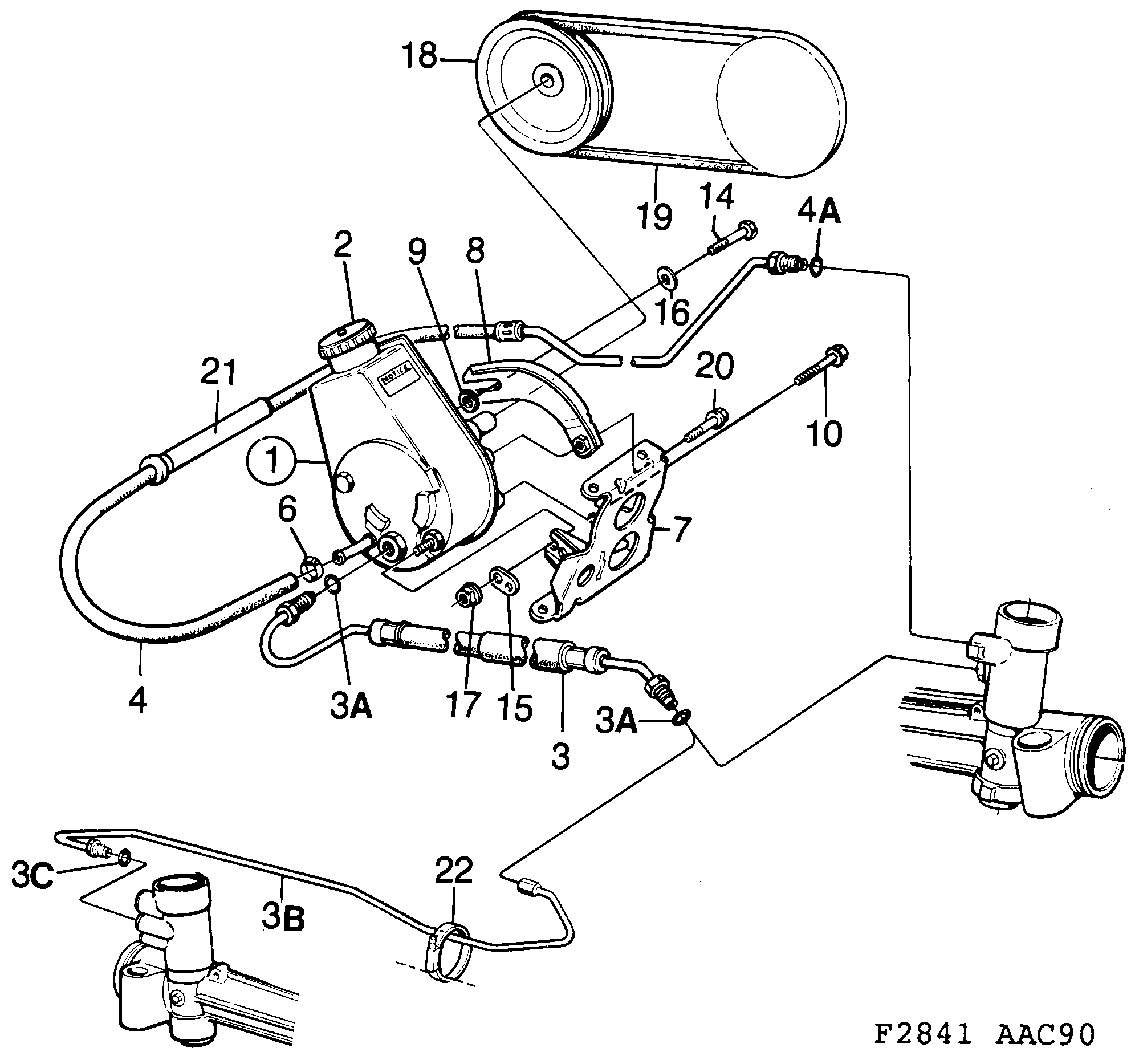

230: Steering - Steering assembly - Pump, hydraulic oil
(1990 - 1993) | For 900 (1992)
Cars without rear hydraulic engine mounting | Also valid for CV 1994
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9101577 Pump, hydraulic oil Cars without rear hydraulic engine mounting | 1 | |
| 2 | 8943979 Cover | 1 | |
| 3 | 8942575 Hose | 1 | |
| 3A | 4104048 O-ring 1990- | 2 | |
| 3B | 8940678 Delivery pipe RHD | 1 | |
| 3C | 7977580 O-ring 1990-, RHD | 1 | |
| 4 | 8948333 Hose | 1 | |
| 4 | 8948341 Hose RHD | 1 | |
| 4A | 7977580 O-ring 1990- | 1 | |
| 6 | 7963507 7970049 Hose clamp | 1 | |
| 7 | 9325705 Bracket | 1 | |
| 8 | 9325713 Brace | 1 | |
| 9 | 9324914 Spacer ring | 1 | |
| 10 | 7967946 Screw | 1 | |
| 14 | 8148215 Screw | 1 | |
| 15 | 9338542 Washer | 1 | |
| 16 | 8073108 Washer | 1 | |
| 17 | 7967979 Nut | 1 | |
| 18 | 8986051 Pulley | 1 | |
| 19 | 9361791 Belt, v ribbed | 1 | |
| 20 | 8082927 Screw | 1 | |
| 21 | 8944001 Sleeve | 1 | |
| 22 | 7970130 92153077 Hose clamp RHD | 1 | |
8989840 Gasket kit | X |
