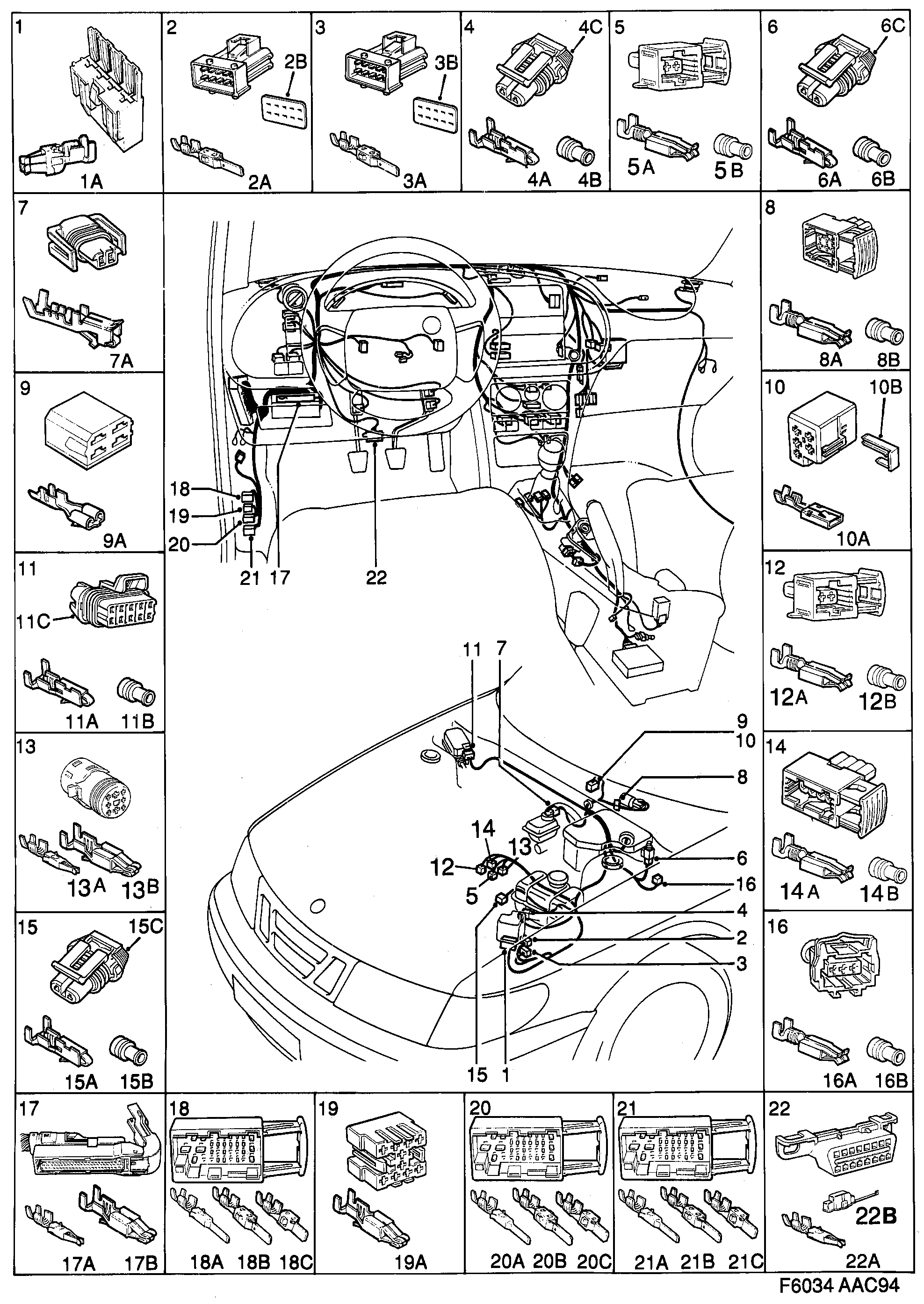

450: Electrical, connector - Contact housing etc - Instrument panel
(1994) | For 900 (1994)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 10 | 4463014 12793897 Connector housing 5-pin, female fan motor | 1 | |
| 10A | 4412961 12756961 Cable terminal AREA 4,0-6,0 MM2 | 4 | |
| 10B | 4463022 Locking | 1 | |
| 11 | 4203568 Connector housing 10-pin, female speed control system | 1 | |
| 11A | 4418505 Cable terminal AREA 0,5-1,0 MM2 | 10 | |
| 11B | 4419313 Seal blue | 10 | |
| 11C | 4203576 Locking | 1 | |
| 12 | 4113205 12788933 Connector housing 2-pin, female input shaft speed sensor gearbox | 1 | |
| 12A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | 2 | |
| 12B | 4061966 Seal AREA 1,2-2,0 MM2 | 2 | |
| 13 | 4466462 Connector housing 8-pin, female actuator ACS | 1 | |
| 13A | 4115499 12790414 Cable terminal AREA 0,5-1,0 MM2 | 5 | |
| 13B | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 2 | |
| 14 | 4113601 12788993 Connector housing 4-pin, female sensor gearbox | 1 | |
| 14A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | 4 | |
| 14B | 4061966 Seal AREA 1,2-2,0 MM2 | 4 | |
| 15 | 4201224 12790252 Connector housing 2-pin, female reversing light switch | 1 | |
| 15A | 4418505 Cable terminal AREA 0,5-1,0 MM2 | 2 | |
| 15B | 4419313 Seal blue | 2 | |
| 15C | 4201232 12789184 Locking | 1 | |
| 16 | 4432316 12790262 Connector housing 3-pin, female acceleration sensor | 1 | |
| 16A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | 3 | |
| 16B | 4061966 Seal AREA 1,0-2,0 MM2 | 3 | |
| 17 | 4176616 Connector housing 70-pin, female ICE | 1 | |
| 17A | 4115499 12790414 Cable terminal AREA 0,5-1,0 MM2 | 49 | |
| 17B | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 10 | |
| 18 | 4173852 12798080 Contact housing 33-pin, male connection | 1 | |
| 18A | 4115457 12790614 Cable terminal AREA 0,5-1,0 MM2 | 22 | |
| 18B | 4115077 12789934 Cable terminal AREA 1,0-2,5 MM2 | 6 | |
| 18C | 4115580 Cable terminal AREA 1,0-2,5 MM2 | 1 |
