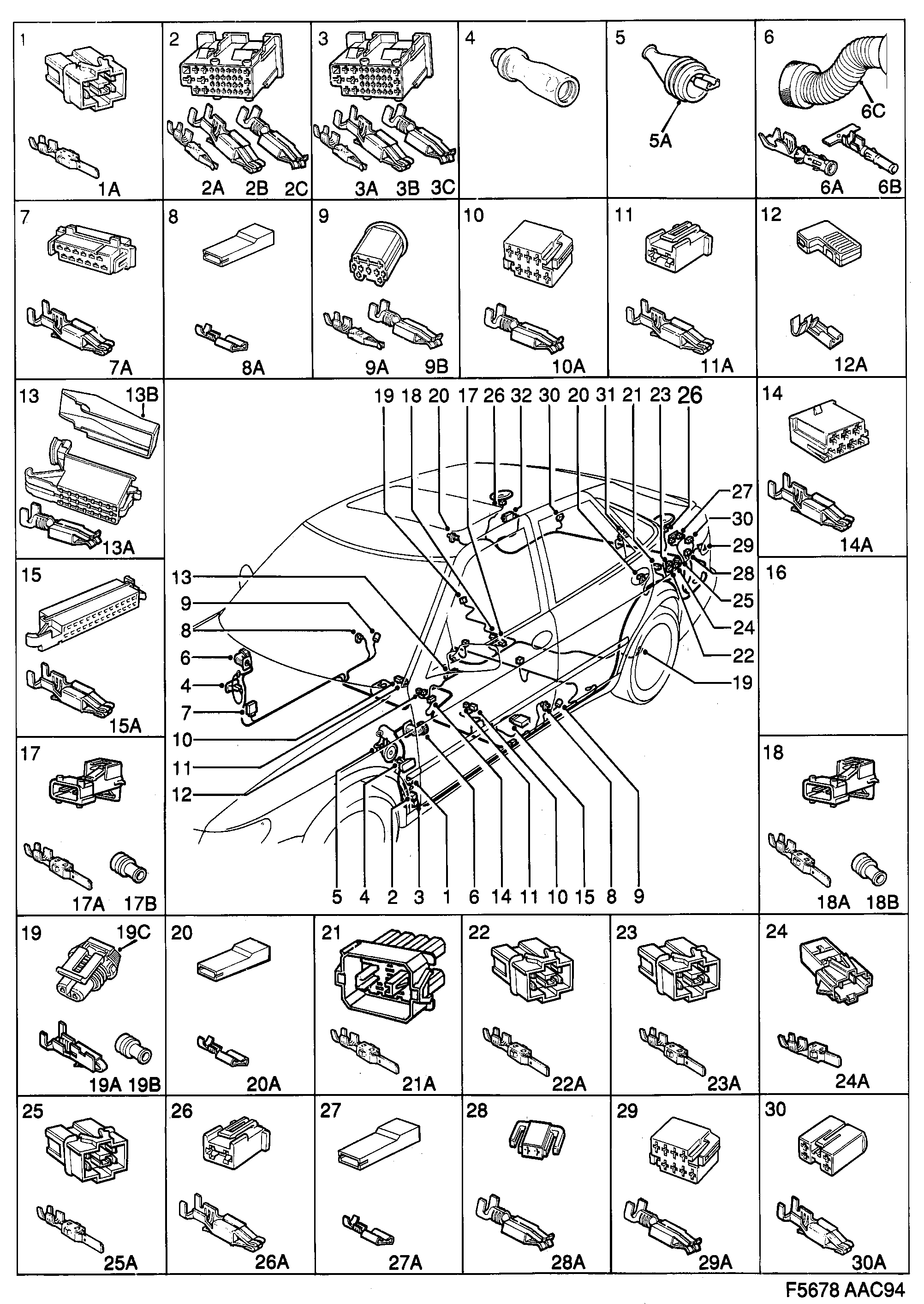

750: Electrical, connector - Contact housing etc - Rear
(1994) | For 900 (1994)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 11 | 9123548 12790106 Contact housing 2-pin, female front seat | 1 | |
| 11A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 2 | |
| 12 | 8521692 Contact housing 1-pin, female lighting ignition switch | 1 | |
| 12A | 8522526 Cable terminal AREA 0,5-1,5 MM2 | 1 | |
| 13 | 4060893 Contact housing 19-pin, female window lift | 1 | |
| 13A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 13 | |
| 13A | 9120791 30520557 Cable terminal AREA 1,0-2,5 MM2 | 5 | |
| 13B | 4067617 Cover | 1 | |
| 14 | 9123381 Contact housing 7-pin, female interior lighting | 1 | |
| 14A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 4 | |
| 15 | 4201323 Connector housing 25-pin, female anti-theft alarm | 1 | |
| 15A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 19 | |
| 17 | 4113254 Connector housing 2-pin, male fuel pump | 1 | |
| 17A | 4115192 12789934 Cable terminal AREA 1,0-2,5 MM2 | 2 | |
| 17B | 4352928 Seal AREA 2,7-2,9 MM2 | 2 | |
| 18 | 4113254 Connector housing 2-pin, male fuel pump | 1 | |
| 18A | 4115192 12789934 Cable terminal AREA 1,0-2,5 MM2 | 2 | |
| 18B | 4061966 Seal AREA 1,2-2,0 MM2 | 2 | |
| 19 | 4203428 12797800 Connector housing 2-pin, female sensor, ABS | 1 | |
| 19A | 4418505 Cable terminal AREA 0,5-1,0 MM2 | 2 | |
| 19B | 4419305 Seal red | 1 | |
| 19B | 4419313 Seal blue | 1 | |
| 19C | 4201232 12789184 Locking | 1 | |
| 20 | 8516916 Insulation 1-pin, female switch | 1 | |
| 20A | 4409801 Cable terminal AREA 0,5-1,0 MM2 | 1 | |
| 21 | 4117461 Connector housing 10-pin, male connection | 1 | |
| 21A | 4115077 12789934 Cable terminal AREA 1,0-2,5 MM2 | 8 |
