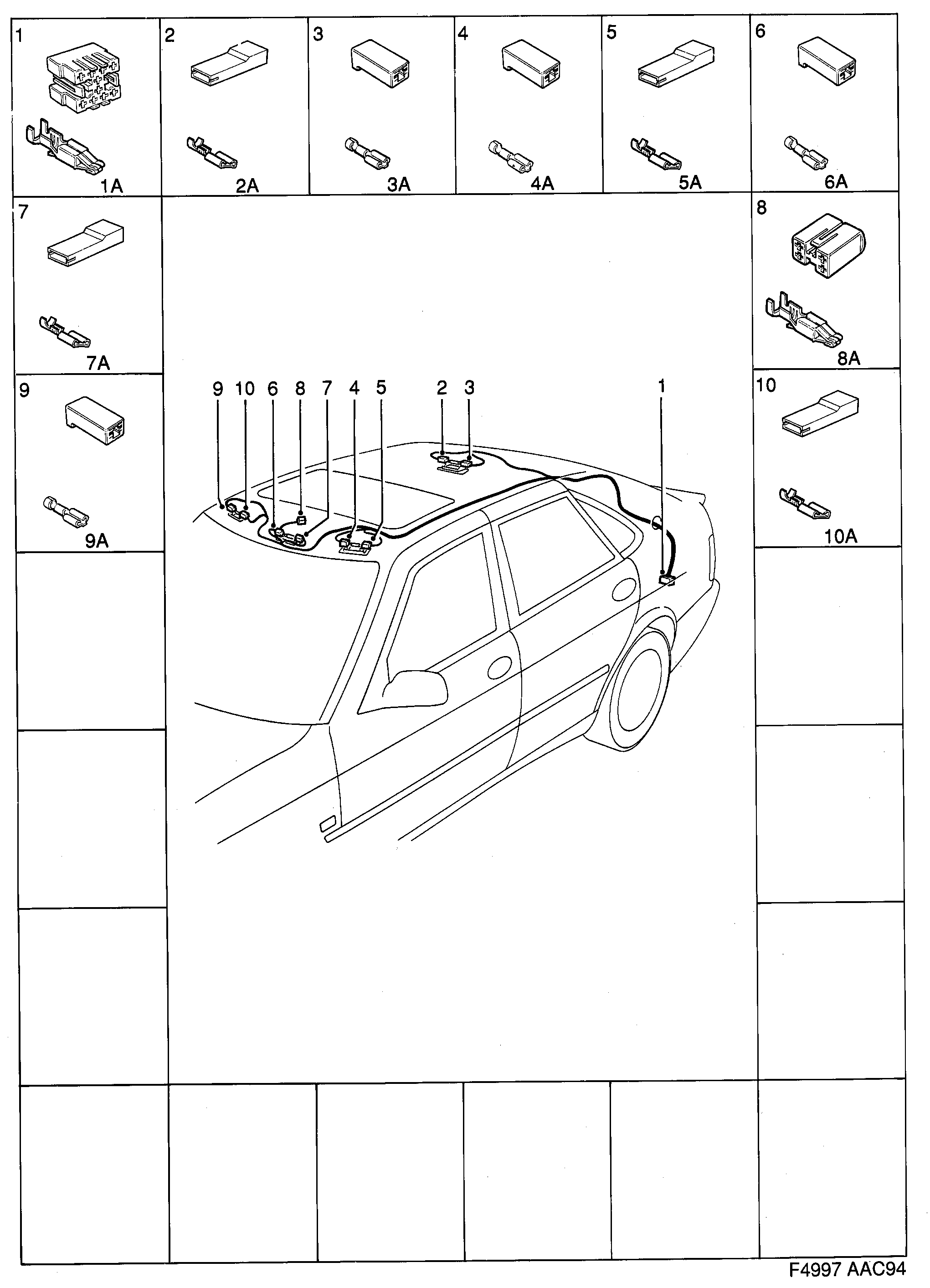

840: Electrical, connector - Contact housing etc - Roof
(1994) | For 900 (1994)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9123399 12764801 Connector housing 10-pin, female connection | 1 | |
| 1A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 8 | |
| 2 | 8516916 Insulation 1-pin, female interior lighting | 1 | |
| 2A | 4409801 Cable terminal AREA 0,5-1,0 MM2 | 1 | |
| 3 | 8533184 Contact housing 1-pin, female interior lighting | 1 | |
| 3A | 8582439 Cable terminal AREA 0,5-1,5 MM2 | 1 | |
| 4 | 8533184 Contact housing 1-pin, female vanity mirror | 1 | |
| 4A | 8504797 Cable terminal AREA 0,5-1,5 MM2 | 1 | |
| 5 | 8516916 Insulation 1-pin, female vanity mirror | 1 | |
| 5A | 4409801 Cable terminal AREA 0,5-1,0 MM2 | 1 | |
| 6 | 8533184 Contact housing 1-pin, female interior lighting | 1 | |
| 6A | 8582439 Cable terminal AREA 0,5-1,5 MM2 | 1 | |
| 7 | 8516916 Insulation 1-pin, female vanity mirror | 1 | |
| 7A | 4409801 Cable terminal AREA 0,5-1,0 MM2 | 1 | |
| 8 | 9123555 Contact housing 4-pin, female sunroof | 1 | |
| 8A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 3 | |
| 9 | 8533184 Contact housing 1-pin, female vanity mirror | 1 | |
| 9A | 8504797 Cable terminal AREA 0,5-1,5 MM2 | 1 | |
| 10 | 8516916 Insulation 1-pin, female vanity mirror | 1 | |
| 10A | 4409801 Cable terminal AREA 0,5-1,0 MM2 | 1 |
