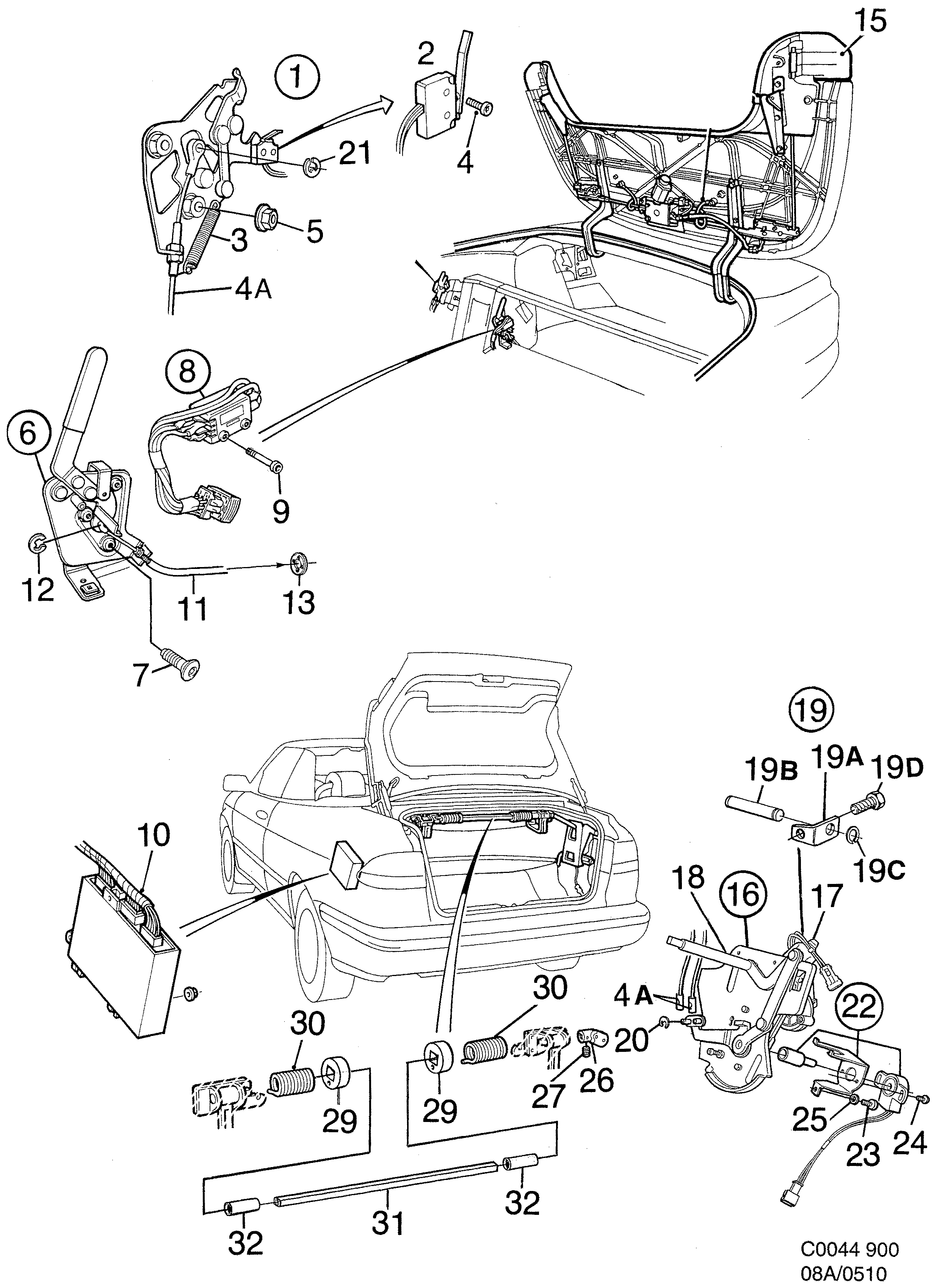

510: Car body, external - Body shell - Soft top cover - Part 1
(1994 - 1998) | For 900 (1994)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 5184650 Lock tonneau cover | LH | 1 | |||
| 1 | 5184668 Lock tonneau cover | RH | 1 | |||
| 2 | 5184528 Microswitch -1995 | Lever 25 mm | 1 | |||
| 3 | 4558862 Tension spring | 1 | |||
| 4 | 4559381 Screw | 2 | |||
| 4A | 4557971 4856191 Cable 1994-1997 | LH | 1 | |||
| 4A | 4557989 4856209 Cable 1994-1997 | RH | 1 | |||
| 5 | 4347480 11074604 Nut | 4 | |||
| 6 | 4494530 Control rod | 1 | |||
| 7 | 7978661 Hexagon screw 1994-1995 | 3 | |||
| 8 | 4556478 Contact | 1 | |||
| 9 | 4555652 Screw | 2 | |||
| 10 | 4558144 Control unit -1995 | Also available as exchange unit. soft top | 1 | |||
| 11 | 4557997 Cable | 1 | |||
| 12 | 8123440 Clip | 1 | |||
| 13 | 4558342 Lock washer | 1 | |||
| 15 | 1 | ||||
| 16 | 4557898 4859419 Control 1994-1997 | 1 | |||
| 17 | 4558003 Motor | 1 | |||
| 18 | 4557906 Link arm | 1 | |||
| 19 | 4613519 Reinforcement kit | 1 | |||
| 19A | 4859252 Bracket Not as separate spare part. | 2 | |||
| 19B | 4859260 Pin Not as separate spare part. | 6 MM | 1 | |||
| 19C | 8047623 Lock ring | 2 | |||
| 19D | 8059552 92151821 Screw | 2 | |||
| 20 | 4494506 8123440 Clip -1995 | 2 | |||
| 21 | 4494506 8123440 Clip -1995 | 1 | |||
| 22 | 4558771 Potentiometer | 1 | |||
| 23 | 4555637 Screw | 2 | |||
| 24 | 8059230 92151805 Screw | 2 | |||
| 25 | 4555926 Washer | 2 | |||
| 26 | 5113402 Universal joint (4307401) | 1 | |||
| 27 | 4555686 7985963 Screw | 4 | |||
| 29 | 4556296 Sleeve | 2 | |||
| 30 | 4494514 Spring LH | 1 | |||
| 30 | 4494522 Spring RH | 1 | |||
| 31 | 4492898 Shaft | 1 | |||
| 32 | 4557344 Pipe bracket | 2 | |||
