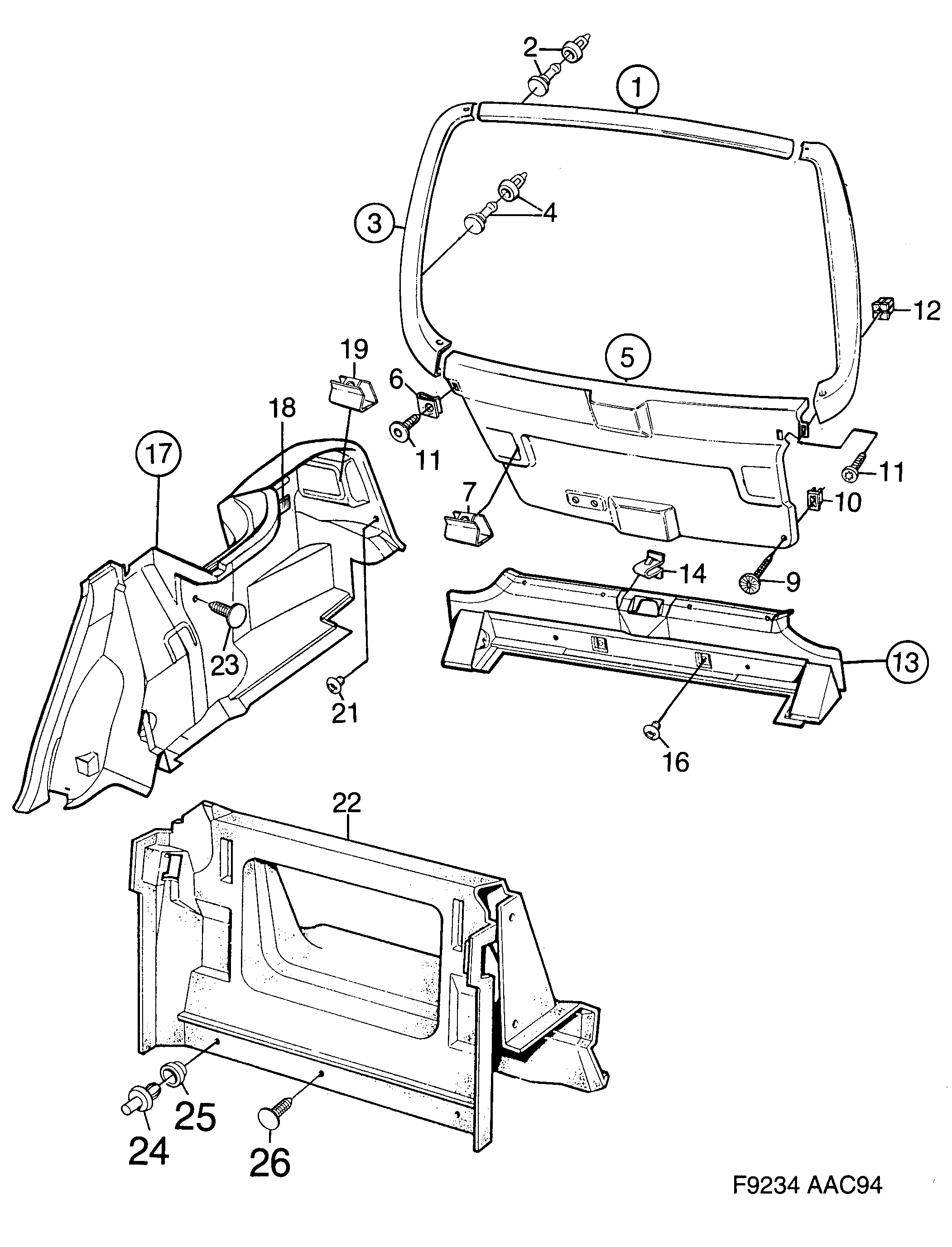

420: Car body, internal - Upholstery - Luggage compartment
(1994 - 1998) | For 900 (1994)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 4389474 Crash pad | 1 | |||
| 2 | 4266540 Clip | 5 | |||
| 3 | 4389490 Crash pad LH | 1 | |||
| 3 | 4389516 Crash pad RH | 1 | |||
| 4 | 4266540 Clip | 3 | |||
| 5 | 4389532 Upholstery | 1 | |||
| 5 | 4370771 5298666 Upholstery | 1 | |||
| 6 | 7968001 Clip nut | 2 | |||
| 7 | 4140315 Clamp | 2 | |||
| 9 | 9491689 Special screw | X | |||
| 9 | 9464926 Special screw | X | |||
| 10 | 8452898 Quick nut | X | |||
| 11 | 9771320 Screw | 2 | |||
| 12 | 7975261 Nut | 2 | |||
| 13 | 4389458 4640678 Moulding, sill panel -1994 | 1 | |||
| 14 | 4388757 12763576 Clamp | 4 | |||
| 16 | 4087284 Push nut -1994 | 2 | |||
| 17 | 4470274 Luggage compartment trim/lining -2009 | LH | 1 | |||
| 17 | 4470282 Luggage compartment trim/lining -2009 | RH | 1 | |||
| 17 | 4607859 Luggage compartment trim/lining LH | 1 | |||
| 17 | 4607867 Luggage compartment trim/lining RH | 1 | |||
| 17 | 4370755 4747465 Luggage compartment trim/lining -1997 | LH | 1 | |||
| 17 | 4370763 Luggage compartment trim/lining -1997 | RH | 1 | |||
| 18 | |||||
| 19 | 4140315 Clamp | 1 | |||
| 21 | 4087284 Push nut 1994-1995 | X | |||
| 22 | 4370961 Upholstery | 1 | |||
| 23 | 9668153 92152407 Clip | X | |||
