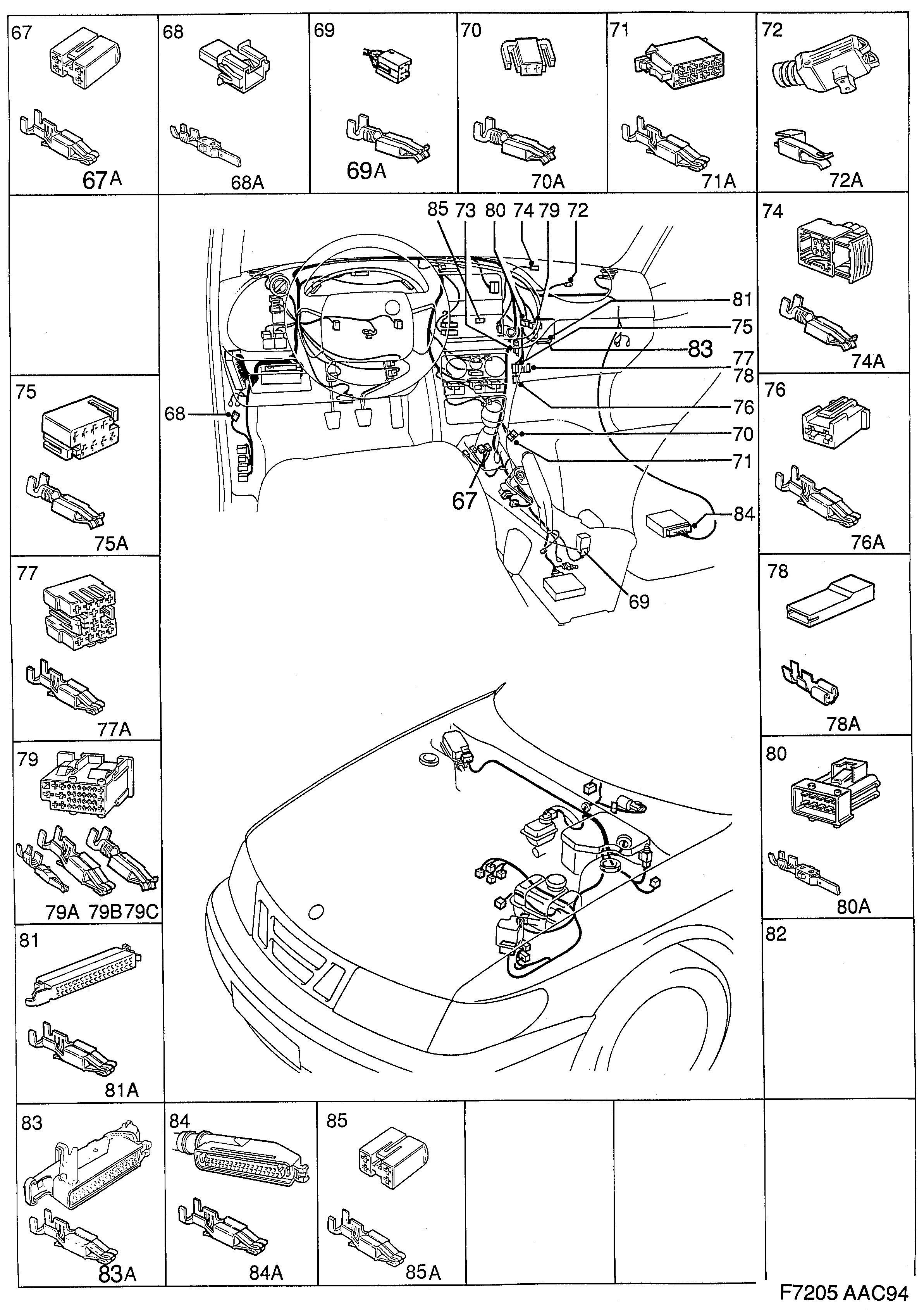

1560: Electrical, connector - Contact housing etc - Instrument panel
(1995) | For 900 (1995)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 79 | 4173803 5241435 Contact housing 33-pin, female connection | 1 | |
| 79A | 4115499 12790414 Cable terminal AREA 0,5-1,0 MM2 | 23 | |
| 79B | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 7 | |
| 79C | 9120791 30520557 Cable terminal AREA 2,5-4,0 MM2 | 2 | |
| 80 | 4114054 12788959 Connector housing 10-pin, male connection | 1 | |
| 80A | 4115077 12789934 Cable terminal AREA 1,0-2,5 MM2 | 10 | |
| 81 | 4203659 Connector housing 35-pin, female electronic unit TCM | 1 | |
| 81A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 34 | |
| 83 | 4222311 Connector housing 55-pin, female electronic unit ACS | 1 | |
| 83A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 33 | |
| 84 | 4410619 30552540 Connector housing 35-pin, female electronic unit TCS | 1 | |
| 84A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | 23 | |
| 85 | 9123555 Contact housing radio | AREA 1,0-2,5 MM2 | 1 |
