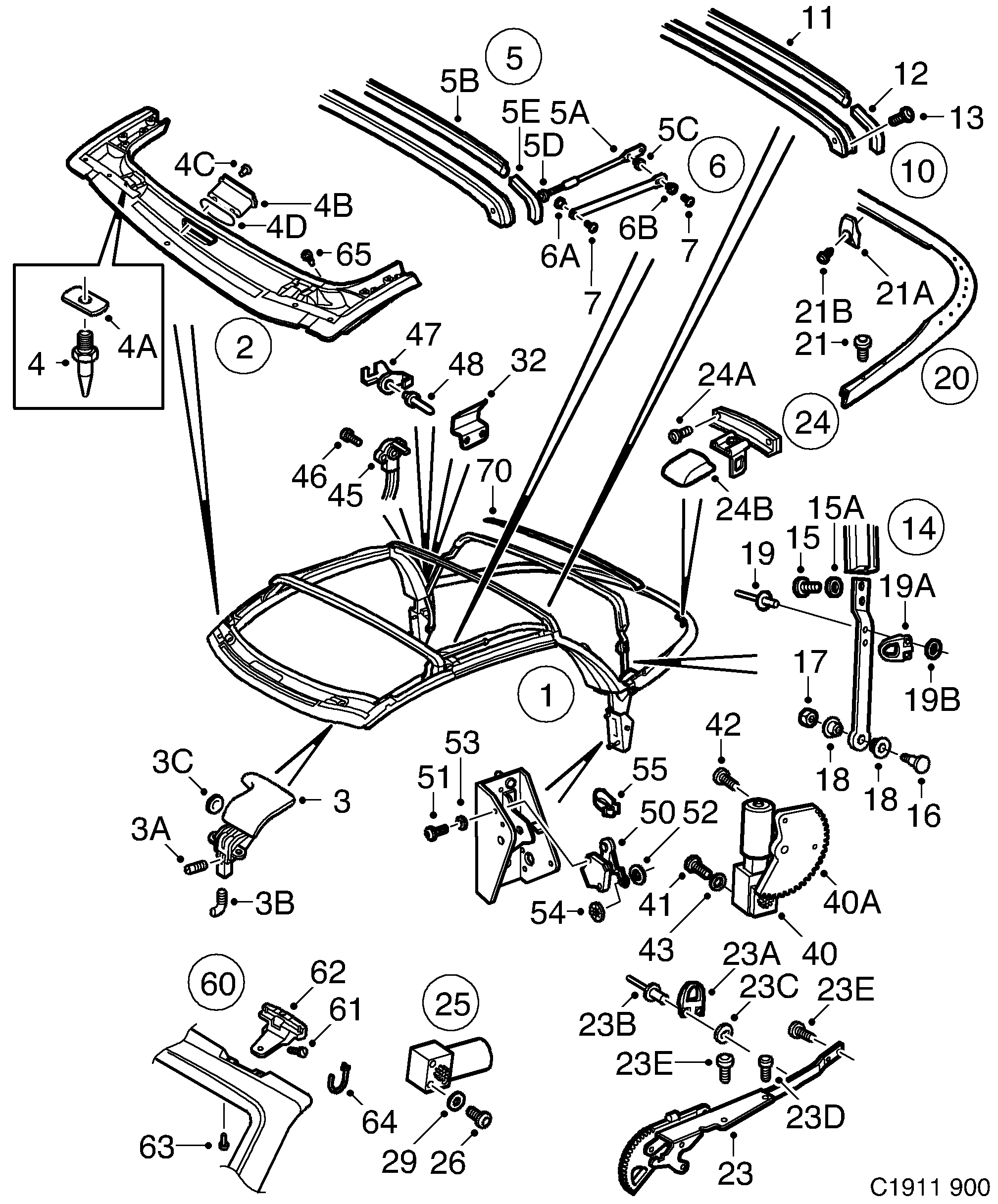

420: Car body, external - Body shell - Bow 1, 2, 3, 4 and 5
(1994 - 1996 | CV) | For 900 (1995)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4556486 4857173 Top stack | 1 | |
| 2 | 4556411 4696571 Bow BOW No1 | 1 | |
| 3 | 4494811 4698213 Lock 1994-1995 | LH | 1 | |
| 3 | 4494829 4698221 Lock 1994-1995 | RH | 1 | |
| 3A | 4859781 Screw | 2 | |
| 3B | 4556494 Hook 1994-1995 | 2 | |
| 3C | 4556502 Extension 1994-1995 | 2 | |
| 4 | 4766895 Locating pin | 2 | |
| 4A | 4859799 Nut | 1 | |
| 4B | 4859765 Pocket | 1 | |
| 4C | 7974421 Screw | 2 | |
| 4D | 4901393 Sealing profile | 1 | |
| 5 | 4697223 4850749 Bow BOW No2 | 1 | |
| 5A | 4697280 Link arm LH | 1 | |
| 5A | 4696811 Link arm RH | 1 | |
| 5B | 4901385 Sealing profile See SI 811-1765 | 1 | |
| 5C | 4696829 Bushing | 2 | |
| 5D | 4901153 Nut | 2 | |
| 5E | 4857645 Tape See SI 811-1809 | 2 | |
4767513 Link rod kit | X | ||
| 6 | 4697298 Link arm | 1 | |
| 6A | 4696829 Bushing | 3 | |
| 6B | 4767455 Bushing | 1 | |
| 7 | 4696837 Bolt | 3 | |
| 10 | 4494753 4850756 Bow BOW No3 | 1 | |
| 11 | 4901385 Sealing profile See SI 811-1765 | 1 | |
| 12 | 4857645 Tape See SI 811-1809 | 2 | |
| 13 | 4555629 Screw | 4 | |
| 14 | 4494761 4851796 Bow -1995 | BOW No4 | 1 | |
| 14 | 4697512 4851796 Bow 1995-1995 | BOW No4 | 1 | |
| 15 | 4555629 Screw | 4 | |
| 15A | 4555967 Washer | 4 | |
| 16 | 4555843 Bolt | 2 | |
| 17 | 4556080 Nut | 2 | |
| 18 | 4556106 Bushing | 4 | |
| 19 | 4696894 Rivet | 4 | |
| 19A | 4696886 Stop plate | 2 | |
| 19B | 8029944 Washer | 4 | |
| 20 | 4494787 Bow BOW No5 | 1 | |
| 21 | 4555736 Screw | 4 | |
| 21A | 4697272 Guide | 1 | |
| 21B | 4856993 Screw | 1 | |
| 23 | 5360169 Drive arm with gear segment | LH | 1 | |
4850798 Bracket Not as separate spare part. with gear segment | LH | 1 | ||
8073108 Washer | 1 | ||
| 23 | 5360177 Drive arm with gear segment | RH | 1 | |
4850806 Bracket Not as separate spare part. with gear segment | RH | 1 | ||
8073108 Washer | 1 | ||
| 23A | 4696886 Stop plate | 2 | |
| 23B | 4696894 Rivet | 4 | |
| 23C | 8029944 Washer | 4 | |
| 23D | 4555629 Screw | 2 | |
| 23E | 4856993 Screw | 4 | |
| 24 | 4850814 Striker LH | 1 | |
| 24 | 4850822 Striker RH | 1 | |
| 24A | 4856993 Screw | 4 | |
| 24B | 4559431 Cover -1995 | See Service Manual. | LH | 1 | |
| 24B | 4559456 Cover -1995 | See Service Manual. | RH | 1 | |
| 25 | 4850707 Electric motor LH | 1 | |
| 25 | 4850616 Electric motor RH | 1 | |
| 26 | 4555710 Screw M6x16 | 3 | |
| 29 | 4555959 Washer | 3 | |
| 32 | 4559951 Cover | 2 | |
| 40 | 4850715 Electric motor LH | 1 | |
| 40 | 4850624 Electric motor RH | 1 | |
| 40A | 4857264 Ratchet LH | 1 | |
| 40A | 4857256 Ratchet RH | 1 | |
| 41 | 8059628 Screw M6x35 | 4 | |
| 42 | 4555850 Bolt | 2 | |
| 43 | 4555959 Washer | 4 | |
| 45 | 4696985 Potentiometer RH | 1 | |
| 46 | 4555785 Screw | 2 | |
| 47 | 4559407 Bracket | 1 | |
| 48 | 7972516 92153060 Rivet | 1 | |
| 50 | 4697017 Potentiometer | 1 | |
| 51 | 4555637 Screw | 2 | |
| 52 | 4555926 Washer | 2 | |
| 53 | 4555983 Washer | 1 | |
| 54 | 4556098 Quick nut | 1 | |
| 55 | 4557658 Clip | 4 | |
| 60 | 4695987 Lock | 2 | |
| 61 | 4685095 Screw | 2 | |
| 62 | 4695979 Microswitch | 1 | |
| 63 | 7975451 Screw | 6 | |
| 64 | 8552663 Tensioning band | 2 | |
| 65 | 4556015 4696894 Blind rivet | 6 | |
| 65 | 4767752 Screw ALTERNATIVE | 6 | |
| 70 | 5360540 Mounting strap Part of the following kits: 53 60 136, 53 60 144, 48 51 796. | 1 | |
4695870 Tape 1995- | 1 | ||
5360557 Repair kit | X | ||
4555868 Bolt | 8 | ||
4555991 Washer | 6 | ||
4556106 Bushing | 12 | ||
4556114 Bushing | 4 | ||
4556130 Bushing | 10 | ||
4556239 Plug | 6 | ||
4696829 Bushing | 3 | ||
4696837 Bolt | 4 | ||
4767455 Bushing | 1 | ||
6952014 Bushing | 4 |
