Où trouver le schéma de Other interior equipment pour Saab 900 ?

Accédez au schéma éclaté officiel et à la liste complète des pièces pour la section Other interior equipment de votre Saab 900 1995. Notre outil interactif permet de visualiser chaque composant en détail et d'identifier instantanément sa référence Saab d'origine pour un entretien certifié.

Les numéros de pièces Saab sont-ils à jour ?

Oui, notre explorateur inclut l'intégralité des références d'origine Saab (OEM) ainsi que les codes de remplacement NLS-USE (No Longer Supplied - Use). Cela vous permet de suivre l'évolution des pièces officiellement remplacées et d'assurer une compatibilité totale avec les stocks actuels de pièces de rechange.

Quelles sont les motorisations Saab compatibles avec la section 570 ?

La section 570 (Other interior equipment) est spécifiquement documentée pour être compatible avec les motorisations indiquées dans la liste technique. Vous pouvez vérifier la compatibilité exacte en utilisant notre filtre de recherche par numéro de châssis (VIN).

Back to Models Back to Groups

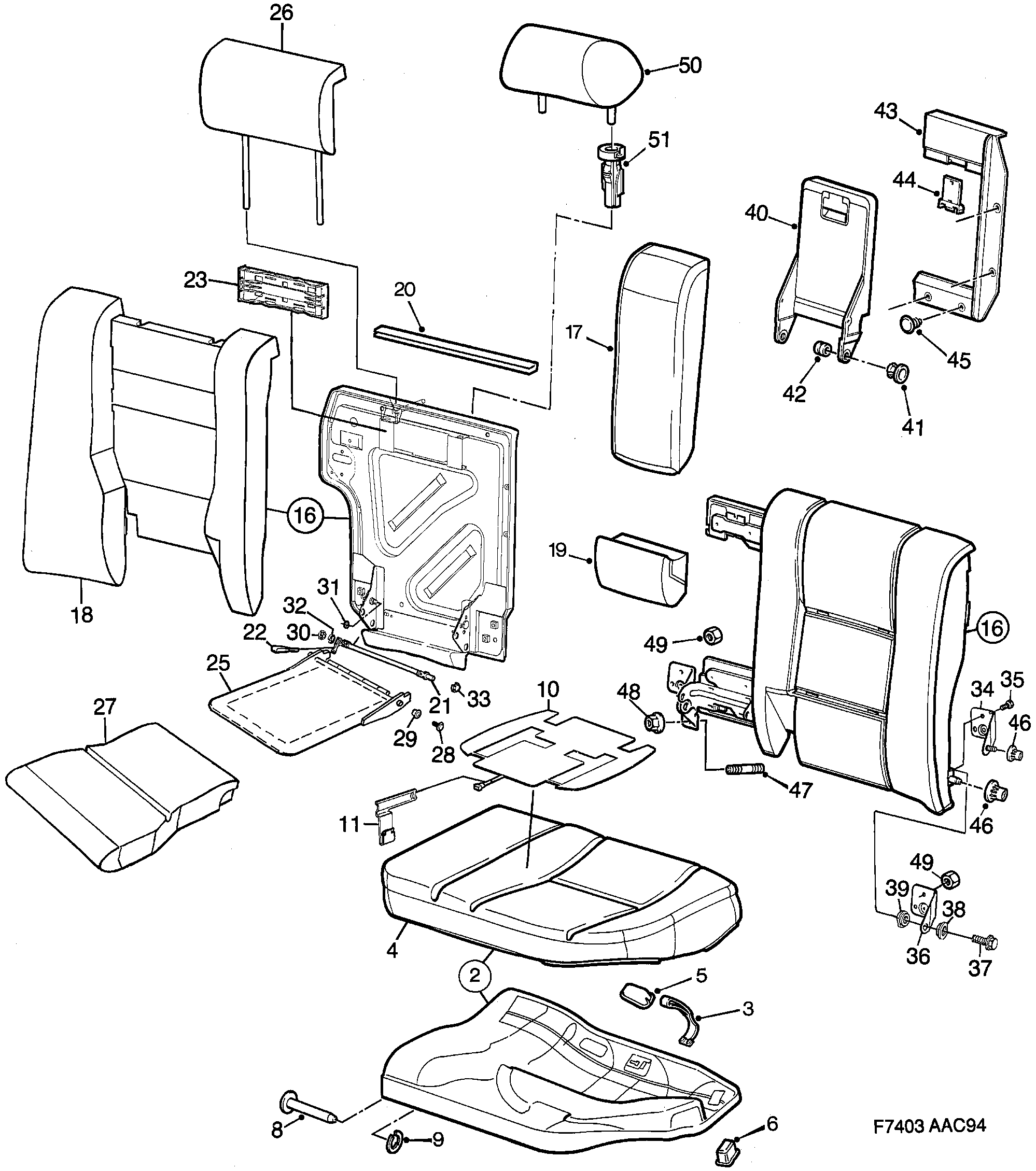

570: Car body, internal - Other interior equipment - Rear seat

(1994 - 1998 | 4D, 5D) | For 900 (1995)

Pos.	Part No.	Description	Usage	Qty
2	4630877 Seat cushion 1994- \| Complete seat cushions are not available as a spare part. To obtain a complete seat cushion, order the following separate spare parts: seat cushion, covers and mounting kit. \| LH	Seat cushion	1994- Complete seat cushions are not available as a spare part. To obtain a complete seat cushion, order the following separate spare parts: seat cushion, covers and mounting kit. LH	1
2	4630885 Seat cushion 1994- \| Complete seat cushions are not available as a spare part. To obtain a complete seat cushion, order the following separate spare parts: seat cushion, covers and mounting kit. \| RH	Seat cushion	1994- Complete seat cushions are not available as a spare part. To obtain a complete seat cushion, order the following separate spare parts: seat cushion, covers and mounting kit. RH	1
2	4533162 Seat cushion 1994-1995 \| Complete seat cushions are not available as a spare part. To obtain a complete seat cushion, order the following separate spare parts: seat cushion, covers and mounting kit. Replaced by kit 4761318, which consists of 4657375 and 4657342. \| LH	Seat cushion	1994-1995 Complete seat cushions are not available as a spare part. To obtain a complete seat cushion, order the following separate spare parts: seat cushion, covers and mounting kit. Replaced by kit 4761318, which consists of 4657375 and 4657342. LH	1
2	4533154 Seat cushion 1994-1995 \| Complete seat cushions are not available as a spare part. To obtain a complete seat cushion, order the following separate spare parts: seat cushion, covers and mounting kit. Replaced by kit 4761318, which consists of 4657375 and 4657342. \| RH	Seat cushion	1994-1995 Complete seat cushions are not available as a spare part. To obtain a complete seat cushion, order the following separate spare parts: seat cushion, covers and mounting kit. Replaced by kit 4761318, which consists of 4657375 and 4657342. RH	1
	Seat pan Not as separate spare part.	Seat pan	Not as separate spare part.	1
3	4210571 9172771 Lifting strap	Lifting strap		1
4	4630851 Foam plastic cushion 1994- \| LH	Foam plastic cushion	1994- LH	1
4	4630869 Foam plastic cushion 1994- \| RH	Foam plastic cushion	1994- RH	1
4	4232302 Foam plastic cushion LH	Foam plastic cushion	LH	1
4	4232294 Foam plastic cushion RH	Foam plastic cushion	RH	1
5	4214755 Plastic insert LH	Plastic insert	LH	1
5	4214748 Plastic insert RH	Plastic insert	RH	1
6	4429981 Plastic insert LH	Plastic insert	LH	1
6	4429973 Plastic insert RH	Plastic insert	RH	1
8	4202826 Pin	Pin		4
9	8123465 5331673 E-circlip	E-circlip		4
10	4212403 Heating pad	Heating pad		2
11	4214771 Clip	Clip		2
16	4210753 Backrest cushion Complete backrest cushions are not available as a spare part. To obtain a complete backrest cushion, order the following separate spare parts: backrest cushion, covers, mounting kit and pos 40-45. \| LH	Backrest cushion	Complete backrest cushions are not available as a spare part. To obtain a complete backrest cushion, order the following separate spare parts: backrest cushion, covers, mounting kit and pos 40-45. LH	1
16	4210746 Backrest cushion Complete backrest cushions are not available as a spare part. To obtain a complete backrest cushion, order the following separate spare parts: backrest cushion, covers, mounting kit and pos 40-45. \| RH	Backrest cushion	Complete backrest cushions are not available as a spare part. To obtain a complete backrest cushion, order the following separate spare parts: backrest cushion, covers, mounting kit and pos 40-45. RH	1
16	4460234 Backrest cushion With integrated child seat Complete backrest cushions are not available as a spare part. To obtain a complete backrest cushion, order the following separate spare parts: backrest cushion, covers, mounting kit and pos 40-45. \| LH	Backrest cushion	With integrated child seat Complete backrest cushions are not available as a spare part. To obtain a complete backrest cushion, order the following separate spare parts: backrest cushion, covers, mounting kit and pos 40-45. LH	1
16	4460226 Backrest cushion With integrated child seat Complete backrest cushions are not available as a spare part. To obtain a complete backrest cushion, order the following separate spare parts: backrest cushion, covers, mounting kit and pos 40-45. \| RH	Backrest cushion	With integrated child seat Complete backrest cushions are not available as a spare part. To obtain a complete backrest cushion, order the following separate spare parts: backrest cushion, covers, mounting kit and pos 40-45. RH	1
	Rear wall Not as separate spare part.	Rear wall	Not as separate spare part.	1
17	4232377 Arm rest	Arm rest		1
18	4232369 Foam plastic cushion LH	Foam plastic cushion	LH	1
18	4232351 Foam plastic cushion RH	Foam plastic cushion	RH	1
18	4475851 Foam plastic cushion With integrated child seat \| LH	Foam plastic cushion	With integrated child seat LH	1
18	4475869 Foam plastic cushion With integrated child seat \| RH	Foam plastic cushion	With integrated child seat RH	1
19	4630182 Foam plastic piece	Foam plastic piece		1
20	4213500 90303474 Strip	Strip		1
21	4505244 Lever With integrated child seat \| LH	Lever	With integrated child seat LH	1
21	4505251 Lever With integrated child seat \| RH	Lever	With integrated child seat RH	1
22	4495727 Lifting strap With integrated child seat	Lifting strap	With integrated child seat	1
23	4532610 Head restraint bushing With integrated child seat	Head restraint bushing	With integrated child seat	1
25	4532594 Seat frame With integrated child seat	Seat frame	With integrated child seat	1
26	4495750 Head restraint With integrated child seat	Head restraint	With integrated child seat	1
27	4532602 Foam plastic cushion With integrated child seat	Foam plastic cushion	With integrated child seat	1
28	4532586 Screw With integrated child seat	Screw	With integrated child seat	2
29	4505210 Plastic sleeve With integrated child seat	Plastic sleeve	With integrated child seat	2
30	4506994 Plastic sleeve With integrated child seat	Plastic sleeve	With integrated child seat	1
31	4532578 Rubber ring With integrated child seat	Rubber ring	With integrated child seat	2
32	4505228 Plastic sleeve With integrated child seat	Plastic sleeve	With integrated child seat	1
33	4505236 Plastic sleeve With integrated child seat	Plastic sleeve	With integrated child seat	1
36	4202842 Joint 1994- \| LH	Joint	1994- LH	1
36	4202859 Joint 1994- \| RH	Joint	1994- RH	1
37	4087185 Hexagon screw 1994-	Hexagon screw	1994-	2
38	4087847 Nut 1994-	Nut	1994-	2
39	4087847 Nut 1994-	Nut	1994-	2
40	4460937 Hatch	Hatch		1
41	4460929 Bushing	Bushing		2
42	4460952 Expanding ring	Expanding ring		2
43	4460903 Frame	Frame		1
44	4460911 Back stop	Back stop		1
45	4460945 Plug	Plug		4
47	4087219 Stud	Stud		2
48	7977952 11900452 Hexagon nut	Hexagon nut		2
49	7985732 Nut 1995-1998	Nut	1995-1998	6
50	4505483 Head restraint	Head restraint		2
51	Other interior equipment
	4507042 Mounting kit seat cushion	Mounting kit	seat cushion	2
	4507034 Mounting kit backrest cushion	Mounting kit	backrest cushion	2

Pos.

Part No.

Qty

4630877

Seat cushion

1994- | Complete seat cushions are not available as a spare part. To obtain a complete seat cushion, order the following separate spare parts: seat cushion, covers and mounting kit. | LH

4630885

Seat cushion

1994- | Complete seat cushions are not available as a spare part. To obtain a complete seat cushion, order the following separate spare parts: seat cushion, covers and mounting kit. | RH

4533162

Seat cushion

1994-1995 | Complete seat cushions are not available as a spare part. To obtain a complete seat cushion, order the following separate spare parts: seat cushion, covers and mounting kit. Replaced by kit 4761318, which consists of 4657375 and 4657342. | LH

4533154

Seat cushion

Seat pan

Not as separate spare part.

4210571

9172771

Lifting strap

4630851

Foam plastic cushion

1994- | LH

4630869

Foam plastic cushion

1994- | RH

4232302

Foam plastic cushion

4232294

Foam plastic cushion

4214755

Plastic insert

4214748

Plastic insert

4429981

Plastic insert

4429973

Plastic insert

4202826

8123465

5331673

E-circlip

4212403

Heating pad

4214771

Clip

4210753

Backrest cushion

Complete backrest cushions are not available as a spare part. To obtain a complete backrest cushion, order the following separate spare parts: backrest cushion, covers, mounting kit and pos 40-45. | LH

4210746

Backrest cushion

4460234

Backrest cushion

With integrated child seat Complete backrest cushions are not available as a spare part. To obtain a complete backrest cushion, order the following separate spare parts: backrest cushion, covers, mounting kit and pos 40-45. | LH

4460226

Backrest cushion

Rear wall

Not as separate spare part.

4232377

Arm rest

4232369

Foam plastic cushion

4232351

Foam plastic cushion

4475851

Foam plastic cushion

With integrated child seat | LH

4475869

Foam plastic cushion

With integrated child seat | RH

4630182

Foam plastic piece

4213500

90303474

Strip

4505244

Lever

With integrated child seat | LH

4505251

Lever

With integrated child seat | RH

4495727

Lifting strap

With integrated child seat

4532610

Head restraint bushing

With integrated child seat

4532594

Seat frame

With integrated child seat

4495750

Head restraint

With integrated child seat

4532602

Foam plastic cushion

With integrated child seat

4532586

Screw

With integrated child seat

4505210

Plastic sleeve

With integrated child seat

4506994

Plastic sleeve

With integrated child seat

4532578

Rubber ring

With integrated child seat

4505228

Plastic sleeve

With integrated child seat

4505236

Plastic sleeve

With integrated child seat

4202842

Joint

1994- | LH

4202859

Joint

1994- | RH

4087185

Hexagon screw

1994-

4087847

Nut

1994-

4087847

Nut

1994-

4460937

Hatch

4460929

Bushing

4460952

Expanding ring

4460903

Frame

4460911

Back stop

4460945

Plug

4087219

Stud

7977952

11900452

Hexagon nut

7985732

Nut

1995-1998

4505483

Head restraint

Other interior equipment

4507042

Mounting kit

seat cushion

4507034

Mounting kit

backrest cushion
