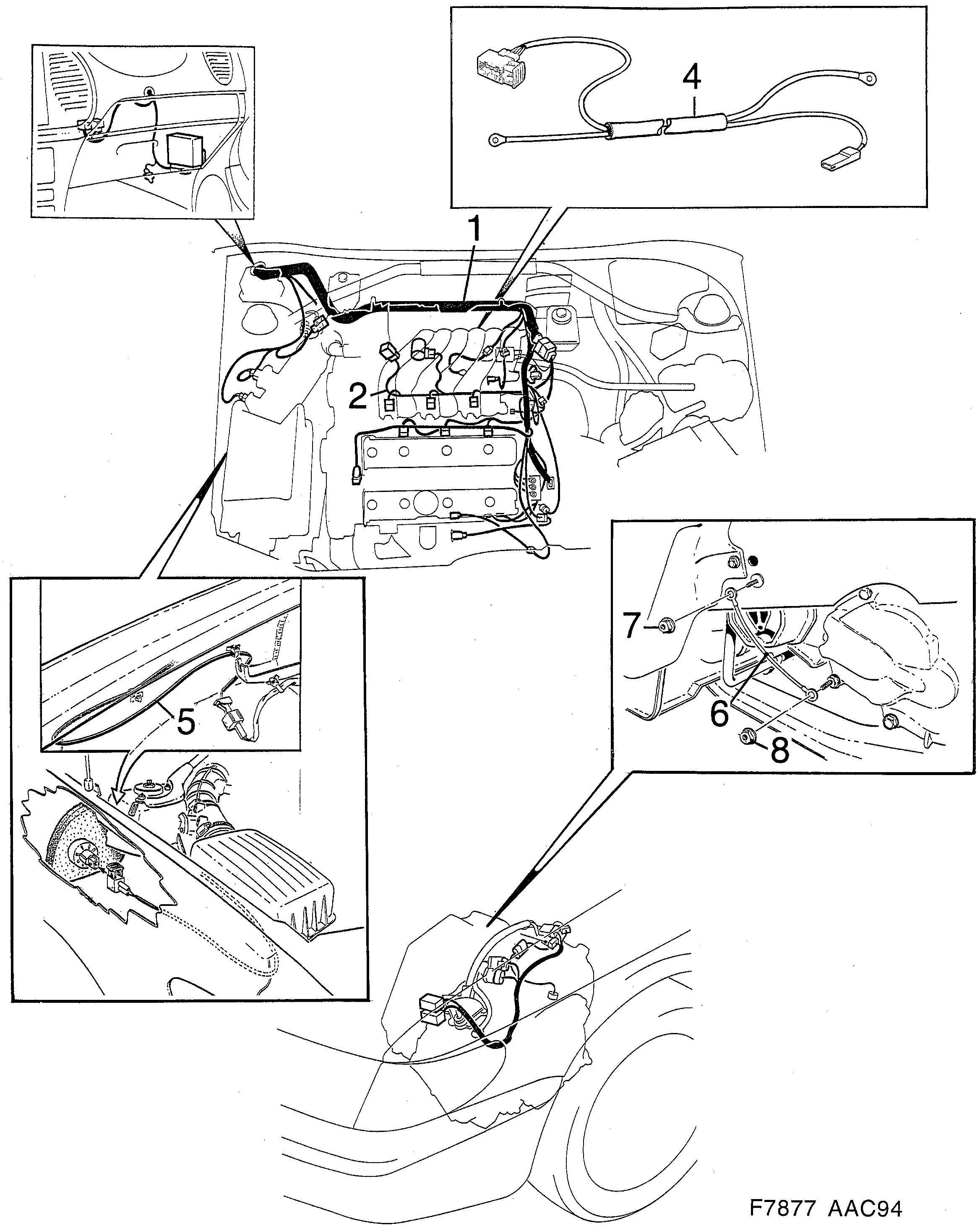

1560: Electrical, general - Wiring and fuses - Engine, gearbox
(1996 | 6-CYL) | For 900 (1996)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4691549 Cable harness engine | 1 | |
| 1 | 4691556 Cable harness engine | 1 | |
| 1 | 4584256 Cable harness LHD | engine | 1 | |
| 1 | 4584264 Cable harness LHD | engine | 1 | |
| 2 | 4503900 Cable harness injection valves | 1 | |
| 4 | 4584363 Cable harness starter motor-alternator | 1 | |
| 5 | 4669537 Cable harness LHD | shut-off valve | 1 | |
| 6 | 4665998 Ground cable | 1 | |
| 7 | 7977952 11900452 Hexagon nut | 1 | |
| 8 | 7977929 11900451 Nut | 1 |
