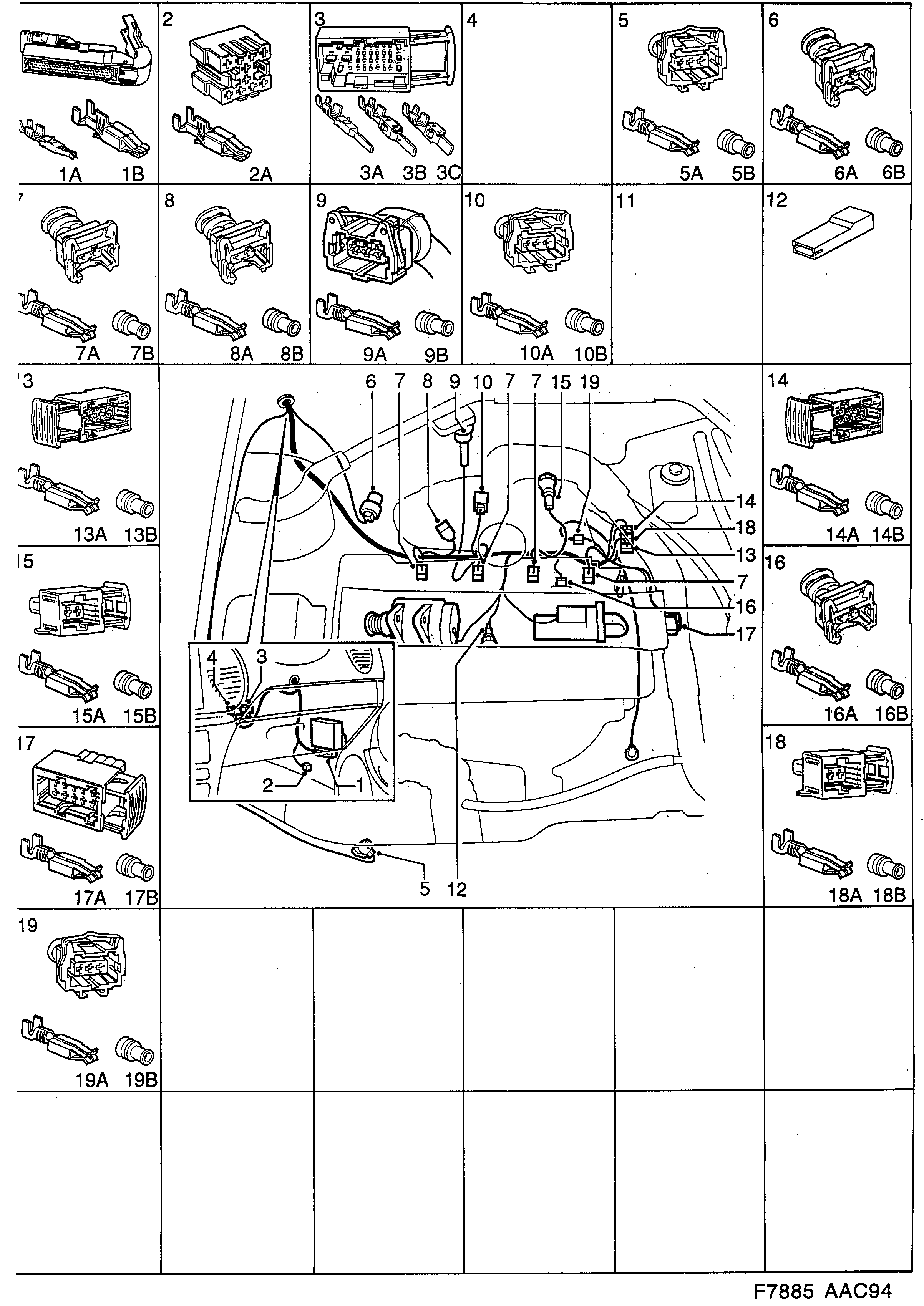

2280: Electrical, connector - Contact housing etc - Engine
(1996 | B204E, B204I, B204L, B204S, B234E, B234I, B234L, B234R, B258I) | For 900 (1996)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 12 | 4409801 Cable terminal 1-pin, female engine oil pressure sensor | 1 | |
| 13 | 4113601 12788993 Connector housing 4-pin, female lambda sond engine | 1 | |
| 13A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | 4 | |
| 13B | 4061974 12798372 Seal AREA 2,1-2,9 MM2 | 4 | |
| 14 | 4113601 12788993 Connector housing 4-pin, female lambda sond catalytic converter | 1 | |
| 14A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | 4 | |
| 14B | 4061974 12798372 Seal AREA 2,1-2,9 MM2 | 4 | |
| 15 | 4113205 12788933 Connector housing 2-pin, female temperature sensor | 1 | |
| 15A | 4350526 Cable terminal AREA 0,5-1,0 MM2 | 2 | |
| 15B | 4061974 12798372 Seal AREA 2,1-2,9 MM2 | 2 | |
| 16 | 4178414 12790247 Connector housing 2-pin, female temperature sensor coolant | 1 | |
| 16A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | 2 | |
| 16B | 4061974 12798372 Seal AREA 2,1-2,9 MM2 | 2 | |
| 17 | 4114005 12788954 Connector housing 10-pin, female ignition discharge module | 1 | |
| 17A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | 9 | |
| 17B | 4061974 12798372 Seal AREA 2,1-2,9 MM2 | 9 | |
| 18 | 4113205 12788933 Connector housing 2-pin, female temperature sensor coolant | 1 | |
| 18A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | 2 | |
| 18B | 4061974 12798372 Seal AREA 2,1-2,9 MM2 | 2 | |
| 19 | 4432324 Connector housing 3-pin, female crank shaft position sensor | 1 | |
| 19A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | 3 | |
| 19B | 4061974 12798372 Seal AREA 2,1-2,9 MM2 | 3 |
