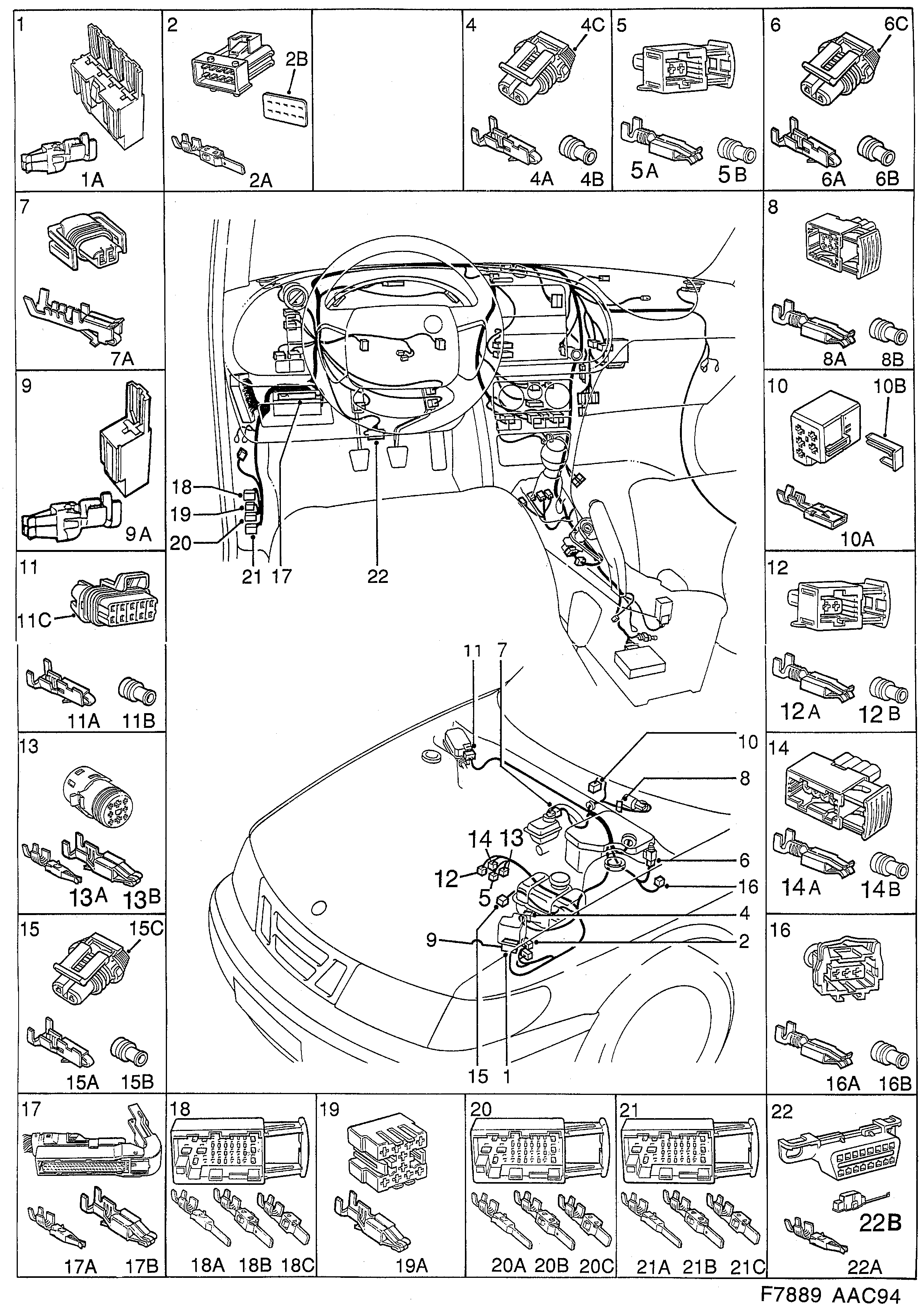

2400: Electrical, connector - Contact housing etc - Instrument panel
(1996) | For 900 (1996)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4230181 Connector housing 4-pin, female fuse box | 1 | |
| 1A | 4464343 Cable terminal AREA 4,0-6,0 MM2 | 4 | |
| 2 | 4114054 12788959 Connector housing 10-pin, male connection | 1 | |
| 2A | 4115192 12789934 Cable terminal AREA 1,0-2,5 MM2 | 10 | |
| 2B | 4114153 12788965 Seal | 1 | |
| 4 | 4434841 Connector housing 2-pin, female level sensor coolant | 1 | |
| 4A | 4418505 Cable terminal AREA 0,5-1,0 MM2 | 2 | |
| 4B | 4419313 Seal blue | 2 | |
| 4C | 4201232 12789184 Locking | 1 | |
| 5 | 4113205 12788933 Connector housing 2-pin, female temperature sensor clutch | 1 | |
| 5A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | 2 | |
| 5B | 4061966 Seal AREA 1,2-2,0MM2 | 2 | |
| 6 | 4201224 12790252 Connector housing 2-pin, female bonnet | 1 | |
| 6A | 4418505 Cable terminal AREA 0,5-1,0 MM2 | 2 | |
| 6B | 4419313 Seal blue | 2 | |
| 6C | 4201232 12789184 Locking | 1 | |
| 7 | 4201273 Connector housing 2-pin, female level sensor brake fluid | 1 | |
| 7A | 4488458 Cable terminal AREA 0,35-0,5 MM2 | 2 | |
| 8 | 4113809 12788966 Connector housing 6-pin, female windscreen wipers | 1 | |
| 8A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | 5 | |
| 8B | 4061966 Seal AREA 1,2-2,0 MM2 | 6 | |
| 9 | 4230199 Connector housing 1-pin, female fuse box | 1 | |
| 9A | 4464343 Cable terminal AREA 4,0-6,0 MM2 | 1 |
