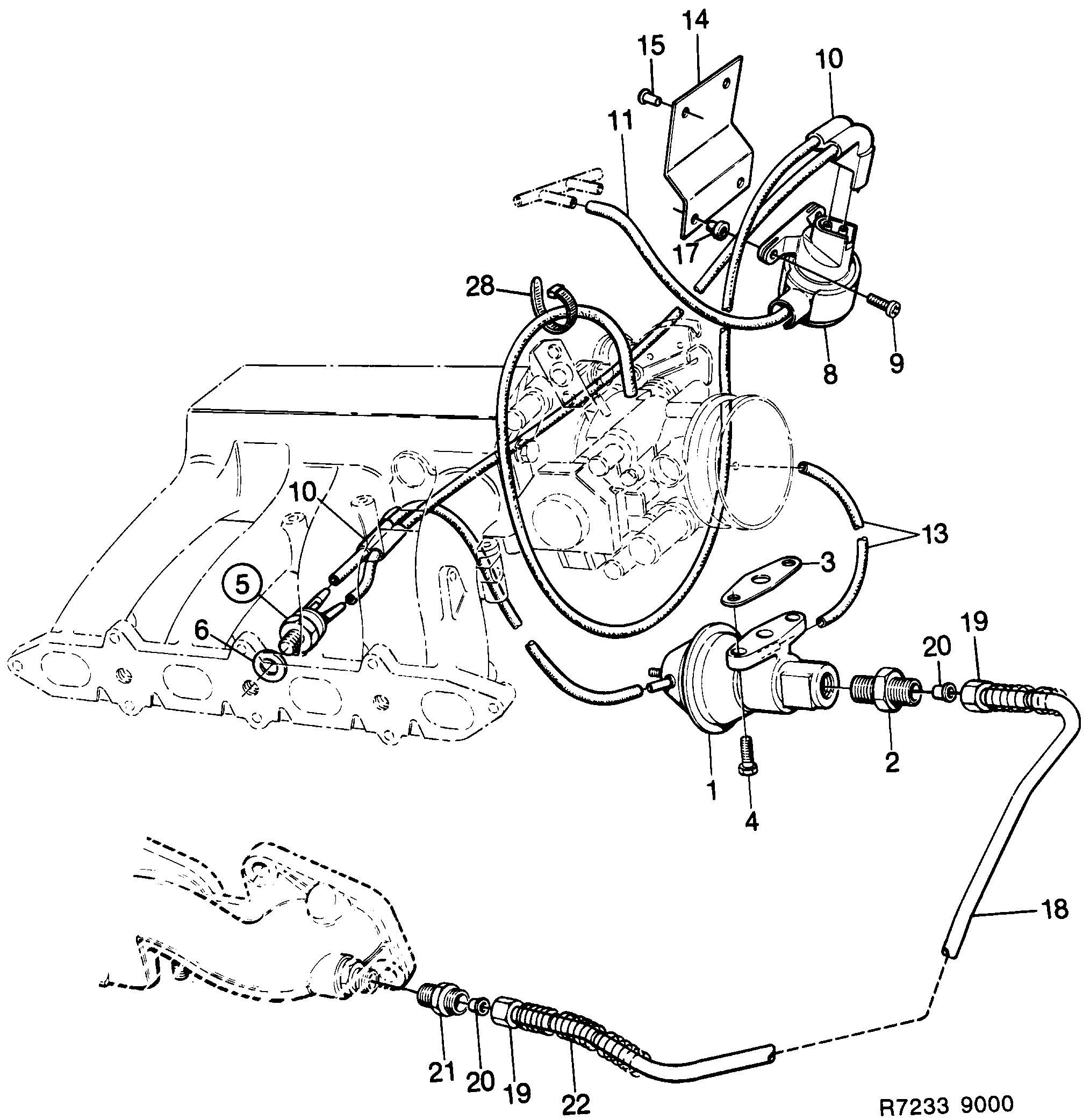

1000: Engine - Intake and exhaust system - EGR system - -1988
(1985 - 1988) | For 9000 (1985)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 7504004 Exhaust gas recirculation valve TURBO | 1 | |
| 1 | 7508393 Exhaust gas recirculation valve I | 1 | |
| 1 | 9350208 Exhaust gas recirculation valve I | 1 | |
| 2 | 7506652 Nipple 1985-1985 | TURBO | 1 | |
| 3 | 7507973 Gasket 1985-1986 | (8357485) | 1 | |
| 4 | 8019929 Screw | 2 | |
| 5 | 7504897 Valve TURBO | 1 | |
| 6 | 8124141 92150435 Gasket | 1 | |
| 8 | 7528425 Switch TURBO | MARKED BLUE | 1 | |
| 8 | 7528433 Switch I | MARKED BLACK | 1 | |
| 8 | 7590870 Switch TURBO | 1 | |
| 9 | 7922891 Screw 1985-1985 | 2 | |
| 10 | 9389313 Hose -1987 | 1 | |
| 11 | 9136243 Vacuum hose 1985-1985 | TURBO | Sold in 5M lengths | L=115 MM | 1 | |
| 13 | 9136243 Vacuum hose Sold in 5M lengths | L=200 MM | 1 | |
| 18 | 7522519 EGR-pipe TURBO | 1 | |
| 18 | 7560246 Tube 1985-1986 | I | 1 | |
| 19 | 8145559 Nut | 2 | |
| 20 | 8132235 Ferrule | 2 | |
| 21 | 8131989 Nipple | 1 | |
| 22 | 7520042 Protection | 1 | |
| 28 | 7398621 Clamp | 1 | |
9136243 Vacuum hose Sold in 5M lengths | L=5000 | X |
