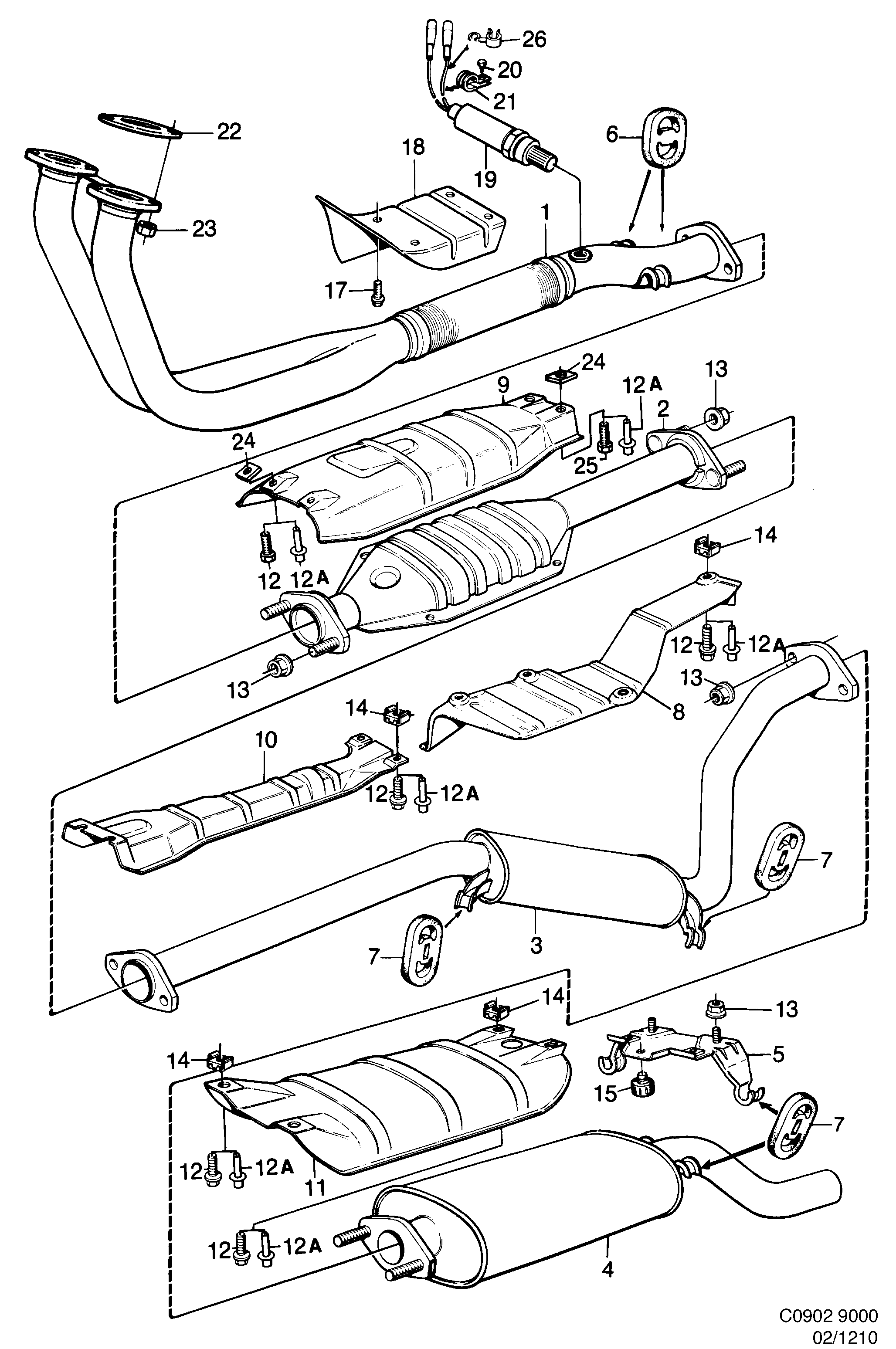

1210: Engine - Intake and exhaust system - Exhaust system - With catalytic converter
(1985 - 1989 | I) | For 9000 (1985)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9393455 4019535 Exhaust pipe | 1 | |
| 2 | 9392598 4750030 Three way catalytic converter 1985-1987 | 1 | |
| 2 | 4440020 Three way catalytic converter | 1 | |
| 3 | 5466107 Silencer 1985-1988 | (8975419) | 1 | |
| 4 | 5466131 Silencer 1985-1988 | (8822256) | 1 | |
| 6 | 9392465 Rubber mounting (9388943) | 2 | |
| 7 | 9328105 Rubber mounting | 4 | |
| 9 | 9386244 Shield 1985-1986 | 1 | |
| 12 | 7528953 Screw -1987 | 12 | |
| 13 | 7967953 11900429 Nut | 8 | |
| 14 | 7970437 Cage nut -1987 | 6 | |
| 15 | 9388588 Plug | 1 | |
| 17 | 8125130 Screw | 4 | |
| 18 | 7564321 Heat shield | 1 | |
| 22 | 8980328 Gasket (9368572) | 2 | |
| 23 | 7967870 7979503 Nut | 4 | |
| 24 | 7977374 Cage nut -1987 | 6 | |
| 25 | 8262958 Screw -1987 | 2 |
