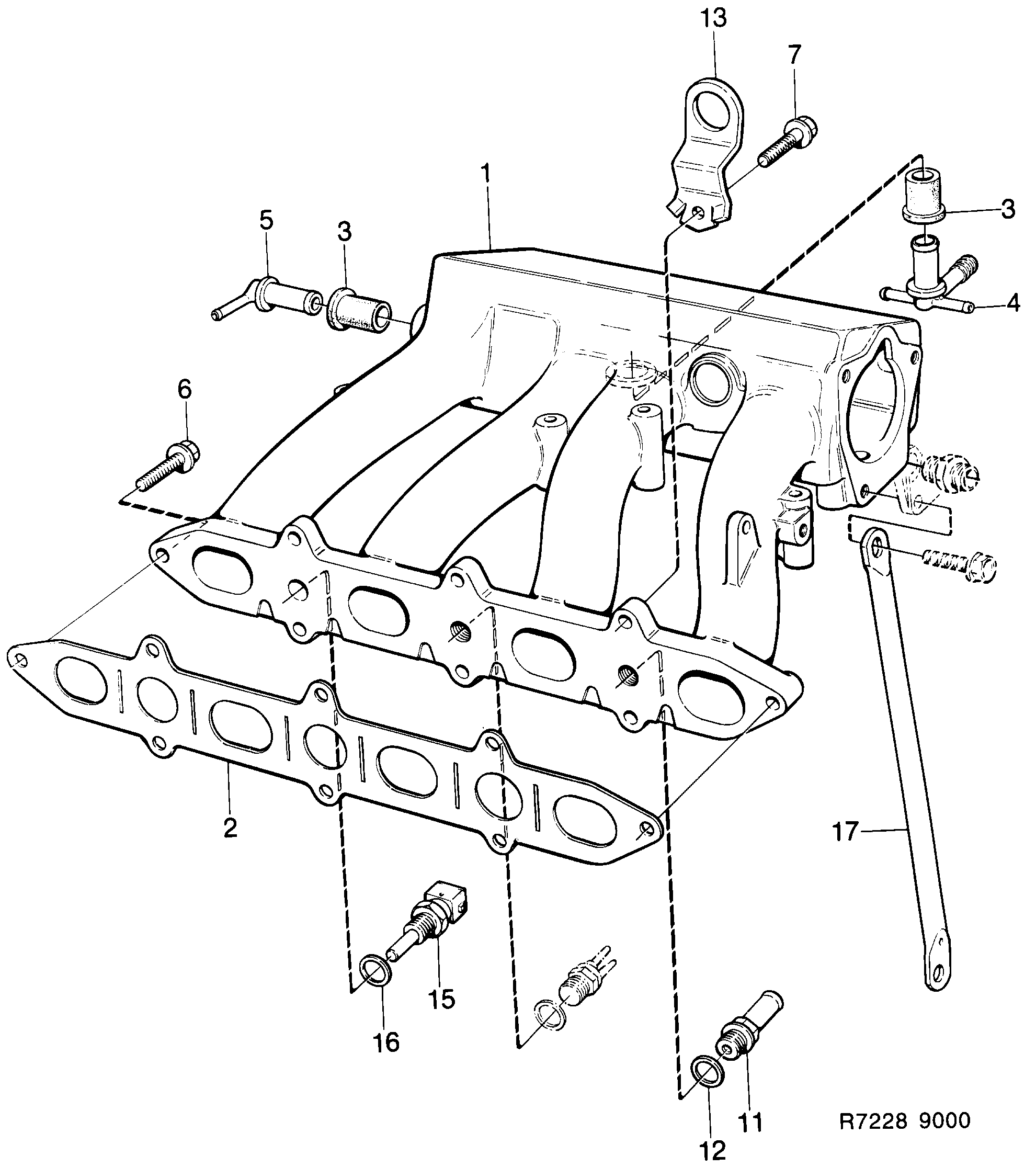

730: Engine - Intake and exhaust system - Intake manifold
(1985) | For 9000 (1985)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 7517006 Intake manifold | 1 | |
| 2 | 7515885 7584436 Gasket | 1 | |
| 3 | 7515208 Bushing | 2 | |
| 4 | 7522477 Nipple | 1 | |
| 5 | 8359937 Nipple | 1 | |
| 6 | 8125197 Screw | 7 | |
| 7 | 8125205 Screw | 1 | |
| 11 | 7588098 Nipple (7517634) | 1 | |
| 12 | 8124141 92150435 Gasket | 1 | |
| 13 | 7521230 Lifting eye | 1 | |
| 15 | 9357021 Temperature sensor | 1 | |
| 16 | 8326704 Seal | 1 | |
| 17 | 7517444 Brace | 1 |
