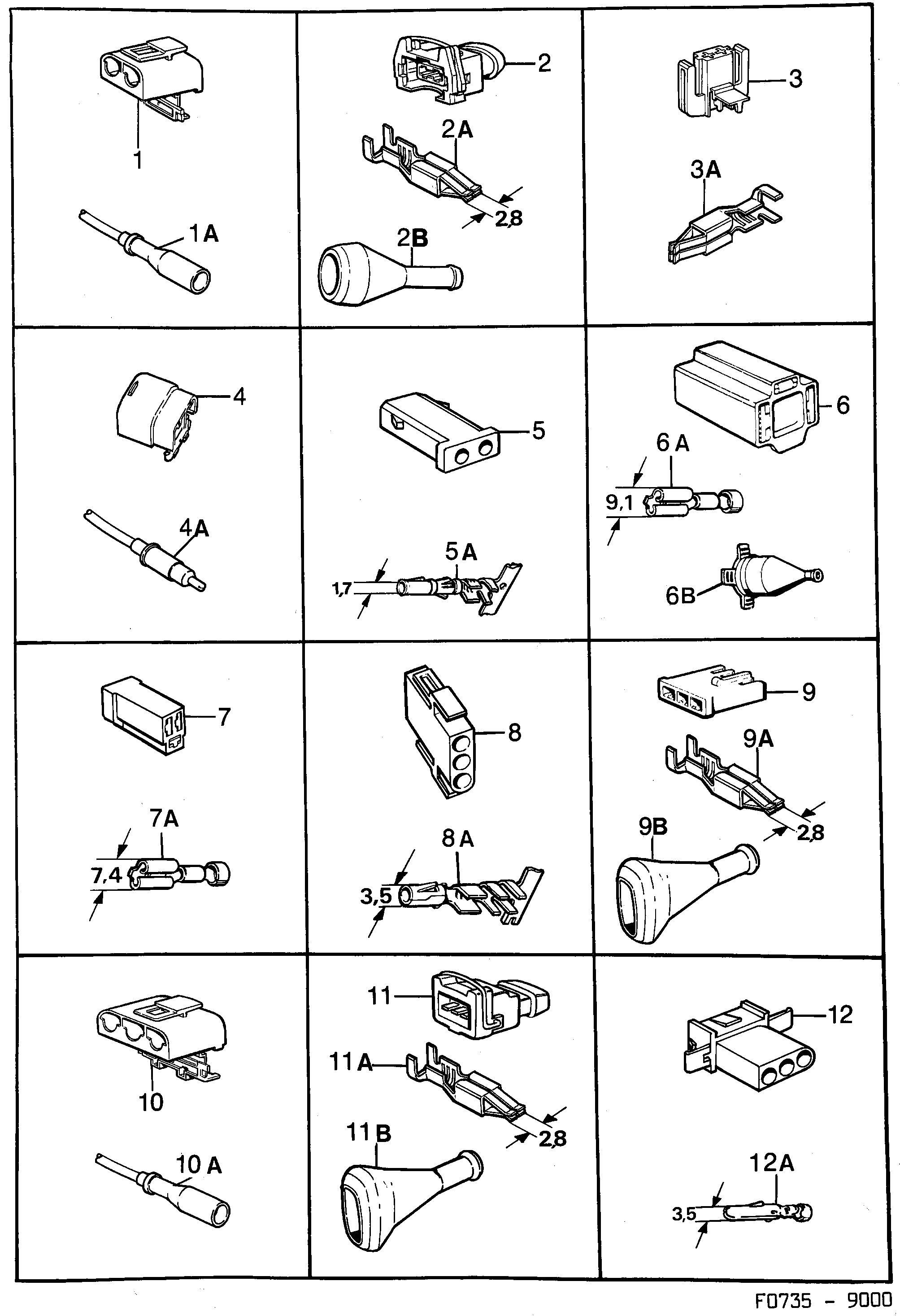

130: Electrical, connector - Wiring and fuses - Contact housing etc
(1985) | For 9000 (1985)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9503319 Contact housing 2-pin, female | EL. WINDOW REGULATOR CENTRAL LOCK,DOOR INDICATOR,STD FAN SOLENOID VALVE APC WASHER PUMP,LEVEL SWITCH,WASHER MOTOR FAN MOTOR,VACUUM SWITCH SWITCH,FAN AC,AC | X | |
| 1A | 7874498 Connection | X | |
| 2 | 8593915 Contact housing 2-pin, female | THERMO SWITCH | X | |
| 2A | 8521593 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 2B | 8571382 Protection | X | |
| 3 | 9124157 30520661 Contact housing 2-pin, female | LIGHT MIRROR,JOINT PIECE,HEAD SWITCH FAN, SUN SENSOR,INNER TEMP ACC | X | |
| 3A | 9120775 30520555 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 3A | 9120783 30520556 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 4 | 9501685 Contact housing 2-pin, male | JOINT PIECE | X | |
| 4A | 7874506 Connection | X | |
| 5 | 9506643 Contact housing 2-pin, female | MIXING TEMP ACC | X | |
| 5A | 8587552 Cable terminal AREA 0,5-1,5 MM2 | X | |
| 6 | 7155021 Contact housing 3-pin, female | HEADLIGHT | X | |
| 6A | 8582413 Cable terminal AREA,1,3-3,4 MM2 | X | |
| 6B | 8552721 Cable protection | X | |
| 7 | 7342892 Connector housing 3-pin, female | TEST CONNECTOR PIECE,TEST CONNECTOR | X | |
| 7A | 7971708 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 8 | 8564916 Contact housing 3-pin, female | JOINT PIECE | X | |
| 8A | 8544298 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 9 | 8574097 Contact housing 3-pin, male | DISTRIBUTOR | X | |
| 9A | 8521593 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 9B | 8574105 Protection | X | |
| 10 | 9503277 Contact housing 3-pin, female | CENTRAL LOCK,SPEED CONTROL,HEADLIGHT WIPERS,WIPER MOTOR | X | |
| 10A | 7874498 Connection | X | |
| 11 | 8593907 Contact housing 3-pin, female | THROTTLE SWITCH | X | |
| 11A | 8521593 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 11B | 8579955 Protection | X | |
| 12 | 8564924 Contact housing 3-pin, male | JOINT PIECE,NUMBER PLATE LIGHT | X | |
| 12A | 8544314 8582603 Cable terminal AREA 0,5-2,0 MM2 | X | |
| 12A | 8544322 Cable terminal AREA 2,0-4,0 MM2 | X |
