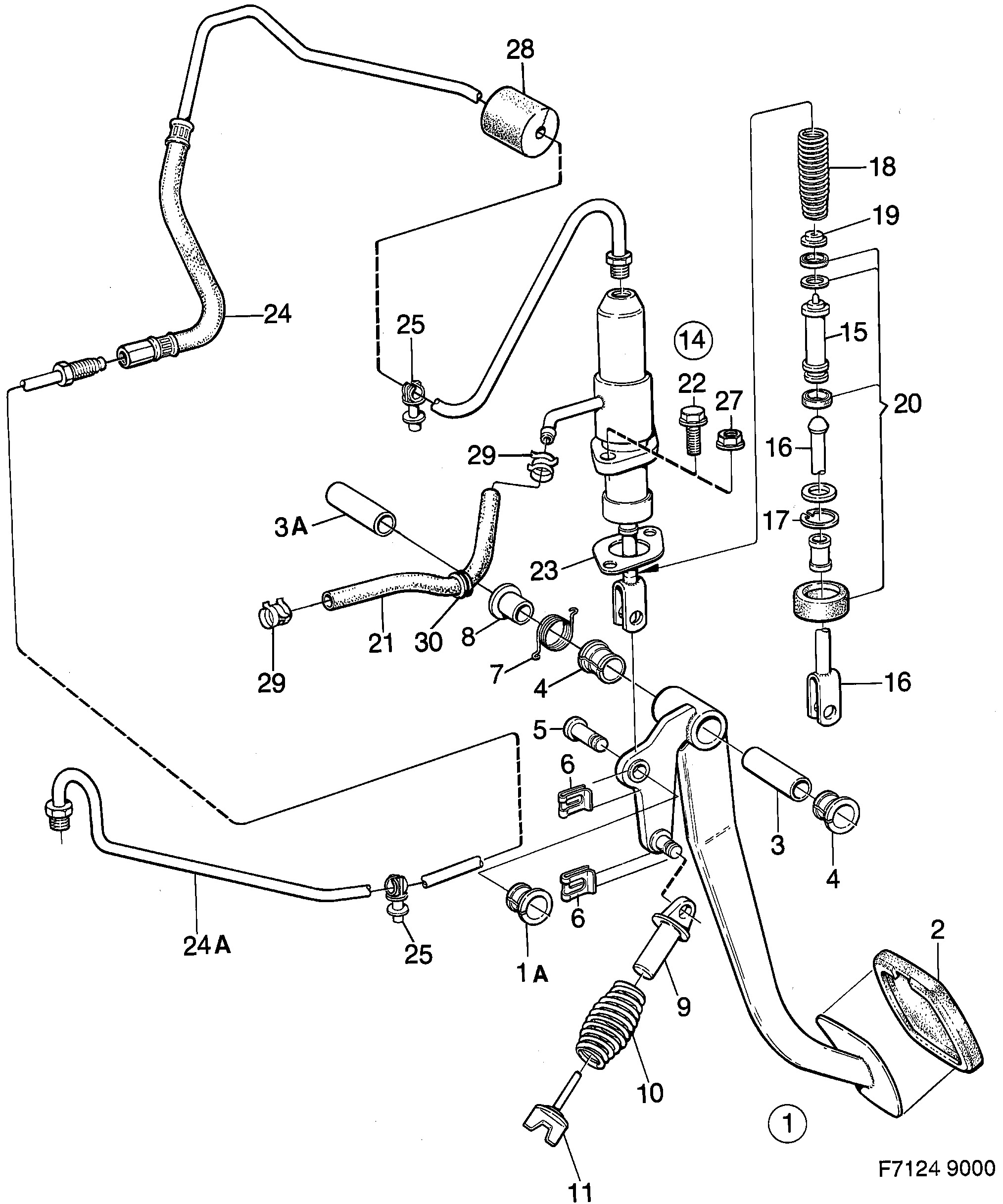

130: Transmission - Clutch operation - Pedal, master cylinder
(1985 - 1989 | M) | For 9000 (1985)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8957367 Clutch pedal TURBO | 1 | |
| 1 | 8963639 Clutch pedal I | 1 | |
| 1 | 8965535 Clutch pedal RHD | (8964165) | 1 | |
| 1A | 8959082 Plastic bushing PART OF 8963639 | 1 | |
| 2 | 8916272 Pedal pad PART OF 8963639 | 1 | |
| 2 | 8965345 Pedal pad RHD | PART OF 8965535 | 1 | |
| 3 | 8950933 Spacer tube | 1 | |
| 3A | 8950297 Spacer tube RHD | 1 | |
| 4 | 8962128 Bearing bushing | 2 | |
| 5 | 8956450 Bolt LHD | 2 | |
| 5 | 8956443 Bolt RHD | 1 | |
| 6 | 8252553 12780365 Clip | 2 | |
| 7 | 8962052 Return spring 1985-1987, LHD | 1 | |
| 7 | 8966756 Return spring RHD | 1 | |
| 8 | 8962045 8970196 Spacer sleeve 1985-1987 | 1 | |
| 15 | 4385027 Piston Part of: 4385001, 4385019 | 1 | |
| 16 | 4385035 Push rod LHD | Part of: 4385001, 4385019 | 1 | |
| 16 | 8957201 Push rod 1985-1987, LHD | Part of: 8957169 | 1 | |
| 16 | 8957318 Push rod 1985-1987, RHD | Part of: 8957292 | 1 | |
| 17 | 7313232 Lock ring (8957193) | 1 | |
| 18 | 8986622 Spring | 1 | |
| 19 | 8945156 Spring support | 1 | |
| 20 | 8993156 Repair kit | 1 | |
| 21 | 8957227 Hose LHD | 1 | |
| 21 | 8966855 Hose -1989 | ABS | 1 | |
| 21 | 8957326 Hose RHD | 1 | |
| 21 | 8966889 Hose -1989, RHD | ABS | 1 | |
| 22 | 7975113 Screw | 2 | |
| 23 | 8941478 Gasket | 1 | |
| 24 | 8963712 Hose 1985-1986, LHD | (8962920) | 1 | |
| 24 | 8964009 Hose 1985-1986, RHD | 1 | |
| 24A | 8963704 Tube 1985-1986 | 1 | |
| 25 | 7963887 Tube clamp -1989 | 2 | |
| 27 | 7971922 92150143 Nut RHD | 2 | |
| 29 | 7973605 Hose clamp ABS | 2 | |
| 30 | 7399199 Grommet ABS | 1 |
