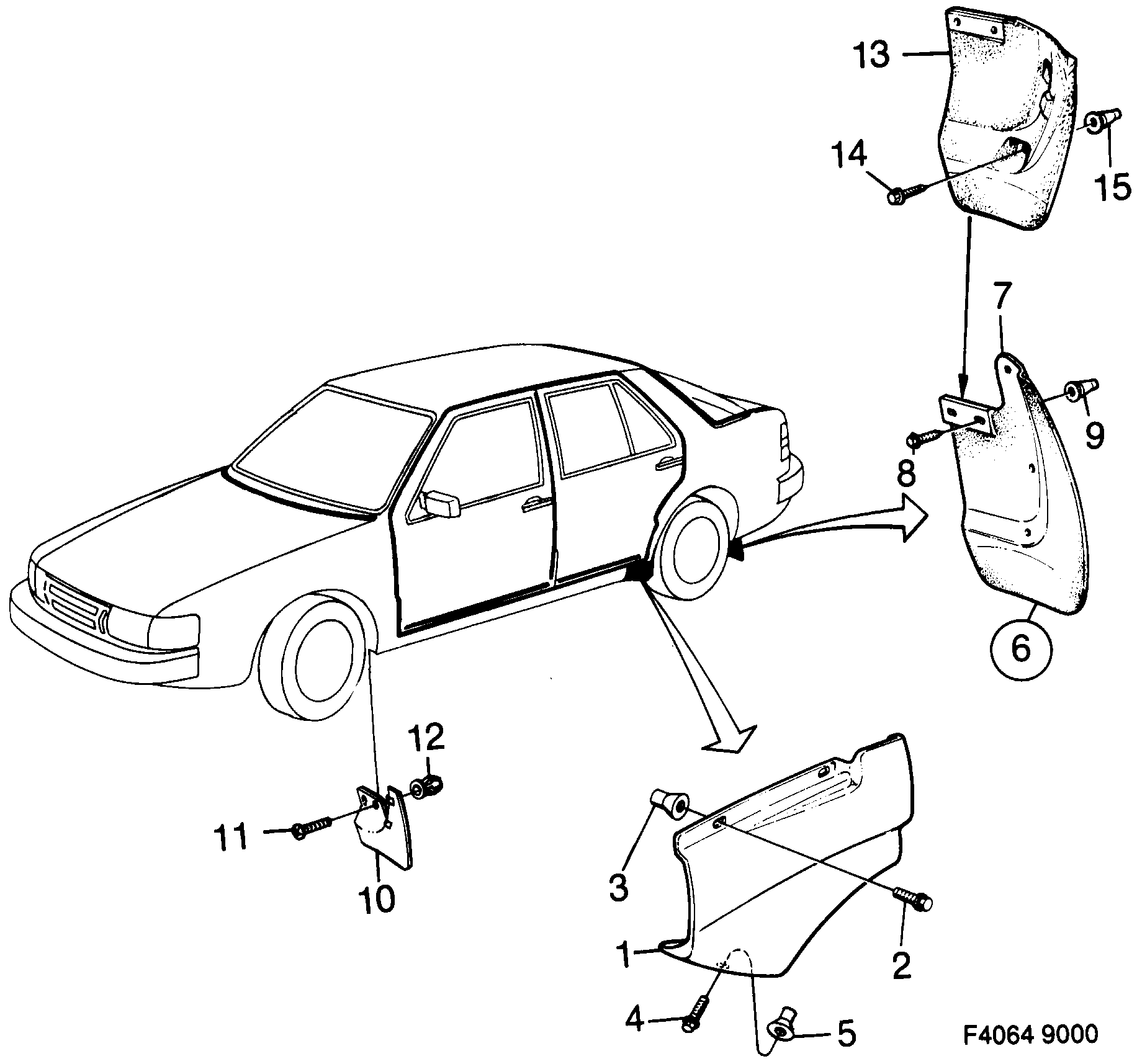

970: Car body, external - External details - Mudflap
(1985 - 1989) | For 9000 (1985)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9269432 Protection 1985-1987 | LH | 1 | |
| 1 | 9269424 Guard 1985-1987 | RH | 1 | |
| 2 | 7969314 92153005 Screw 1985-1985 | 4 | |
| 3 | 7975261 Nut 1985-1987 | 4 | |
| 4 | 7973134 Screw | 4 | |
| 5 | 7975279 Nut | 4 | |
| 6 | 7874431 Splash guard | 1 | |
| 6 | 9698440 Splash guard Rear. | LH | 1 | |
| 6 | 9698457 Splash guard Rear. | RH | 1 | |
| 7 | 9268038 Splash guard Rear. | LH | 1 | |
| 7 | 9268020 Splash guard Rear. | RH | 1 | |
| 8 | 7975774 92153149 Screw 1985-1985 | (7973142) | 10 | |
| 9 | 7975261 Nut | 10 | |
| 10 | 9698416 8284721 Splash guard Front. | LH AND RH | 1 | |
| 10 | 9698424 Splash guard Front. | LH | 1 | |
| 10 | 9698432 Splash guard Front. | RH | 1 | |
| 10 | 9271495 Splash guard -1986 | Front. | LH | 1 | |
| 10 | 9271487 4008942 Splash guard -1986 | Front. | RH | 1 | |
| 11 | 7981947 Screw | 4 | |
| 12 | 9288846 Nut | 4 |
