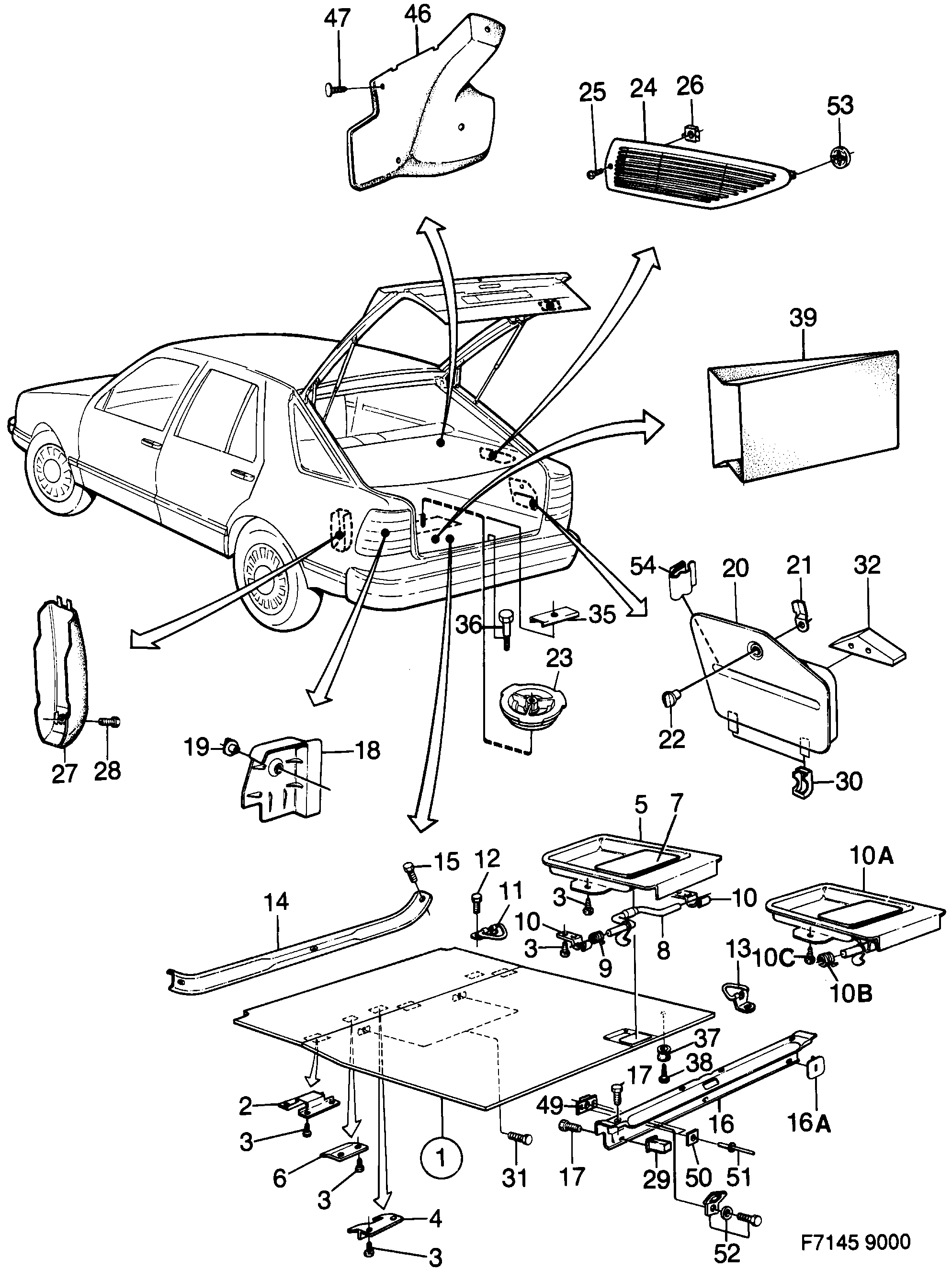

1450: Car body, internal - Other interior equipment - Equipment luggage compartment - Compartment
(1985 - 1989) | For 9000 (1985)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 9575630 Floor (9759903,9790957) | 1 | |||
| 2 | 9764853 Hinge -1986 | 3 | |||
| 3 | 9775230 Screw | 24 | |||
| 4 | 9778317 Plate -1986 | 2 | |||
| 5 | 9774266 Cover -1986 | 1 | |||
| 6 | 9778309 Clamp -1986 | 1 | |||
| 7 | 9782509 Handle -1986 | 1 | |||
| 8 | 9774258 Brace -1986 | 1 | |||
| 9 | 9774282 Spring -1986 | 1 | |||
| 10 | 9782228 Bracket -1986 | 2 | |||
| 11 | 9774217 Eye | 2 | |||
| 12 | 7922420 Screw | 4 | |||
| 13 | 9777749 Eye | 2 | |||
| 14 | 9765215 Cover 1985-1986 | 1 | |||
| 15 | 8441503 Screw | 3 | |||
| 16 | 9754847 Moulding, sill panel | 1 | |||
| 16 | 4141636 Moulding, sill panel -1988 | (9791906) | 1 | |||
| 17 | 9771320 Screw | 7 | |||
| 17 | 9771320 Screw | 9 | |||
| 18 | 1 | ||||
| 19 | 2 | ||||
| 20 | 9548108 4499778 Toolbox (9796996,9578923) | 1 | |||
| 21 | 9767799 Catch | 1 | |||
| 22 | 9767781 Knob | 1 | |||
| 23 | 9774290 12791335 Knob | 1 | |||
| 24 | 9571043 Grille (9782327) | 1 | |||
| 24 | 9784752 Grille -1988 | 1 | |||
| 25 | 7971500 Screw -1987 | 1 | |||
| 25 | 9491689 Special screw -1988 | 1 | |||
| 26 | 8601916 Clip nut -1987 | 1 | |||
| 26 | 8452898 Quick nut -1988 | 1 | |||
| 27 | 9767971 Cover | 1 | |||
| 27 | 9788605 Cover -1988 | 1 | |||
| 28 | 8426199 Screw | 1 | |||
| 29 | 7977358 Press nut | 3 | |||
| 29 | 7977358 Press nut | 1 | |||
| 30 | 9795717 Cover | 2 | |||
| 31 | 7922354 92153219 Screw 1985-1987 | 2 | |||
| 32 | 9661877 Holder | 1 | |||
| 35 | 9733338 Washer big spare wheel | 1 | |||
| 36 | 9661018 5334750 Screw big spare wheel | 1 | |||
| 37 | 9794264 Knob | 1 | |||
| 38 | 9775230 Screw | 1 | |||
| 39 | 9459728 Bag | 1 | |||
| 46 | 9576513 Protection LH | 1 | |||
| 46 | 9576505 Protection RH | 1 | |||
| 47 | 9668153 92152407 Clip -1989 | 6 | |||
