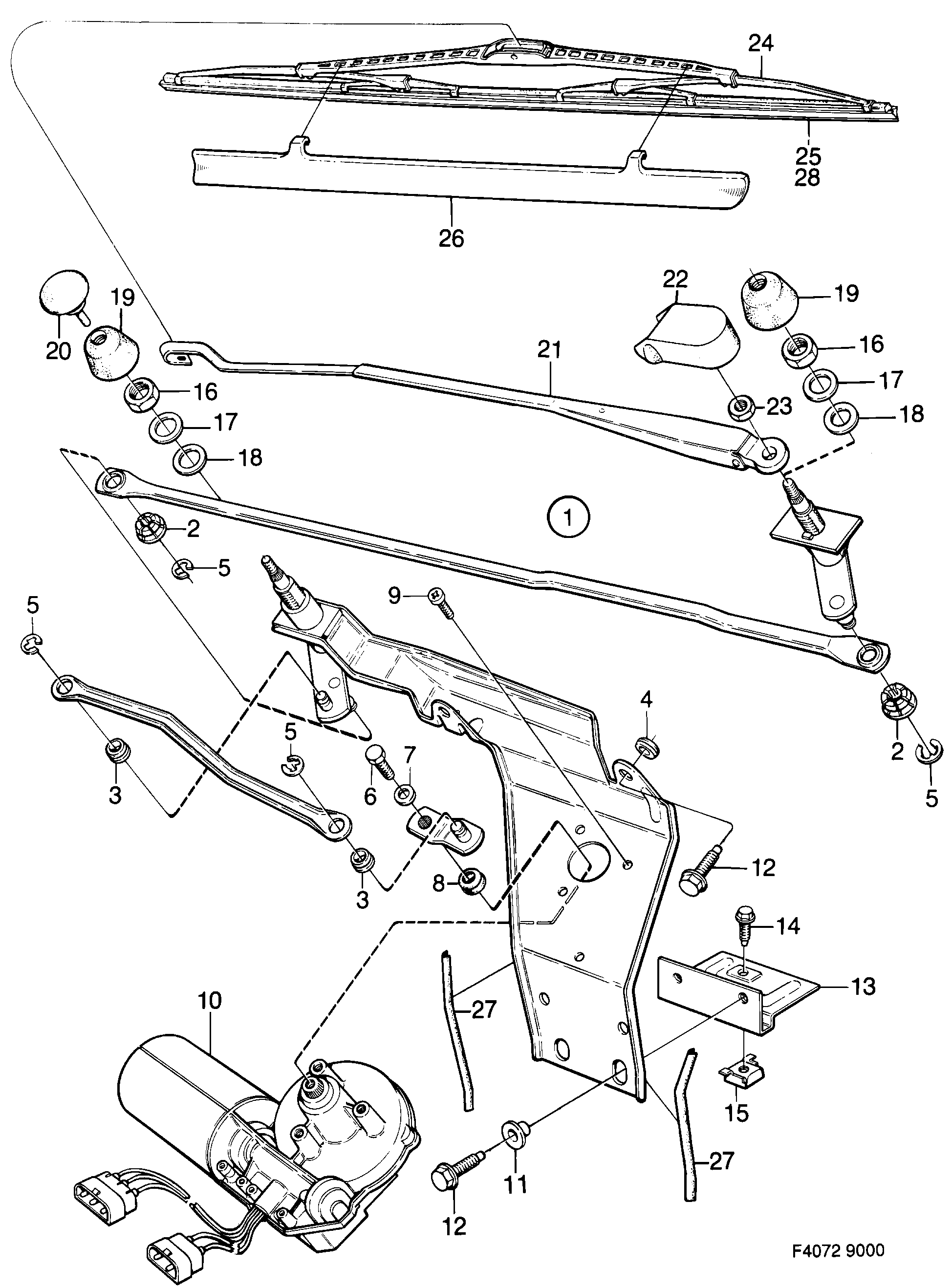

820: Electrical, general - Electric equipment, other - Windscreen wiper
(1986 - 1987) | For 9000 (1987)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 4060133 Linkage LHD | 1 | |||
| 1 | 8548489 Linkage RHD | 1 | |||
| 2 | 8559320 Bushing | 2 | |||
| 3 | 8559320 Bushing | 2 | |||
| 4 | 8544421 Bushing | 4 | |||
| 5 | 7936016 8123473 E-circlip | 4 | |||
| 6 | 8019895 Screw | 1 | |||
| 7 | 8029951 Washer | 1 | |||
| 8 | 9508318 Seal | 1 | |||
| 9 | 8059552 92151821 Screw RHD | 3 | |||
| 10 | 9519448 Motor | 1 | |||
| 11 | 8544413 Sleeve | 4 | |||
| 12 | 7972466 Screw | 4 | |||
| 13 | 9523432 Bracket | 1 | |||
| 14 | 7972466 Screw | 1 | |||
| 15 | 7975006 Nut | 1 | |||
| 16 | 7965585 Nut | 2 | |||
| 17 | 7978083 Washer | 2 | |||
| 18 | 9509621 Seal 1986-1987 | 2 | |||
| 19 | 4014619 Seal | 2 | |||
| 20 | 9504424 Plug | 1 | |||
| 21 | 9529991 Wiper arm LHD | LH,(9518754) | 1 | |||
| 21 | 9529702 Wiper arm LHD | RH,(9518762) | 1 | |||
| 21 | 9529561 Wiper arm RHD | LH,(9518770) | 1 | |||
| 21 | 9529504 Wiper arm RHD | RH,(9518788) | 1 | |||
| 22 | 9526237 Cover | 1 | |||
| 23 | 8074106 Nut | 2 | |||
| 24 | 9522095 Wiper blade LHD | (9529488 SEE ) L=510 MM | 2 | |||
| 24 | 9522095 Wiper blade RHD | (9523754 SEE ) L=510 MM | 2 | |||
| 24 | 4448049 Wiper blade LHD | Synthetic rubber. | 2 | |||
| 24 | 4448056 Wiper blade RHD | Synthetic rubber. | 2 | |||
| 25 | Profile Not as separate spare part. | 1 | |||
| 26 | 9512567 Spoiler For 95 22 095. | 1 | |||
| 27 | 9528910 Protection 1987- | 2 | |||
