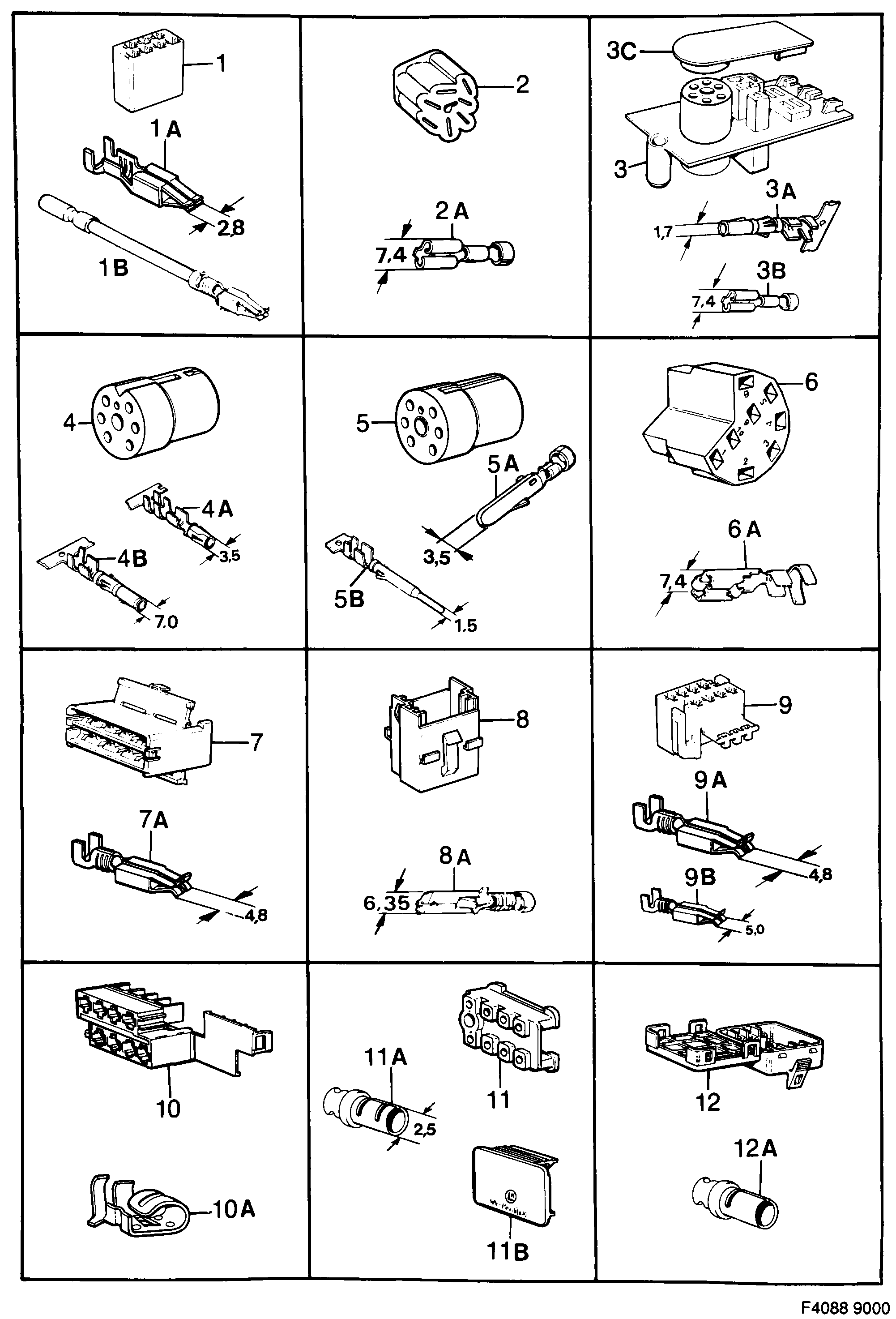

550: Electrical, connector - Wiring and fuses - Contact housing etc
(1987) | For 9000 (1987)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9123381 Contact housing 7-pin, female | SWITCH ELECTRIC MIRROR | X | |
| 1A | 8521593 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 1B | 8522617 Cable terminal AREA,1,0-2,6 MM2 | X | |
| 2 | 9503251 Contact housing 7-pin, female | HEATING FAN | X | |
| 2A | 7972029 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 3 | 9512591 Contact 7-pin, female | TEST CONNECTOR | X | |
| 3A | 8587552 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 3A | 8587560 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 3B | 8582454 Cable terminal AREA,0,5-1,05MM2 | X | |
| 3C | 9520974 Cover | X | |
| 4 | 8521700 Contact 7-pin, female | JOINT PIECE | X | |
| 4A | 8544298 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 4B | 8587552 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 5 | 8521718 Contact housing 7-pin, male | JOINT PIECE | X | |
| 5A | 8544314 8582603 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 5B | 8593964 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 6 | 8544363 Contact housing 8-pin, female | SWITCH REAR FOGLIGHT | X | |
| 6A | 8541203 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 6A | 8541211 Cable terminal AREA,2,5-4,0 MM2 | X | |
| 7 | 8533655 Contact housing ELECTRONIC UNIT SPEED | ||
8-pin, female CONTROL | |||
| 7A | 9120775 30520555 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 8 | 9124181 Contact housing 8-pin, male | JOINT PIECE,EL-HEATED SEAT,EDU II | X | |
| 8A | 8593089 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 8A | 7155062 Cable terminal AREA,0,8-2,5 MM2 | X | |
| 8A | 8516957 Cable terminal AREA,4,0-6,0 MM2 | X | |
| 9 | 9124090 Contact housing 8-pin, female | JOINT PIECE,SWITCH REAR DEMIST,SWITCH SUN ROOF, REGULATOR,SWITCH SUN CENTRAL LOCK,TOW HOOK,ACC,TRUNK LID SWITCH CENTRAL LOCK ON/OFF,SWITCH FAN,DCC | X | |
| 9A | 9120775 30520555 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 9A | 9120783 30520556 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 9A | 9120791 30520557 Cable terminal AREA,2,5-4,0 MM2 | X | |
| 9B | 9521972 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 9B | 9521980 30520556 Cable terminal AREA,1,5-2,5 MM2 | X | |
| 10 | 9503525 Contact housing 8-pin, male | SWITCH WINDOW REGULATOR | X | |
| 10A | 8582090 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 11 | 9552159 Contact housing 8-pin, female | ELECTRONIC UNIT BELT TENSIONER | X | |
| 11A | 9552175 Cable terminal | X | |
| 11B | 9552167 Cover | X | |
| 12 | 9512930 30526066 Contact housing 9-pin, female | LOCK STEERING COLUMN | X | |
| 12A | 9509746 Cable terminal AREA,0,5-1,5 MM2 | X |
