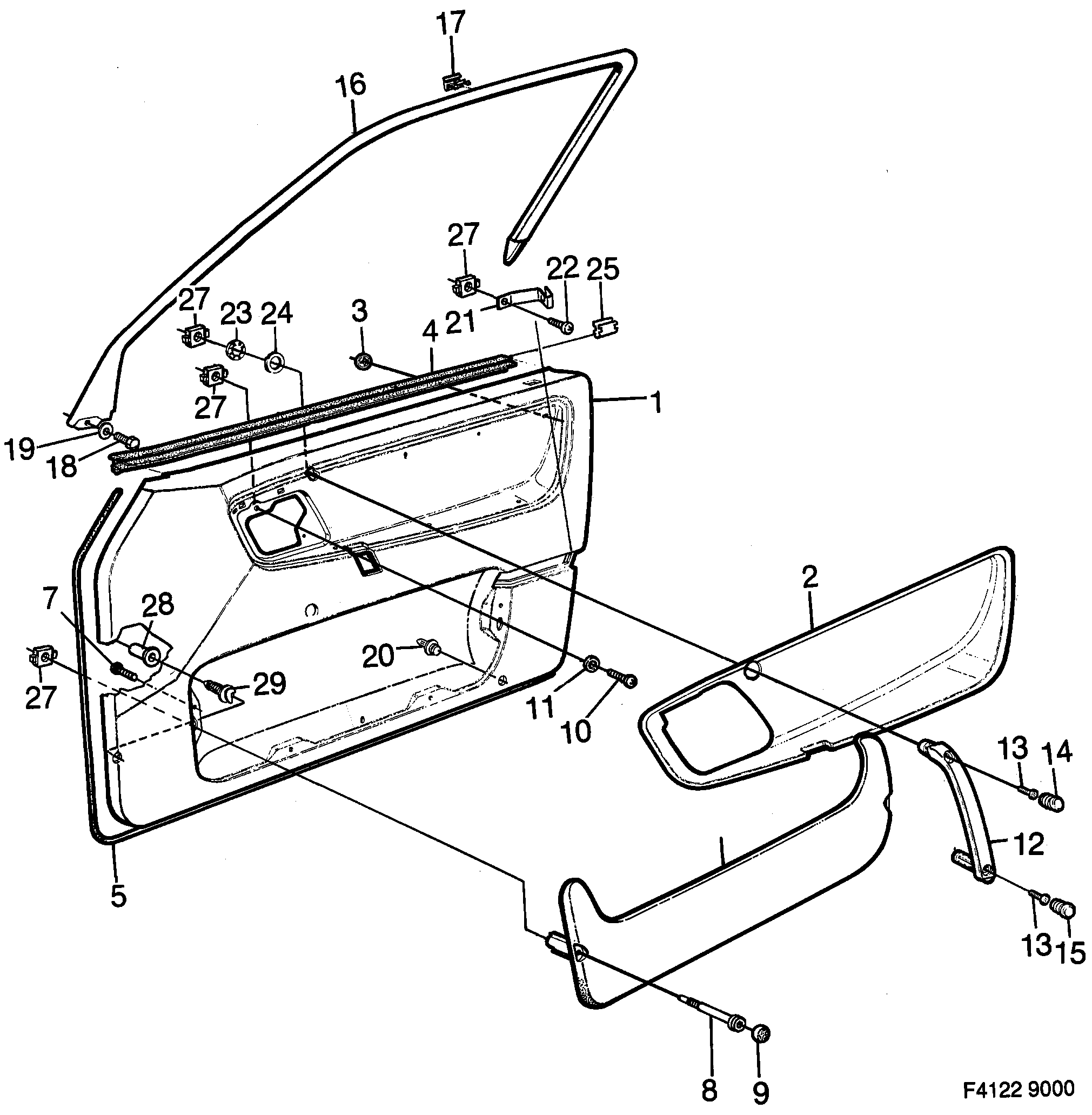

670: Car body, internal - Upholstery - Door trim - Front door
(1987) | For 9000 (1987)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9657446 Door trim Yellow. | LH | 1 | |
| 1 | 9657438 Door trim Yellow. | RH | 1 | |
| 1 | 9891508 Door trim Yellow. For cars with manual window lifts | LH | 1 | |
| 1 | 9891490 Door trim Yellow. For cars with manual window lifts | RH | 1 | |
| 2 | 9657545 Arm rest Yellow. | LH | 1 | |
| 2 | 9657537 Arm rest Yellow. | RH | 1 | |
| 3 | 9776196 9695081 Washer | 7 | |
| 4 | 9660986 Sealing strip LH | 1 | |
| 4 | 9660838 Sealing strip RH | 1 | |
| 5 | 9780065 Strip Yellow. | 2 | |
| 6 | 9658097 Pocket Yellow. | LH | 1 | |
| 6 | 9658105 Pocket Yellow. | RH | 1 | |
| 1 | 9663592 Door trim Brown | LH | 1 | |
| 1 | 9663584 Door trim Brown | RH | 1 | |
| 1 | 9663634 Door trim Brown For cars with manual window lifts | LH | 1 | |
| 1 | 9663626 Door trim Brown For cars with manual window lifts | RH | 1 | |
| 2 | 9663675 Arm rest Brown | LH | 1 | |
| 2 | 9663667 Arm rest Brown | RH | 1 | |
| 3 | 9776196 9695081 Washer | 7 | |
| 4 | 9660986 Sealing strip LH | 1 | |
| 4 | 9660838 Sealing strip RH | 1 | |
| 5 | 9895681 Strip Brown | 2 | |
| 6 | 9658055 Pocket Brown | LH | 1 | |
| 6 | 9658063 Pocket Brown | RH | 1 | |
| 1 | 9657420 Door trim Red | LH | 1 | |
| 1 | 9657412 Door trim Red | RH | 1 | |
| 1 | 9891482 Door trim Red For cars with manual window lifts | LH | 1 | |
| 1 | 9891474 Door trim Red For cars with manual window lifts | RH | 1 | |
| 2 | 9657529 Arm rest Red | LH | 1 | |
| 2 | 9657511 Arm rest Red | RH | 1 | |
| 3 | 9776196 9695081 Washer | 7 | |
| 4 | 9660986 Sealing strip LH | 1 | |
| 4 | 9660838 Sealing strip RH | 1 | |
| 5 | 9780057 Strip Red | 2 | |
| 6 | 9658071 Pocket Red | LH | 1 | |
| 6 | 9658089 Pocket Red | RH | 1 | |
| 1 | 9663618 Door trim Blue | LH | 1 | |
| 1 | 9663600 Door trim Blue | RH | 1 | |
| 1 | 9663659 Door trim Blue For cars with manual window lifts | LH | 1 | |
| 1 | 9663642 Door trim Blue For cars with manual window lifts | RH | 1 | |
| 2 | 9663691 Arm rest Blue | LH | 1 | |
| 2 | 9663683 Arm rest Blue | RH | 1 | |
| 3 | 9776196 9695081 Washer | 7 | |
| 4 | 9660986 Sealing strip LH | 1 | |
| 4 | 9660838 Sealing strip RH | 1 | |
| 5 | 9780073 Strip Blue | 2 | |
| 6 | 9658113 Pocket Blue | LH | 1 | |
| 6 | 9658121 Pocket Blue | RH | 1 | |
| 1 | 9657487 Door trim Grey. | LH | 1 | |
| 1 | 9657479 Door trim Grey. | RH | 1 | |
| 1 | 9891540 Door trim Grey. For cars with manual window lifts | LH | 1 | |
| 1 | 9891532 Door trim Grey. For cars with manual window lifts | RH | 1 | |
| 2 | 9657586 Arm rest Grey. | LH | 1 | |
| 2 | 9657578 Arm rest Grey. | RH | 1 | |
| 3 | 9776196 9695081 Washer | 7 | |
| 4 | 9660986 Sealing strip LH | 1 | |
| 4 | 9660838 Sealing strip RH | 1 | |
| 5 | 9895699 Strip Grey. | 2 | |
| 6 | 9658139 Pocket Grey. | LH | 1 | |
| 6 | 9658147 Pocket Grey. | RH | 1 | |
| 7 | 7971393 Screw | 8 | |
| 8 | 9780156 Screw | 4 | |
| 9 | 9777178 Cover Yellow. | 4 | |
| 9 | 9799867 Cover Brown | 4 | |
| 9 | 9777160 Cover Red | 4 | |
| 9 | 9777186 Cover Blue | 4 | |
| 9 | 9799875 Cover Grey. | 4 | |
| 10 | 7399264 Screw | 2 | |
| 11 | 8029944 Washer | 2 | |
| 12 | 9776436 Handle Yellow. | LH | 1 | |
| 12 | 9776428 Handle Yellow. | RH | 1 | |
| 12 | 9890096 Handle Brown | LH | 1 | |
| 12 | 9890088 Handle Brown | RH | 1 | |
| 12 | 9776410 Handle Red | LH | 1 | |
| 12 | 9776402 Handle Red | RH | 1 | |
| 12 | 9776451 Handle Blue | LH | 1 | |
| 12 | 9776444 Handle Blue | RH | 1 | |
| 12 | 9890112 Handle Grey. | LH | 1 | |
| 12 | 9890104 Handle Grey. | RH | 1 | |
| 13 | 7399264 Screw (8059396) | 4 | |
| 14 | 9776485 Cover washer Yellow. | 2 | |
| 14 | 9890120 Cover washer Brown | 2 | |
| 14 | 9776477 Cover washer Red | 2 | |
| 14 | 9776493 Cover washer Blue | 2 | |
| 14 | 9890146 Cover washer Grey. | 2 | |
| 15 | 9776527 Cover washer Yellow. | 2 | |
| 15 | 9890138 Cover washer Brown | 2 | |
| 15 | 9776519 Cover washer Red | 2 | |
| 15 | 9776535 Cover washer Blue | 2 | |
| 15 | 9890153 Cover washer Grey. | 2 | |
| 16 | 9660044 4268223 Upholstery -1987 | LH | 1 | |
| 16 | 9672742 Upholstery 1987-1987 | LH | 1 | |
| 16 | 9660044 4268223 Upholstery 1987- | LH | 1 | |
| 16 | 9660036 Upholstery -1987 | RH | 1 | |
| 16 | 9672734 Upholstery 1987-1987 | RH | 1 | |
| 16 | 9660036 Upholstery 1987- | RH | 1 | |
| 17 | 9660143 Clamp | 24 | |
| 18 | 7977689 Screw | 2 | |
| 19 | 9660077 Washer | 2 | |
| 20 | 9796939 Clamp | 2 | |
| 21 | 9796616 Clamp | 2 | |
| 22 | 7399264 Screw | 2 | |
| 23 | 9797200 Washer | 2 | |
| 24 | 9891391 5126834 Washer (9671389) | 2 | |
| 25 | 8412215 Clip | 10 | |
| 27 | 7974231 Cage nut | X | |
| 28 | 9545906 Sleeve | 2 | |
| 29 | 9545898 Upholstery clip | 2 |
