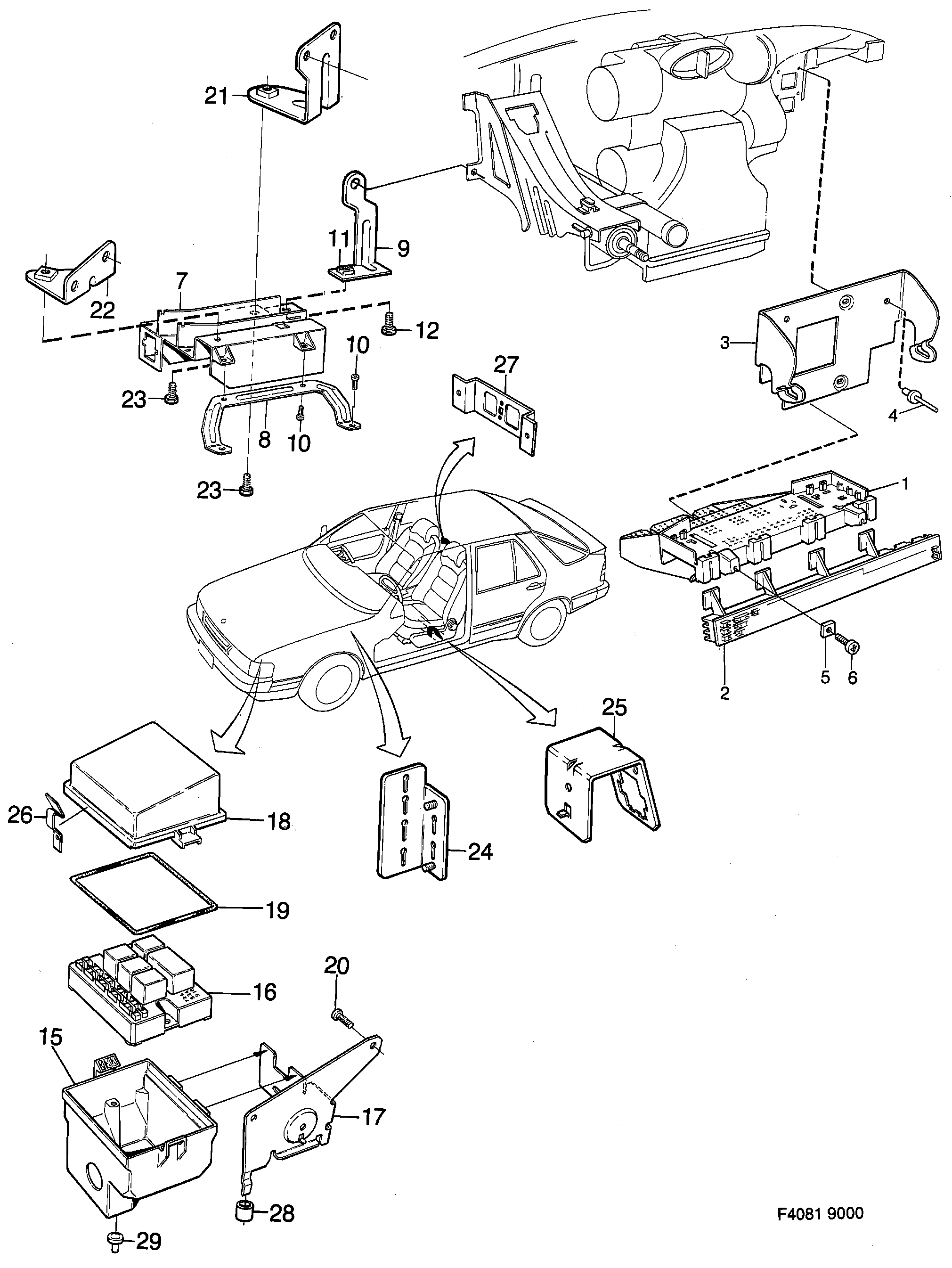

2050: Electrical, general - Wiring and fuses - Holders and brackets
(1988 - 1989) | For 9000 (1988)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9122730 Retainer Part of main wiring harness. | 1 | |
| 2 | 9122748 Retainer LHD | Part of main wiring harness. | 1 | |
| 2 | 9122755 Retainer RHD | Part of main wiring harness. | 1 | |
| 3 | 9505959 Bracket LHD | 1 | |
| 3 | 9508441 Bracket RHD | 1 | |
| 4 | 7961642 Rivet | 4 | |
| 5 | 7968555 Clip nut | 2 | |
| 6 | 7922297 Screw | 2 | |
| 7 | 9525007 Bracket 1988-1988, LHD | 1 | |
| 7 | 9526799 Bracket RHD | 1 | |
| 8 | 9526328 Bracket | 1 | |
| 9 | 9526336 Bracket LHD | 1 | |
| 9 | 9527631 Bracket RHD | 1 | |
| 10 | 7922354 92153219 Screw | 4 | |
| 11 | 7967995 Clip nut | 2 | |
| 12 | 8059578 Screw | 1 | |
| 15 | 9524802 Box -1988 | 1 | |
| 15 | 9122540 Box 1988-1989 | 1 | |
| 16 | 9123407 Bracket | 1 | |
| 17 | 9524935 Bracket 1988-1988 | 1 | |
| 18 | 9527797 Cover 1988-1988 | 1 | |
| 19 | 9527789 Seal | 1 | |
| 20 | 7922362 Screw | 2 | |
| 21 | 9525460 Bracket | 1 | |
| 22 | 9525486 Bracket | 1 | |
| 23 | 7922420 Screw | 4 | |
| 24 | 9525908 Bracket DI | 1 | |
| 25 | 9508029 Bracket 1988-1988 | 2 | |
| 26 | 9123308 Lock brace -1989 | X | |
| 29 | 7116452 Draining plug | 1 |
