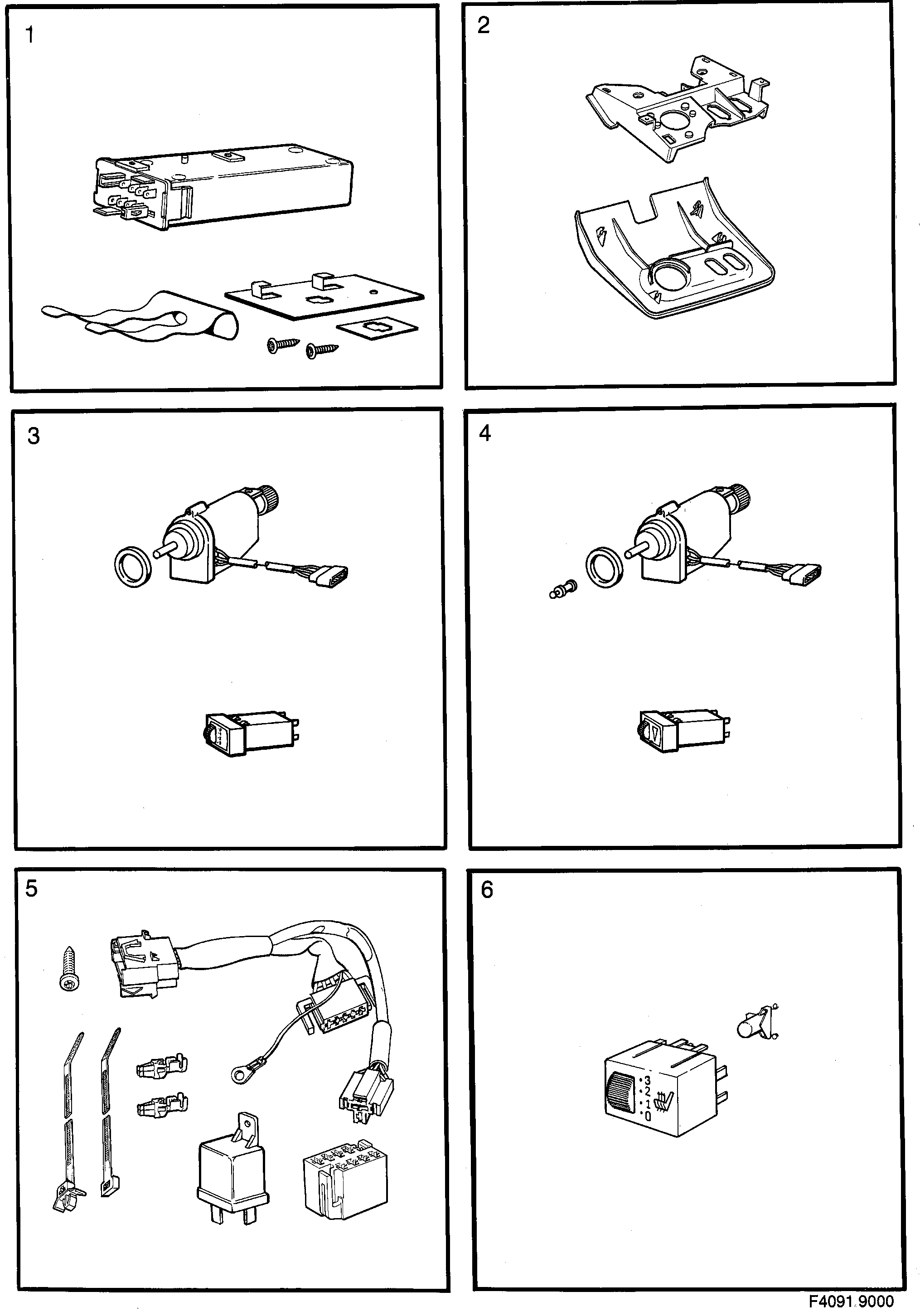

2290: Electrical, general - Kits - Electrical system
(1985 - 1989) | For 9000 (1988)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8547622 Electronic unit -1988 | X | |
9529975 Electronic unit | 1 | ||
7922347 Screw | 2 | ||
8565855 Clip | 1 | ||
9120114 Bracket | 1 | ||
9564345 Spacer washer | 1 | ||
9575903 Base plate | 1 | ||
9660176 Cover | 1 | ||
| 3 | 8547838 Lamp adjustment kit 1988- | X | |
9527904 Switch | 1 | ||
9529785 Electric motor | 2 | ||
9503327 Contact housing 3-pin, female | 1 | ||
9529793 Sealing ring | 1 | ||
| 4 | 8547846 Lamp adjustment kit | X | |
9527904 Switch | 1 | ||
9566662 Electric motor | 2 | ||
9503327 Contact housing 3-pin, female | 1 | ||
9529793 Sealing ring | 1 | ||
9569963 Adapter | 1 | ||
| 5 | 8548075 Starter inhibitor kit 1988- | X | |
7970601 92153219 Screw | 1 | ||
7971864 Tensioning band | 1 | ||
8533697 Contact housing | 1 | ||
8548059 Cable harness | 1 | ||
9563099 Relay | 1 | ||
| 6 | 4084554 Switch button 1987-1989 | Rheostat. kit | X | |
8549263 Cover Not as separate spare part. | 1 | ||
8549271 Button Not as separate spare part. | 1 | ||
8549289 Bulb Not as separate spare part. | 1 |
