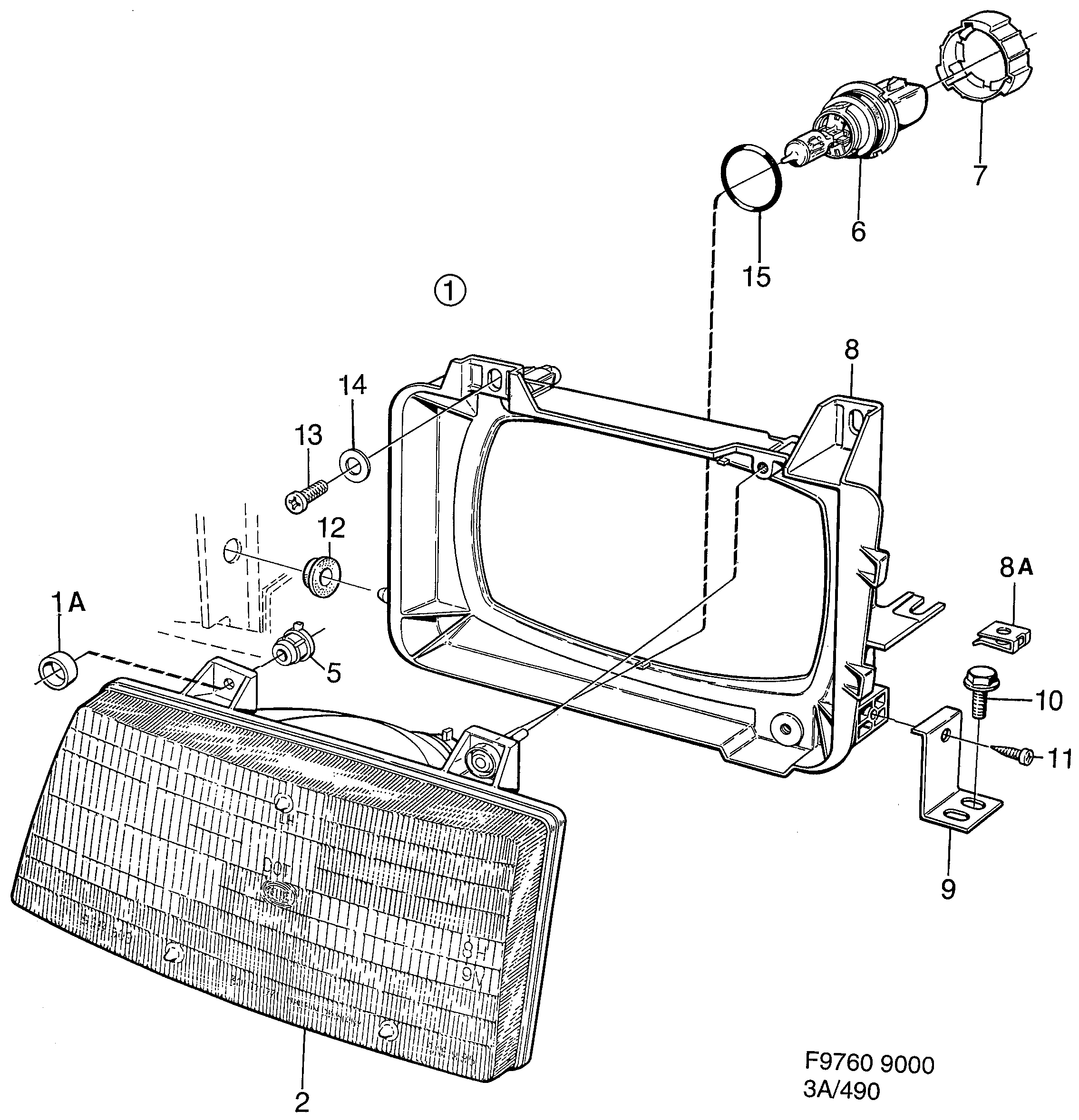

490: Electrical, general - Lighting - Headlamp, sealed beam
(1985 - 1989 | 5D) | For 9000 (1988)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9122672 Headlamp LH,(9509654) | 1 | |
| 1 | 9122680 Headlamp RH,(9509662) | 1 | |
| 1A | 9513037 Clamping sleeve | 3 | |
| 2 | 9122698 Headlamp insert LH,(9512351) | 1 | |
| 2 | 9122706 Headlamp insert RH,(9512369) | 1 | |
| 5 | 9512328 Bearing sleeve | 3 | |
| 6 | 9512401 32000476 Bulb 40/238 301 006 | 1 | |
| 7 | 9512393 Lock ring | 1 | |
| 8 | 9513078 Attaching frame LH | 1 | |
| 8 | 9513086 Attaching frame RH | 1 | |
| 8A | 8550824 Clip | 1 | |
| 9 | 4013017 Attaching bracket 1988-1989 | LH,(9564899) | 1 | |
| 9 | 4013025 Attaching bracket 1988-1989 | RH,(9564907) | 1 | |
| 10 | 7975170 7982366 Screw 1987-1989 | 2 | |
| 11 | 7922438 Screw 1988-1989 | 2 | |
| 12 | 9504648 Bushing | 2 | |
| 13 | 7922438 Screw | 4 | |
| 14 | 8029951 Washer | 4 | |
| 15 | 9514811 Protection LHD | 2 |
