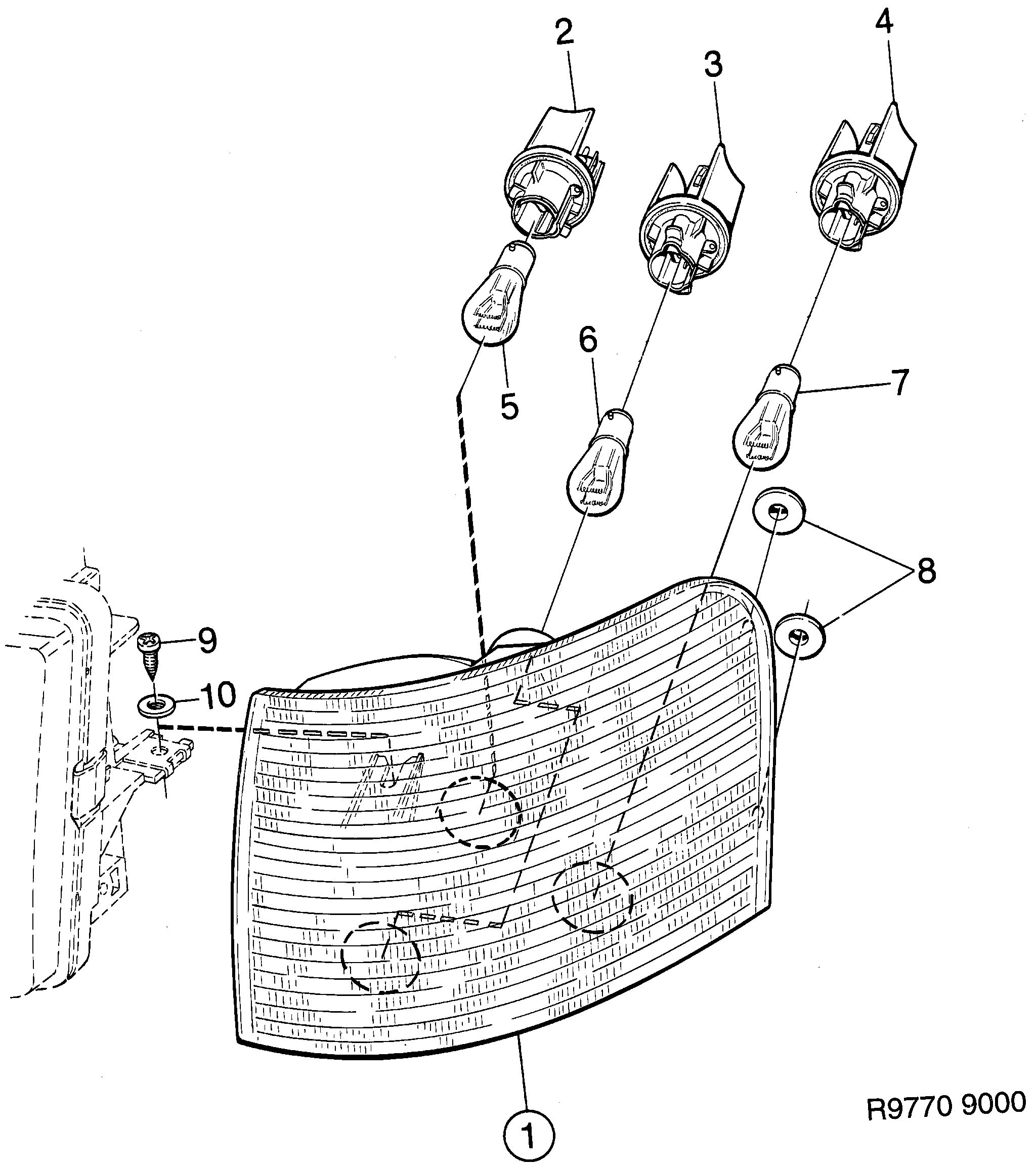

580: Electrical, general - Lighting - Lamp cluster
(1988 - 1989 | 4D) | For 9000 (1988)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9122235 Direction indicator 1988-1988 | LH | 1 | |
| 1 | 9122243 4252268 Direction indicator 1988-1988 | RH | 1 | |
| 1 | 9122250 4252276 Direction indicator LH | 1 | |
| 1 | 9122268 4252284 Direction indicator RH | 1 | |
| 1 | 9523010 Direction indicator 1988-1988 | LH | 1 | |
| 1 | 9523028 Direction indicator 1988-1988 | RH | 1 | |
| 2 | 9122227 Socket, bulb 2-pin | 1 | |
| 2 | 9556994 Socket, bulb 3-pin | 1 | |
| 3 | 9556986 Socket, bulb 2-pin | 1 | |
| 3 | 9556994 Socket, bulb 3-pin | 1 | |
| 4 | 9556986 Socket, bulb 1988-1988 | 2-pin | 1 | |
| 5 | 7154719 93169011 Bulb direction indicator | 40/238 290 001 | 1 | |
| 5 | 8532756 Bulb direction indicator | 40/238 291 009 | 1 | |
| 6 | 7154727 Bulb position lamp | 40/238 254 007 | 1 | |
| 6 | 8532756 Bulb position lamp | 40/238 291 009 | 1 | |
| 7 | 7154719 93169011 Bulb reversing lamp | 40/238 290 001 | 1 | |
| 7 | 8535692 Bulb reversing lamp | 40/238 304 000 | 1 | |
| 8 | 9507708 Bushing | 4 | |
| 9 | 7922438 Screw | 2 | |
| 10 | 8544801 Washer | 2 |
