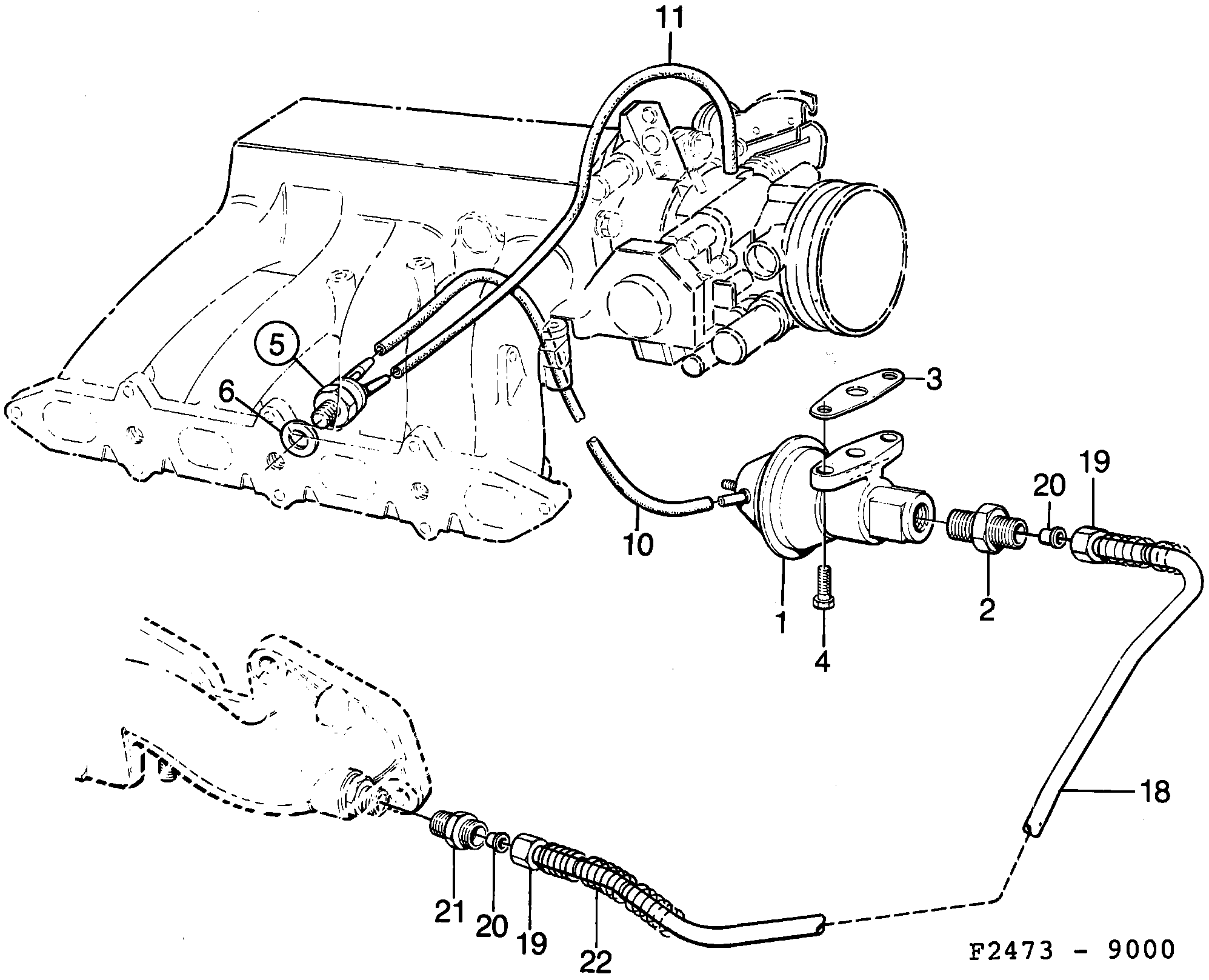

1030: Engine - Intake and exhaust system - EGR system
(1989) | For 9000 (1989)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9350216 Exhaust gas recirculation valve I | Without catalytic converter. | 1 | |
| 1 | 9350224 Exhaust gas recirculation valve TURBO | Without catalytic converter. | 1 | |
| 2 | 7506652 Nipple TURBO, I | 1 | |
| 2 | 7583933 Nipple I | 1 | |
| 3 | 7507973 Gasket | 1 | |
| 4 | 8019929 Screw | 2 | |
| 5 | 7504897 Valve | 1 | |
| 6 | 8124141 92150435 Gasket | 1 | |
| 10 | 9136243 Vacuum hose Sold in 5M lengths | L=215 MM | 1 | |
| 11 | 9136243 Vacuum hose Sold in 5M lengths | L=410 MM | 1 | |
| 18 | 7522519 EGR-pipe TURBO | 1 | |
| 18 | 7569916 EGR-pipe I | 1 | |
| 19 | 8145559 Nut | 2 | |
| 20 | 8132235 Ferrule | 2 | |
| 21 | 8131989 Nipple | 1 | |
| 22 | 7520042 Protection | 1 | |
9136243 Vacuum hose Sold in 5M lengths | L=5000 MM | X |
