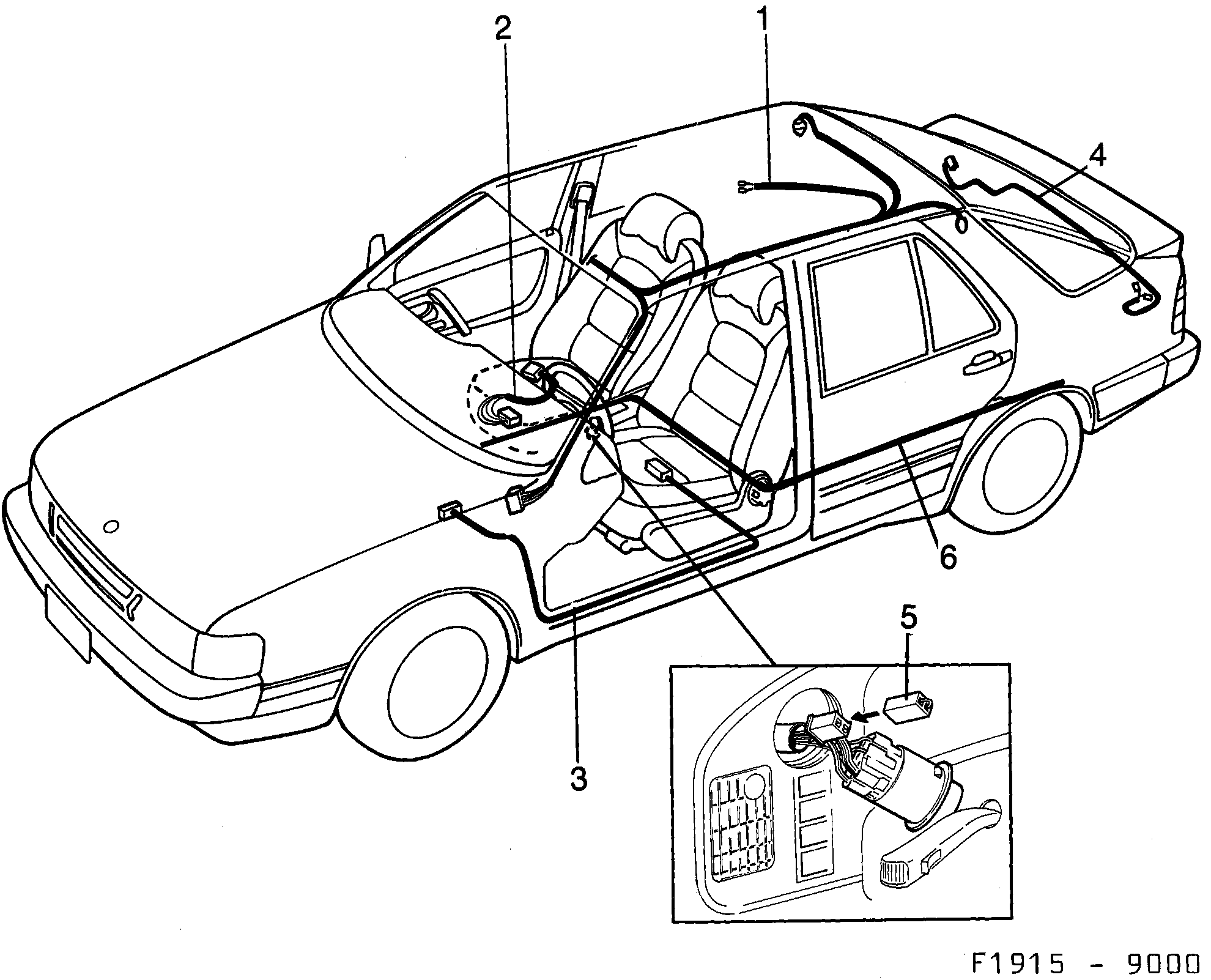

1870: Electrical, general - Wiring and fuses - Compartment
(1989) | For 9000 (1989)
Also valid for SE 1988B.
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9569724 Cable harness interior lighting | 1 | |
| 2 | 9567561 Cable harness Passenger side. front seat | 1 | |
| 3 | 9124553 Cable harness TURBO | APC | 1 | |
| 3 | 9569070 Cable harness TURBO | DI/APC | 1 | |
| 3 | 9123357 Cable harness RHD | DI/APC | 1 | |
| 3 | 9569088 Cable harness I | EZK | 1 | |
| 4 | 9528134 Cable harness LHD | brake light | 1 | |
| 5 | 9569740 Cable harness control lamp | 1 | |
| 6 | 9524778 Cable Red colour code (area 0.25-1.6 MM2). bass | 1 | |
| 6 | 9567272 Cable Red colour code (area 0.25-1.6 MM2). bass | 1 |
