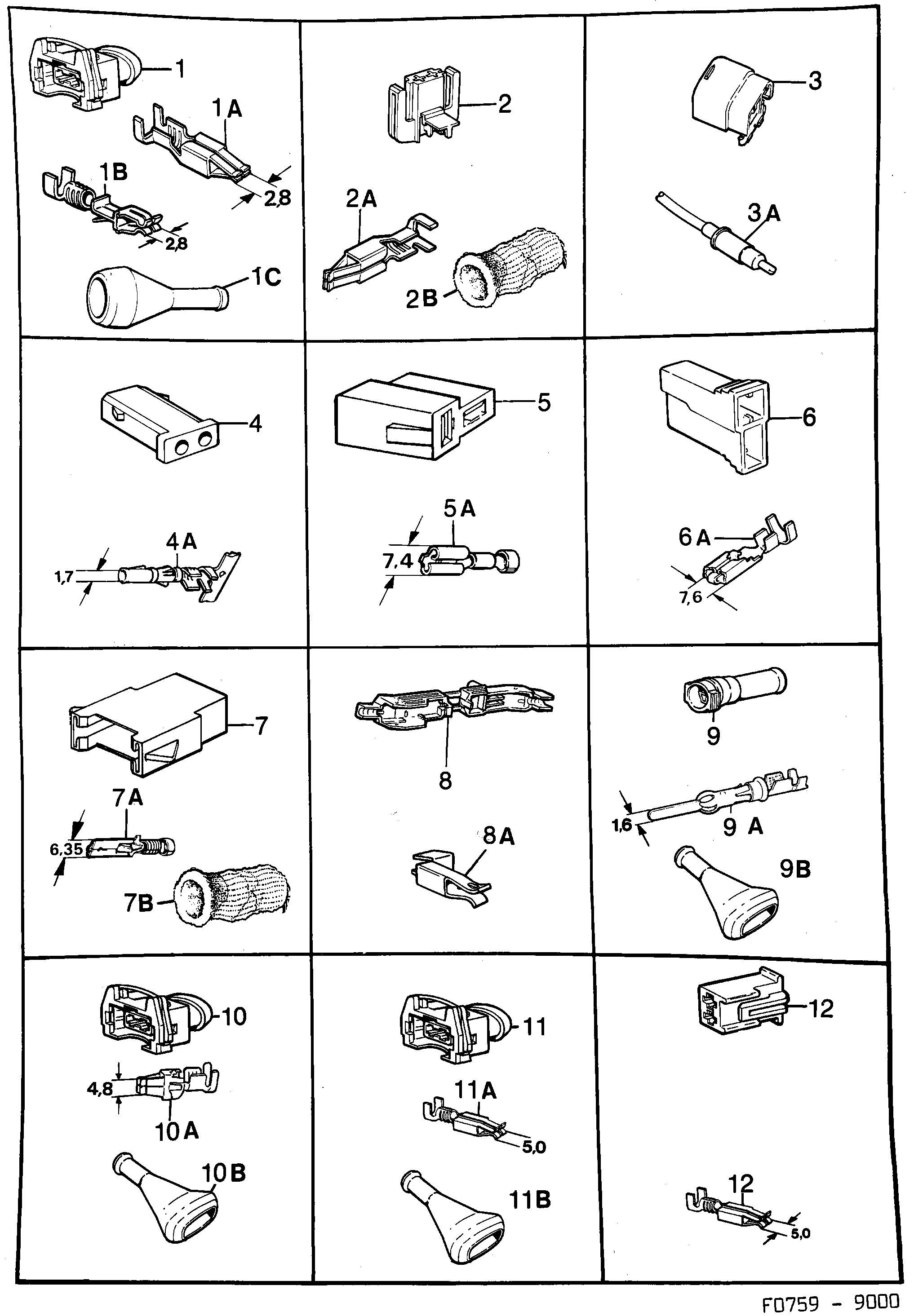

850: Electrical, connector - Wiring and fuses - Contact housing etc

(1989) | For 9000 (1989)

Pos.	Part No.	Description	Usage	Qty
1	8593915 Contact housing 2-pin, female \| THERMO SWITCH	Contact housing	2-pin, female THERMO SWITCH	X
1A	8521593 Cable terminal AREA,0,5-1,5 MM2	Cable terminal	AREA,0,5-1,5 MM2	X
1B	9120668 12789796 Cable terminal AREA,0,75-1,5 MM2	Cable terminal	AREA,0,75-1,5 MM2	X
1C	8571382 Protection	Protection		X
2	9124157 30520661 Contact housing 2-pin, female \| LIGHT MIRROR,ACC,MOTOR CENTRAL LOCK COVER FUEL FILLING,SIDE DIRECT INDICATOR,FAN AC EDU II DCC,SPEED CONT- ROL,DOOR FAN,MOTOR ANTENNA,LIGHT CONTROL BELT TENSIONER,JOINT PIECE GEAR INDICATOR	Contact housing	2-pin, female LIGHT MIRROR,ACC,MOTOR CENTRAL LOCK COVER FUEL FILLING,SIDE DIRECT INDICATOR,FAN AC EDU II DCC,SPEED CONT- ROL,DOOR FAN,MOTOR ANTENNA,LIGHT CONTROL BELT TENSIONER,JOINT PIECE GEAR INDICATOR	X
2A	9120791 30520557 Cable terminal AREA,2,5-4,0 MM2	Cable terminal	AREA,2,5-4,0 MM2	X
2B	9568775 Insulation	Insulation		X
3	9501685 Contact housing 2-pin, male \| JOINT PIECE,ENGINE COMPARTMENT LIGHT, WARNING LAMP ABS,OIL LEVEL,GEAR INDICATOR	Contact housing	2-pin, male JOINT PIECE,ENGINE COMPARTMENT LIGHT, WARNING LAMP ABS,OIL LEVEL,GEAR INDICATOR	X
3A	7874506 Connection	Connection		X
4	9506643 Contact housing 2-pin, female \| MIXING TEMP ACC	Contact housing	2-pin, female MIXING TEMP ACC	X
4A	8587552 Cable terminal AREA 0,5-1,5 MM2	Cable terminal	AREA 0,5-1,5 MM2	X
5	8558538 Contact housing 2-pin, female \| CIGARETTE LIGHTER ELECTRONIC UNIT BELT TENSIONER	Contact housing	2-pin, female CIGARETTE LIGHTER ELECTRONIC UNIT BELT TENSIONER	X
5A	8582454 Cable terminal AREA 0,5-1,5 MM2	Cable terminal	AREA 0,5-1,5 MM2	X
5A	7155153 Cable terminal AREA 0,8-2,1 MM2	Cable terminal	AREA 0,8-2,1 MM2	X
6	8574949 12790282 Contact housing 2-pin, female \| SPEED SENSOR	Contact housing	2-pin, female SPEED SENSOR	X
6A	8541203 Cable terminal AREA 0,5-1,5 MM2	Cable terminal	AREA 0,5-1,5 MM2	X
7	9502998 Contact housing 2-pin, male \| EDU II DCC,JOINT PIECE GEAR INDICATOR,SWITCH DOORS	Contact housing	2-pin, male EDU II DCC,JOINT PIECE GEAR INDICATOR,SWITCH DOORS	X
7A	8593089 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	X
7A	7155062 Cable terminal AREA 0,8-2,5 MM2	Cable terminal	AREA 0,8-2,5 MM2	X
7B	9568775 Insulation	Insulation		X
9	9519406 Contact housing 2-pin, male \| SENSOR ABS	Contact housing	2-pin, male SENSOR ABS	X
9A	9519398 Cable terminal AREA,0,8-1,5 MM2	Cable terminal	AREA,0,8-1,5 MM2	X
9B	8579955 Protection	Protection		X
10	9519422 Contact housing 2-pin, female \| PUMP ABS	Contact housing	2-pin, female PUMP ABS	X
10A	9120791 30520557 Cable terminal AREA,2,5-4,0 MM2	Cable terminal	AREA,2,5-4,0 MM2	X
10B	8579955 Protection	Protection		X
11	8597064 Contact housing 2-pin, female \| IDLE COMPENSATOR	Contact housing	2-pin, female IDLE COMPENSATOR	X
11A	9120668 12789796 Cable terminal AREA,0,75-1,5 MM2	Cable terminal	AREA,0,75-1,5 MM2	X
11B	8571382 Protection	Protection		X
12	9123548 12790106 Contact housing 2-pin, female \| SIGNAL,HIGH MOUNTED STOP LIGHT,CONTROL LAMP LIGHT,THEFT ALARM JOINT PIECE	Contact housing	2-pin, female SIGNAL,HIGH MOUNTED STOP LIGHT,CONTROL LAMP LIGHT,THEFT ALARM JOINT PIECE	X
12A	9120668 12789796 Cable terminal AREA,0,75-1,5 MM2	Cable terminal	AREA,0,75-1,5 MM2	X
