Question 1

Où trouver le schéma de Other interior equipment pour Saab 9000 ?

Accepted Answer

Accédez au schéma éclaté officiel et à la liste complète des pièces pour la section Other interior equipment de votre Saab 9000 1989. Notre outil interactif permet de visualiser chaque composant en détail et d'identifier instantanément sa référence Saab d'origine pour un entretien certifié.

Question 2

Les numéros de pièces Saab sont-ils à jour ?

Accepted Answer

Oui, notre explorateur inclut l'intégralité des références d'origine Saab (OEM) ainsi que les codes de remplacement NLS-USE (No Longer Supplied - Use). Cela vous permet de suivre l'évolution des pièces officiellement remplacées et d'assurer une compatibilité totale avec les stocks actuels de pièces de rechange.

Question 3

Quelles sont les motorisations Saab compatibles avec la section 1270 ?

Accepted Answer

La section 1270 (Other interior equipment) est spécifiquement documentée pour être compatible avec les motorisations indiquées dans la liste technique. Vous pouvez vérifier la compatibilité exacte en utilisant notre filtre de recherche par numéro de châssis (VIN).

Pos.	Part No.	Description	Usage	Qty
	Upholstery
	Upholstery
1	9592155 4131751 Seat frame	Seat frame		1
1A	9695768 Electric motor	Electric motor		1
1B	9579715 Drive shaft Vertical	Drive shaft	Vertical	1
1B	9542317 Drive shaft Horizontal	Drive shaft	Horizontal	1
1C	9542309 4126355 Cover	Cover		2
2	4032934 Wire matting	Wire matting		1
3	9697525 Wire matting	Wire matting		1
4	9673146 Spring	Spring		6
5	9673435 Spring	Spring		2
6	4033486 Rubber spacer	Rubber spacer		2
7	7971872 Tensioning band	Tensioning band		2
8	9759069 Spring	Spring		4
9	9759077 Spring	Spring		2
12	9770918 Strip	Strip		1
13	9579293 Spring	Spring		2
14	9770942 4531059 Brace	Brace		1
15	9770926 4531059 Brace	Brace		1
16	9770934 Hook	Hook		1
17	7974330 Screw	Screw		4
18	9778895 Brace	Brace		2
19	9617325 Control LH	Control	LH	1
19	9617333 Control RH	Control	RH	1
20	7975402 Rivet	Rivet		1
21	9864349 Bracket	Bracket		1
22	9671835 Protecting moulding	Protecting moulding		2
23	9696618 4416525 Seat cushion For cars with upholstery ''HORIZON''	Seat cushion	For cars with upholstery ''HORIZON''	1
23	9677014 Seat cushion For cars with upholstery ''CONTOUR''	Seat cushion	For cars with upholstery ''CONTOUR''	1
24	9696600 30545238 Backrest cushion For cars with upholstery ''HORIZON''	Backrest cushion	For cars with upholstery ''HORIZON''	1
24	9758715 Backrest cushion For cars with upholstery ''CONTOUR''	Backrest cushion	For cars with upholstery ''CONTOUR''	1
26	7576580 Screw	Screw		4
27	9547381 Washer	Washer		2
28	Upholstery
29	4036299 Microswitch	Microswitch		1
30	9785015 Cover washer	Cover washer		1
31	9763632 Steering wheel	Steering wheel		1
32	8029944 Washer	Washer		1
33	8059396 Screw	Screw		1
34	9763624 Cover	Cover		1
35	7922354 92153219 Screw	Screw		3
36	9564980 Switch LH	Switch	LH	1
36	9566993 Switch RH	Switch	RH	1

Pos.	Part No.	Description	Usage	Qty
	Upholstery
	Upholstery
1	9592155 4131751 Seat frame	Seat frame		1
1A	9695768 Electric motor	Electric motor		1
1B	9579715 Drive shaft Vertical	Drive shaft	Vertical	1
1B	9542317 Drive shaft Horizontal	Drive shaft	Horizontal	1
1C	9542309 4126355 Cover	Cover		2
2	4032934 Wire matting	Wire matting		1
3	9697525 Wire matting	Wire matting		1
4	9673146 Spring	Spring		6
5	9673435 Spring	Spring		2
6	4033486 Rubber spacer	Rubber spacer		2
7	7971872 Tensioning band	Tensioning band		2
8	9759069 Spring	Spring		4
9	9759077 Spring	Spring		2
12	9770918 Strip	Strip		1
13	9579293 Spring	Spring		2
14	9770942 4531059 Brace	Brace		1
15	9770926 4531059 Brace	Brace		1
16	9770934 Hook	Hook		1
17	7974330 Screw	Screw		4
18	9778895 Brace	Brace		2
19	9617325 Control LH	Control	LH	1
19	9617333 Control RH	Control	RH	1
20	7975402 Rivet	Rivet		1
21	9864349 Bracket	Bracket		1
22	9671835 Protecting moulding	Protecting moulding		2
23	9696618 4416525 Seat cushion For cars with upholstery ''HORIZON''	Seat cushion	For cars with upholstery ''HORIZON''	1
23	9677014 Seat cushion For cars with upholstery ''CONTOUR''	Seat cushion	For cars with upholstery ''CONTOUR''	1
24	9696600 30545238 Backrest cushion For cars with upholstery ''HORIZON''	Backrest cushion	For cars with upholstery ''HORIZON''	1
24	9758715 Backrest cushion For cars with upholstery ''CONTOUR''	Backrest cushion	For cars with upholstery ''CONTOUR''	1
26	7576580 Screw	Screw		4
27	9547381 Washer	Washer		2
28	Upholstery
29	4036299 Microswitch	Microswitch		1
30	9785015 Cover washer	Cover washer		1
31	9763632 Steering wheel	Steering wheel		1
32	8029944 Washer	Washer		1
33	8059396 Screw	Screw		1
34	9763624 Cover	Cover		1
35	7922354 92153219 Screw	Screw		3
36	9564980 Switch LH	Switch	LH	1
36	9566993 Switch RH	Switch	RH	1

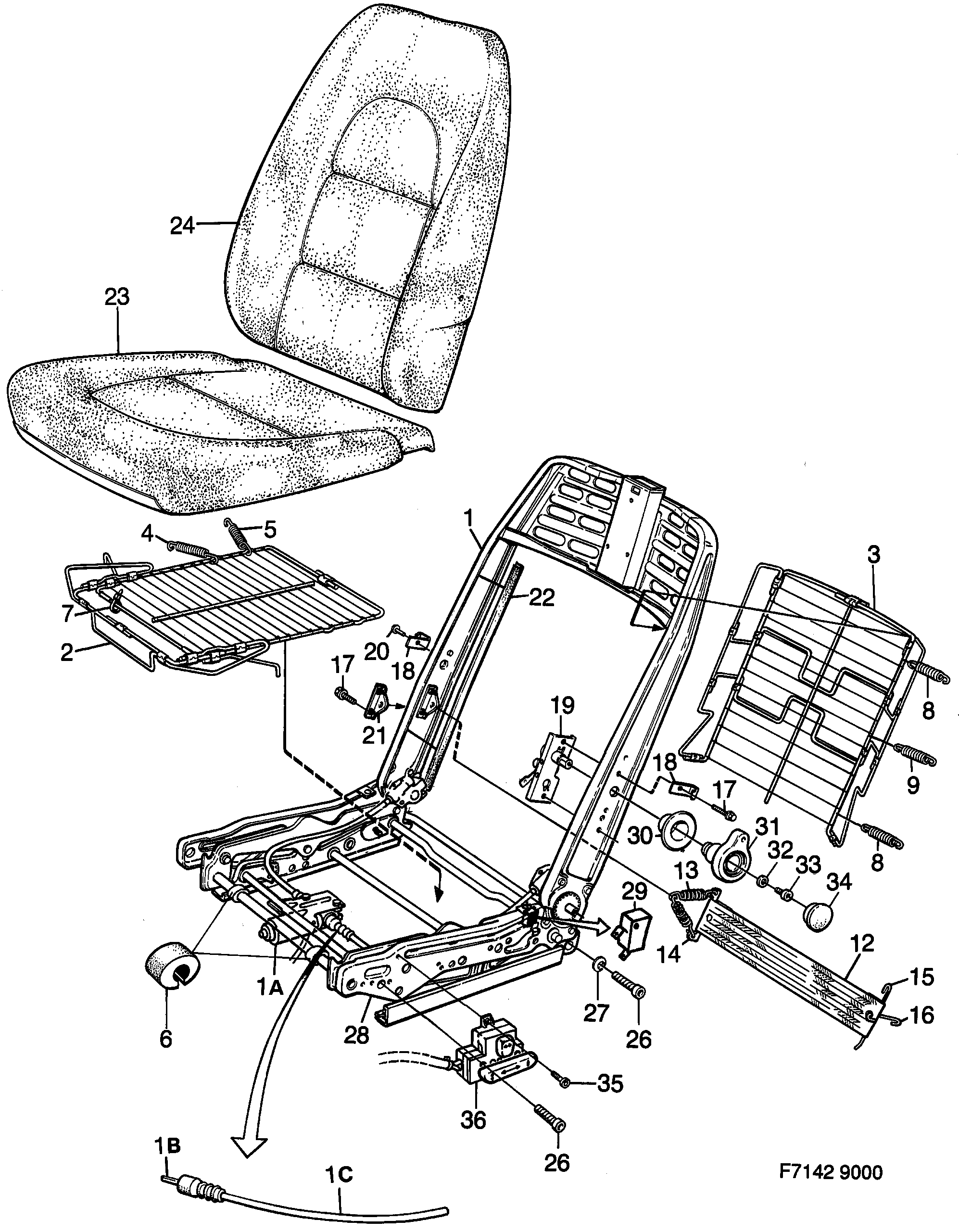

1270: Car body, internal - Other interior equipment - Front seats Part 2 - Electrically adjustable

1270: Car body, internal - Other interior equipment - Front seats Part 2 - Electrically adjustable
