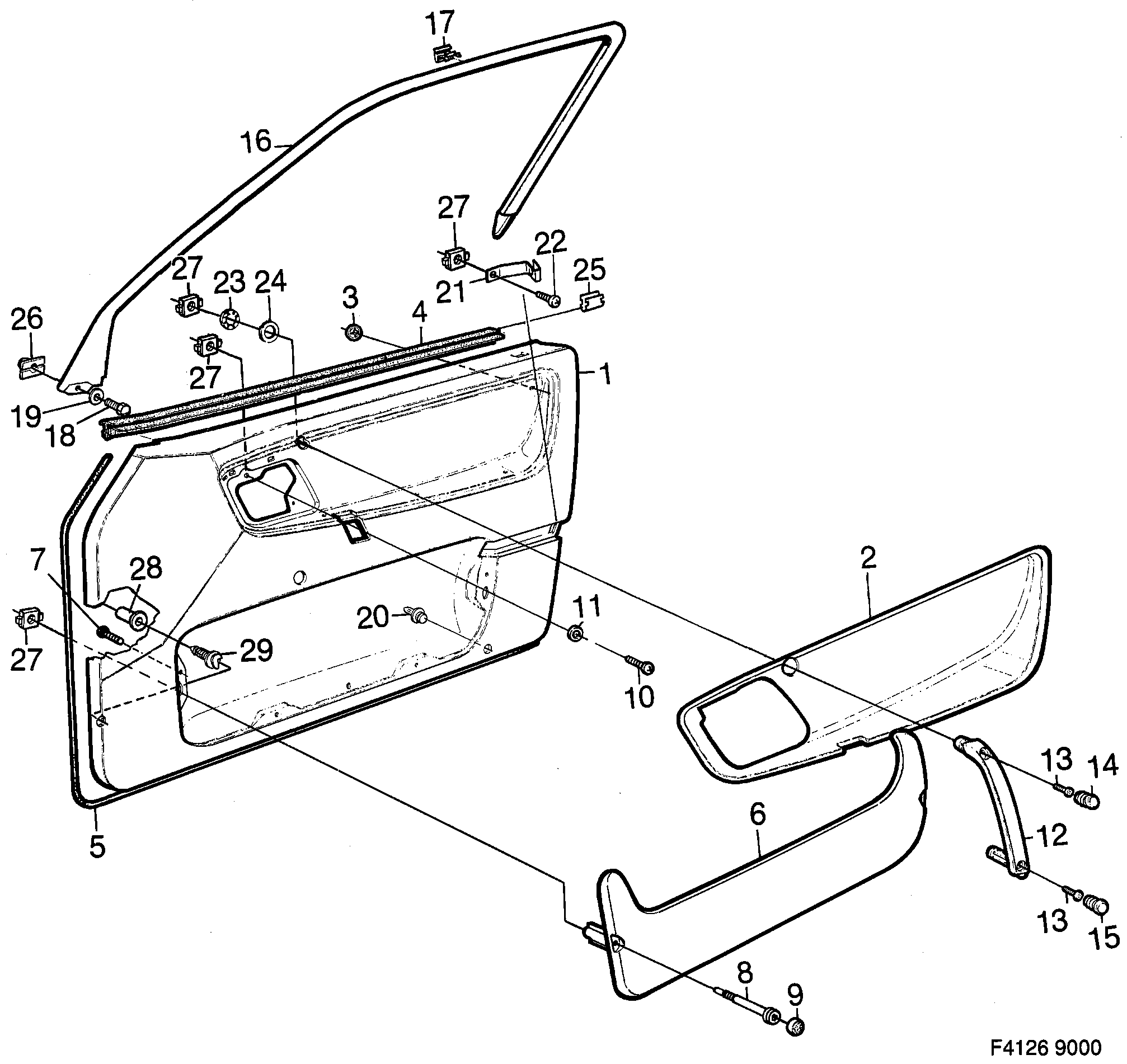

790: Car body, internal - Upholstery - Door trim - Front door
(1989) | For 9000 (1989)
Also valid for SE 1988B.
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9677444 Door trim Red | LH | 1 | |
| 1 | 9677436 Door trim Red | RH | 1 | |
| 1 | 9677428 Door trim Red For cars with manual window lifts | LH | 1 | |
| 1 | 9677410 Door trim Red For cars with manual window lifts | RH | 1 | |
| 2 | 9657529 Arm rest Red | LH | 1 | |
| 2 | 9657511 Arm rest Red | RH | 1 | |
| 3 | 9695081 Washer | 7 | |
| 4 | 9660986 Sealing strip LH | 1 | |
| 4 | 9660838 Sealing strip RH | 1 | |
| 5 | 9572363 Strip Red | 2 | |
| 6 | 9677501 Pocket Red | LH | 1 | |
| 6 | 9677493 Pocket Red | RH | 1 | |
| 1 | 9657487 Door trim Grey. | LH | 1 | |
| 1 | 9657479 Door trim Grey. | RH | 1 | |
| 1 | 9891540 Door trim Grey. For cars with manual window lifts | LH | 1 | |
| 1 | 9891532 Door trim Grey. For cars with manual window lifts | RH | 1 | |
| 2 | 9657586 Arm rest Grey. | LH | 1 | |
| 2 | 9657578 Arm rest Grey. | RH | 1 | |
| 3 | 9695081 Washer | 7 | |
| 4 | 9660986 Sealing strip LH | 1 | |
| 4 | 9660838 Sealing strip RH | 1 | |
| 5 | 9895699 Strip Grey. | 2 | |
| 6 | 9658139 Pocket Grey. | LH | 1 | |
| 6 | 9658147 Pocket Grey. | RH | 1 | |
| 1 | 9677733 Door trim Blue | LH | 1 | |
| 1 | 9677725 Door trim Blue | RH | 1 | |
| 1 | 9677717 Door trim Blue For cars with manual window lifts | LH | 1 | |
| 1 | 9677709 Door trim Blue For cars with manual window lifts | RH | 1 | |
| 2 | 9677808 Arm rest Blue | LH | 1 | |
| 2 | 9677790 Arm rest Blue | RH | 1 | |
| 3 | 9695081 Washer | 7 | |
| 4 | 9660986 Sealing strip LH | 1 | |
| 4 | 9660838 Sealing strip RH | 1 | |
| 5 | 9677766 Strip Blue | 2 | |
| 6 | 9677865 Pocket Blue | LH | 1 | |
| 6 | 9677857 Pocket Blue | RH | 1 | |
| 1 | 9582040 Door trim Yellow. | LH | 1 | |
| 1 | 9582149 Door trim Yellow. | RH | 1 | |
| 1 | 9582032 Door trim Yellow. For cars with manual window lifts | LH | 1 | |
| 1 | 9582024 Door trim Yellow. For cars with manual window lifts | RH | 1 | |
| 2 | 9582081 Arm rest Yellow. | LH | 1 | |
| 2 | 9582180 Arm rest Yellow. | RH | 1 | |
| 3 | 9695081 Washer | 7 | |
| 4 | 9660986 Sealing strip LH | 1 | |
| 4 | 9660838 Sealing strip RH | 1 | |
| 5 | 9582099 Strip Yellow. | 2 | |
| 6 | 9582065 Pocket Yellow. | LH | 1 | |
| 6 | 9582164 Pocket Yellow. | RH | 1 | |
| 7 | 7971393 Screw | 8 | |
| 8 | 9780156 Screw | 4 | |
| 9 | 9777160 Cover Red | 4 | |
| 9 | 9799875 Cover Grey. | 4 | |
| 9 | 9675612 Cover Blue | 4 | |
| 9 | 9582313 Cover Yellow. | 4 | |
| 10 | 7399264 Screw | 2 | |
| 11 | 9656398 Washer | 2 | |
| 12 | 9776410 Handle Red | LH | 1 | |
| 12 | 9776402 Handle Red | RH | 1 | |
| 12 | 9890112 Handle Grey. | LH | 1 | |
| 12 | 9890104 Handle Grey. | RH | 1 | |
| 12 | 9675588 Handle Blue | LH | 1 | |
| 12 | 9675570 Handle Blue | RH | 1 | |
| 12 | 9582057 Handle Yellow. | LH | 1 | |
| 12 | 9582156 Handle Yellow. | RH | 1 | |
| 13 | 7399264 Screw (8059396) | 4 | |
| 14 | 9776477 Cover washer Red | 2 | |
| 14 | 9890146 Cover washer Grey. | 2 | |
| 14 | 9675596 Cover washer Blue | 2 | |
| 14 | 9582297 Cover washer Yellow. | 2 | |
| 15 | 9776519 Cover washer Red | 2 | |
| 15 | 9890153 Cover washer Grey. | 2 | |
| 15 | 9675604 Cover washer Blue | 2 | |
| 15 | 9582305 Cover washer Yellow. | 2 | |
| 16 | 9694688 4268223 Upholstery LH | 1 | |
| 16 | 9694670 Upholstery RH | 1 | |
| 17 | 9660143 Clamp | 24 | |
| 18 | 7972896 8073090 Screw | 2 | |
| 19 | 9660077 Washer | 2 | |
| 20 | 9796939 Clamp | 2 | |
| 21 | 9796616 Clamp | 2 | |
| 22 | 7399264 Screw | 4 | |
| 23 | 9797200 Washer | 2 | |
| 24 | 9891391 5126834 Washer (9671389) | 2 | |
| 25 | 8412215 Clip | 10 | |
| 26 | 9671033 Clamp | 2 | |
| 27 | 7974231 Cage nut | X | |
| 28 | 9545906 Sleeve | 2 | |
| 29 | 9545898 Upholstery clip | 2 |
