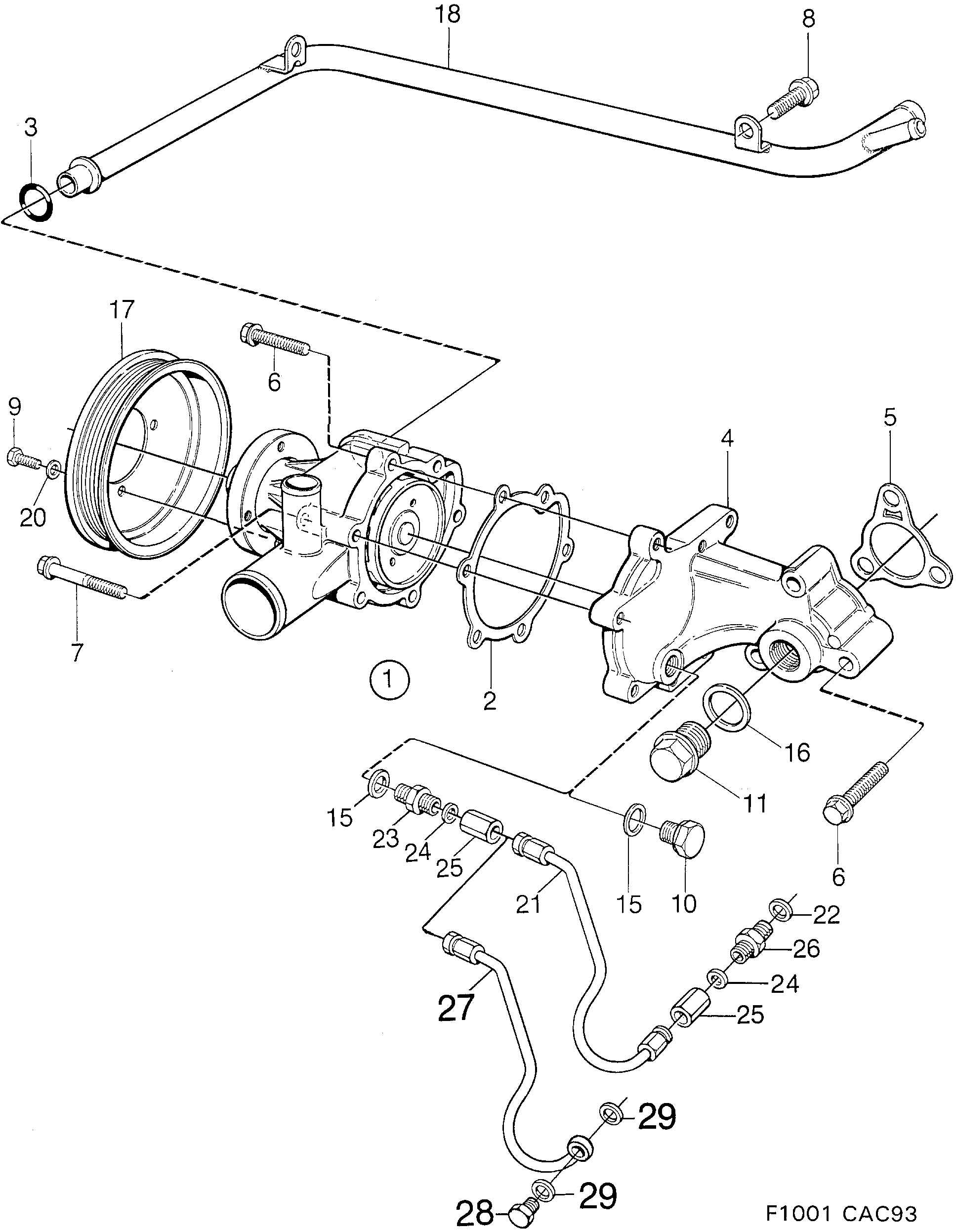

2000: Engine - Cooling system - Coolant pump
(1990 - 1993) | For 9000 (1990)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8817918 9321670 Coolant pump 1990-1990 | Also available as exchange unit. | 1 | |
| 2 | 7566581 Gasket | 1 | |
| 3 | 7972698 9146598 O-ring | 1 | |
| 4 | 7507247 Bracket | 1 | |
| 5 | 7523897 Gasket | 1 | |
| 6 | 8125197 Screw | 6 | |
| 7 | 8125239 Screw | 5 | |
| 8 | 8125148 Screw | 1 | |
| 9 | 8019903 7985930 Screw | 4 | |
| 10 | 8123721 7563042 Plug | 1 | |
| 11 | 8123788 Plug | 1 | |
| 15 | 8124141 92150435 Gasket | 1 | |
| 16 | 8124208 9116856 Gasket | 1 | |
| 17 | 9359985 Pulley | 1 | |
| 18 | 7585565 Tube | 1 | |
| 20 | 8073223 Washer 1990-1992 | 4 | |
| 21 | 7582299 Tube 1990-1990 | TURBO | TE05 | 1 | |
| 22 | 8124158 Gasket 1990-1990 | TURBO | TE05 | 2 | |
| 23 | 7587785 Nipple 1990-1990 | TURBO | 1 | |
| 24 | 8132227 Ferrule 1990-1990 | TURBO | TE05 | 2 | |
| 24 | 8132227 Ferrule TURBO | T25 | 1 | |
| 25 | 8145542 Nut 1990-1990 | TURBO | TE05 | 2 | |
| 25 | 8145542 Nut TURBO | T25 | 1 | |
| 26 | 7584790 Nipple 1990-1990 | TURBO | TE05 | 1 | |
| 27 | 9114463 9128018 Tube 1990-1990 | TURBO | T25 | 1 | |
| 28 | 8123903 92150977 Banjo screw TURBO | T25 | 1 | |
| 29 | 8124141 92150435 Gasket TURBO | T25 | 2 |
